Запчасти Case IH PUMA 210 (1.87.4[02]) - (VAR.497-575) DYNAMIC FRONT FENDERS - FENDERS AND BRACKETS (08) - SHEET METAL

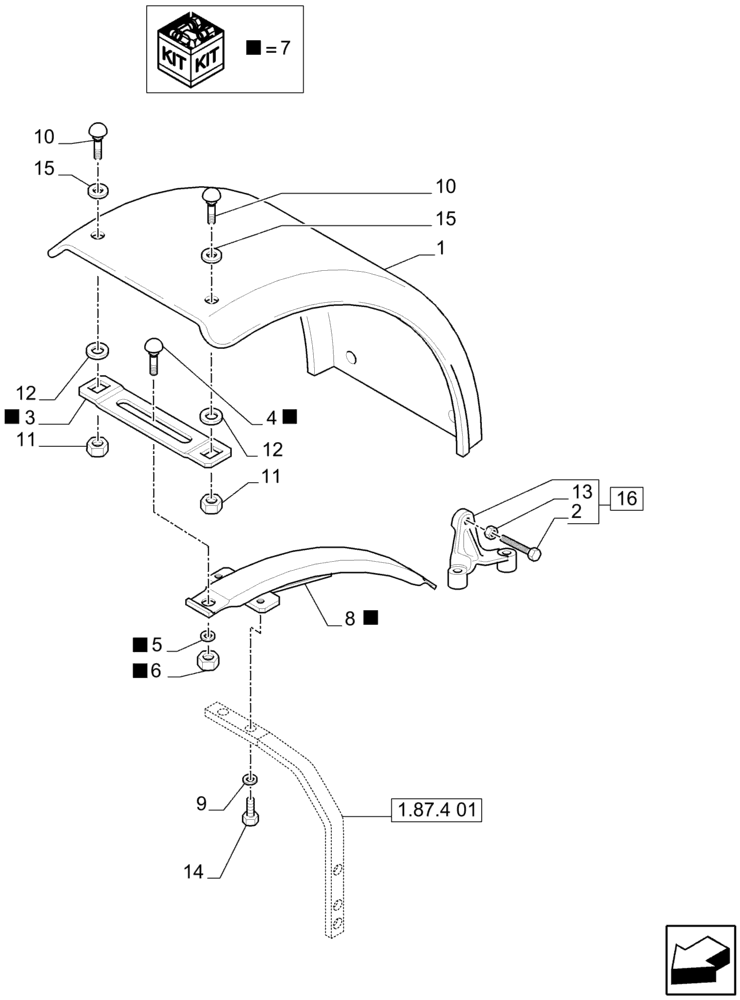

Схема запчастей Case IH PUMA 210 - (1.87.4[02]) - (VAR.497-575) DYNAMIC FRONT FENDERS - FENDERS AND BRACKETS (08) - SHEET METAL
4
12
9
7
10
15
12
7
16
6
7
2
1
14
13
10
7
1.87.4 01
15
7
7
8
3
7
11
5
11

Артикул

Название

Примечание

Количество

1

87579461

MUD DEFLECTOR

620MM

2шт.

With Dynamic front Fenders (Width 620MM), VAR.497

1шт.

1

87579460

MUD DEFLECTOR

480MM

2шт.

With Dynamic front Fenders (Narrow 480MM), VAR.575

1шт.

2

15215021

BOLT,Hex, M10 x 1.5 x 70mm, Cl 8.8, Full Thd

M10 x 708.8

1шт.

3

82021040

SUPPORT

2шт.

4

82021059

BOLT,Hex, M10 x 1.25 x 31mm

M10 x 1.25 x 25

2шт.

5

12626204

WASHER,10.2mm ID x 25mm OD x 3mm Thk

2шт.

6

12577211

LOCK NUT,M10 x 1.5mm Pitch, 12.30mm High, Cl 8, ZND

2шт.

7

87745844

SUPPORT

ASSY

2шт.

8

87747746

SUPPORT ASSY.

1шт.

9

14496701

WASHER,13.00mm ID x 24.00mm OD x 2.50mm, CST, ZND

4шт.

10

13183201

CARRIAGE BOLT,Sq Nk, M10 x 1.5 x 30mm, Cl 4.8

M10x30

8шт.

11

12577211

LOCK NUT,M10 x 1.5mm Pitch, 12.30mm High, Cl 8, ZND

8шт.

12

12626204

WASHER,10.2mm ID x 25mm OD x 3mm Thk

8шт.

13

11701711

NUT,Hex, M10, Cl 8, ZND

M10

1шт.

14

15540721

SCREW,Hex, M12 x 1.25 x 45mm, Cl 8.8, Full Thd

8шт.

15

84145763

WASHER,14mm ID x 41.3mm OD x 2.64mm Thk

7/16 x 1.62 x 10

8шт.

16

87475464

STOP

RH

1шт.

16

87475467

STOP

LH

1шт.

Выбрано товаров: 20
