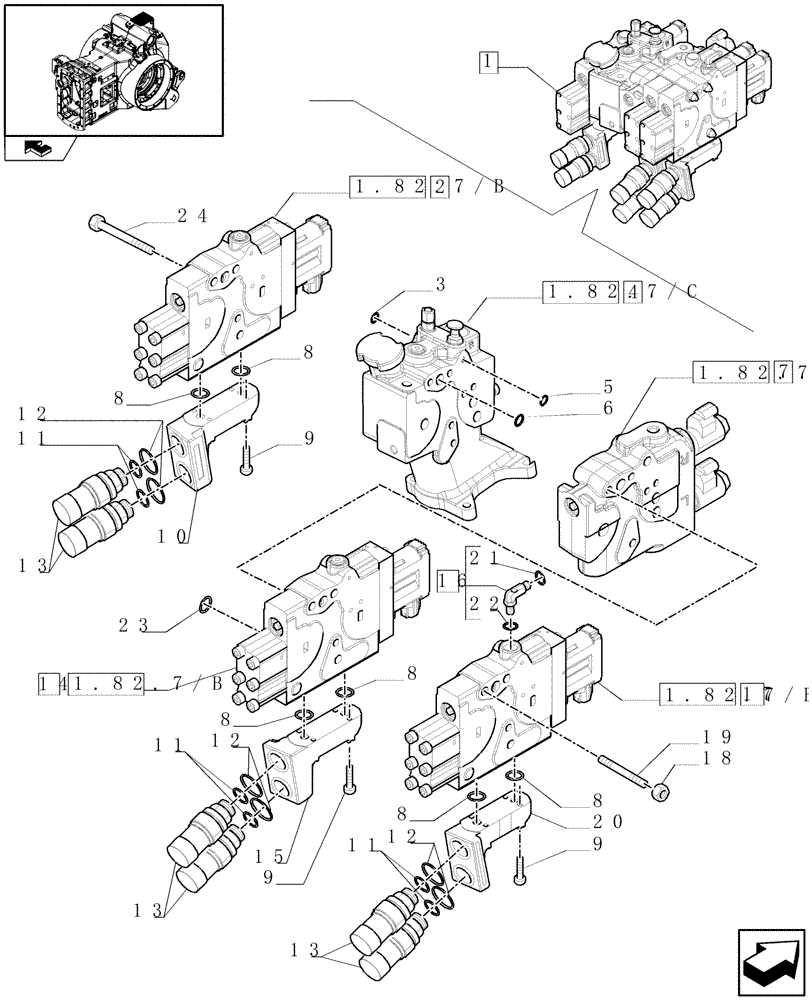

Запчасти Case IH PUMA 210 (1.82.7/ A) - REAR ELECTRONIC REMOTE CONTROL VALVES WITH 3 ELEMENTS - BREAKDOWN (07) - HYDRAULIC SYSTEM

1

87582245

CONTROL VALVE

1шт.

2

87330318

HYD VALVE SECTION

Left, ASSY

1шт.

2

87330318R

REMAN-HYD VALVE

Left, ASSY

1шт.

2

87330318C

CORE-VALVE HYD

Return Number

1шт.

3

87635380

O-RING,2.62mm Thk x 12.37mm ID, -112, 80 Duro

3шт.

4

87555868

MANIFOLD VALVE

ASSY

1шт.

5

87635379

O-RING,2.62mm Thk x 9.19mm ID, -110, 80 Duro

9шт.

6

87635382

O-RING,2.62mm Thk x 20.29mm ID, -117, 80 Duro

13шт.

7

87331245

VALVE SECTION

Hitch, ASSY

1шт.

7

87331245R

REMAN-HYD VALVE

Hitch, ASSY

1шт.

7

87331245C

CORE-VALVE HYD

Return Number

1шт.

8

87635381

O-RING,2.62mm Thk x 15.54mm ID, -114, 80 Duro

6шт.

9

864-6045

HEX SOC SCREW,M6 x 45mm, Cl 8.8

12шт.

10

87381983

HYDRAULIC MANIFOLD

is faster 4bm12, ASSY, Incl.13

1шт.

11

87382012

SEAL KIT

6шт.

12

14438085

O-RING,19.3mm ID x 2.4mm

6шт.

13

87381944

COUPLING, QUICK, FEM

ASSY, Incl.11, 12

6шт.

14

87325955

HYD VALVE SECTION

Main, ASSY

1шт.

14

87325955R

REMAN-HYD VALVE

Main, ASSY

1шт.

14

87325955C

CORE-VALVE HYD

Return Number

1шт.

15

87381982

HYDRAULIC MANIFOLD

is faster 4bm11, ASSY, Incl.13

1шт.

16

84127666

ELBOW

1шт.

17

87330385

HYD VALVE SECTION

Right,ASSY

1шт.

17

87330385R

REMAN-HYD VALVE

Right,ASSY

1шт.

17

87330385C

CORE-VALVE HYD

Return Number

1шт.

18

829-1312

NUT,M12 x 1.75, Cl 10

3шт.

19

84268953

STUD,M12 x 1.75 x 205mm L

M12 x 1.75

3шт.

20

87381981

HYDRAULIC MANIFOLD

is faster 4bm10, ASSY, Incl.13

1шт.

21

5185509

O-RING,1.78mm Thk x 7.66mm ID, 85 Duro

1шт.

22

14437685

O-RING,9.30mm ID x 2.40mm

1шт.

23

87635376

O-RING,2.62mm Thk x 3.63mm ID, -105, 80 Duro

4шт.

24

828-12065

BOLT,Hex, M12 x 1.75 x 65mm, Cl 10.9

3шт.
