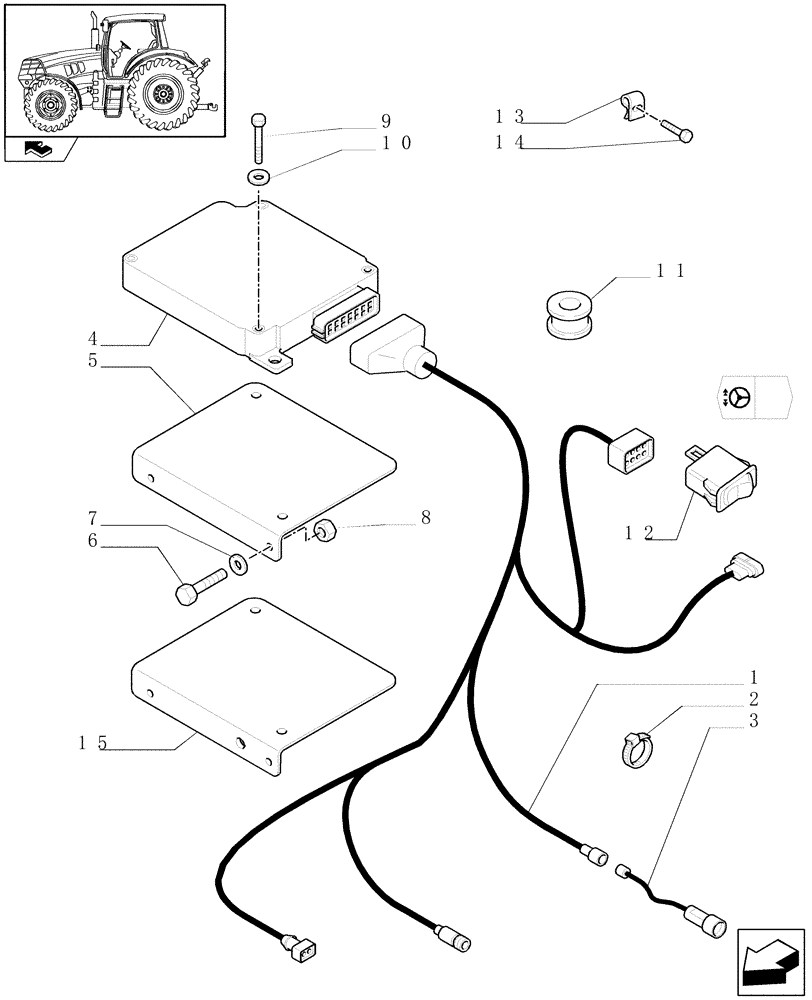

Запчасти Case IH PUMA 210 (1.75.4/02) - (VAR.187-636) FAST STEERING - AUXILIARY CABLES (06) - ELECTRICAL SYSTEMS

1

87475522

WIRE HARNESS

FAST STEER, Serial Range: -C6559

1шт.

1

84228359

HARNESS

FAST STEER, Start Serial: D6559

1шт.

2

82001040

CABLE TIE,.19" x 11.5"

CABLE STRAP

7шт.

3

87738133

SENSOR

1шт.

4

87563011

MODULE

1шт.

5

87325630

SUPPORT

, Serial Range: -C6491

1шт.

6

10902221

BOLT,Hex, M6 x 16mm, CL 8.8

2шт.

7

14496301

WASHER,5.3mm ID x 10mm OD x 1mm Thk

2шт.

8

14084111

LOCK NUT,M5 x .8, Flg

2шт.

9

10977821

BOLT,M5 x 19.65mm OAL, Cl 8.8

2шт.

10

14496401

WASHER,M6.4 x 12.00mm x 1.60mm

2шт.

11

81862745

GROMMET,10mm x 38 x 28

1шт.

12

87694321

SWITCH ASSY

1шт.

13

14371771

SPRING NUT,M6, U, 24.3mm long

2шт.

14

10902124

SCREW,Hex, M6 x 14mm, Cl 8.8

2шт.

15

84237749

SUPPORT

, Start Serial: D6491

1шт.
