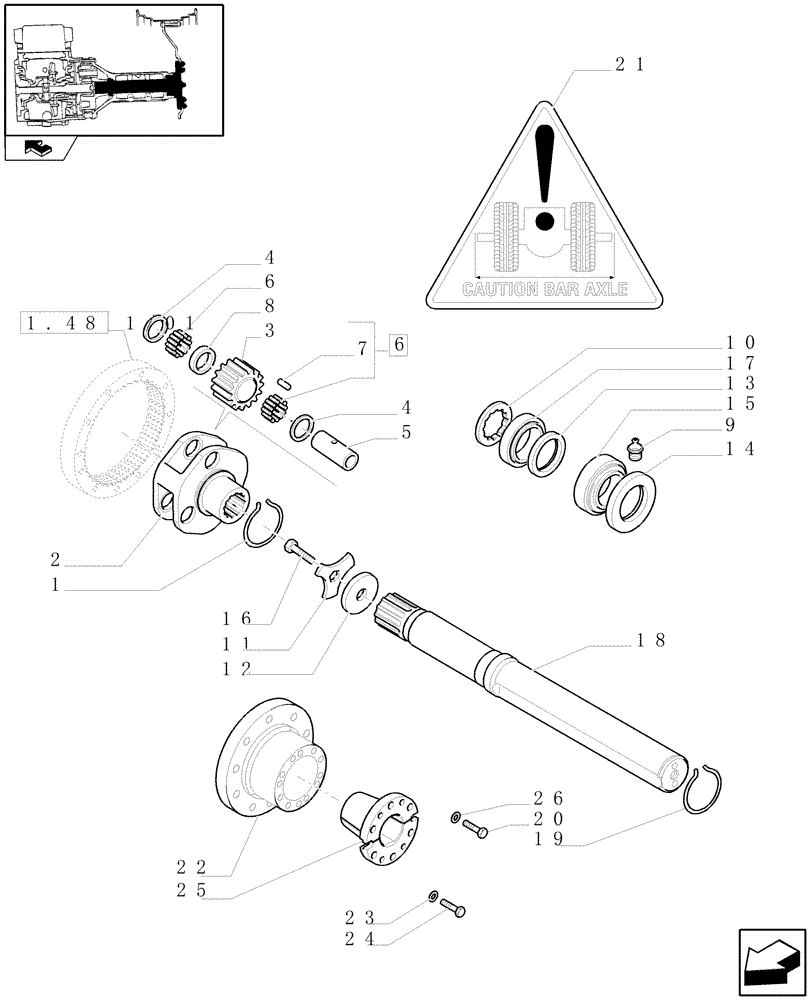

Запчасти Case IH PUMA 210 (1.48.1/03) - (VAR.431-431/1-437-437/1) BAR AXLE 98" AND 112" FINAL DRIVE, GEARS AND SHAFTS (05) - REAR AXLE

1

5136132

CIRCLIP,4mm Thk

L = 268MM

2шт.

2

87307356

PINION CARRIER

2шт.

3

87307351

IDLER PINION

6шт.

4

5136128

THRUST WASHER,62.5mm ID x 108mm OD x 1mm Thk

12шт.

5

87307359

PIN,62.4mm OD x 149.5mm L

6шт.

6

5136131

ROLLER BEARING,62.4mm ID x 76.4mm OD x 32mm W

6шт.

7

5116733

NEEDLE ROLLER,62.4mm ID x 76.4mm OD x 0mm W

1шт.

8

87307350

SPACER,64.5mm ID x 76.3mm OD x 19mm L

6шт.

9

13407211

LUBE NIPPLE,M10 x 1

2шт.

10

87307355

THRUST WASHER,83mm ID x 117mm OD x 5mm Thk

2шт.

11

5124397

LOCKING PLATE

2шт.

12

87307358

LOCK WASHER

2шт.

13

5154451

SEAL,95mm ID x 120mm OD x 12mm Thk

2шт.

14

87307349

SEAL,120mm ID x 152mm OD x 16mm Thk

2шт.

15

87307342

TAPERED BEARING,100mm ID x 150mm OD x 39mm W

2шт.

16

15992531

BOLT,Hex, M22 x 1.5 x 55mm, Cl 10.9, Full Thd

2шт.

17

87307345

TAPERED BEARING,90mm ID x 140mm OD x 32mm W

2шт.

18

87309276

MAIN SHAFT

112"

2шт.

With Rear axle with 112" shafts for steel/cast wheels, VAR.431-431/1

1шт.

18

87309273

MAIN SHAFT

98"

2шт.

With Rear axle with 98" shafts for steel/cast wheels, VAR.437-437/1

1шт.

19

11082174

CIRCLIP,105mm OD, DAC

D= 105

2шт.

20

15225924

BOLT,Hex, M22 x 2.5 x 60mm, Cl 8.8

20шт.

21

82032066

DECAL

1шт.

22

47126431

HUB

2шт.

With Steel Wheels, VAR.431/1-437/1

1шт.

23

47126236

WASHER,23mm ID x 44mm OD x 6mm Thk

26шт.

23

87306816

CONE WASHER,20.00mm ID x 36.00mm OD x 4.50mm

12шт.

With Cast Wheels, VAR.431-437

1шт.

24

87688508

BOLT,Hex, M22 x 2.5 x 90mm, Cl 8.8

12шт.

With Steel Wheels, VAR.431/1-437/1

1шт.

24

11125324

BOLT,Hex, M20 x 80, 8.8

, Serial Range: -C7400

12шт.

With Cast Wheels, VAR.431-437

1шт.

24

11125424

SCREW,Hex, M20 x 85mm, Cl 8.8

, Start Serial: D7400

12шт.

With Cast Wheels, VAR.431-437

1шт.

25

87645102

WEDGE,Lock, Silver

2шт.

With Steel Wheels, VAR.431/1-437/1

1шт.

25

5198567

WEDGE

2шт.

With Cast Wheels, VAR.431-437

1шт.

26

47126236

WASHER,23mm ID x 44mm OD x 6mm Thk

20шт.
