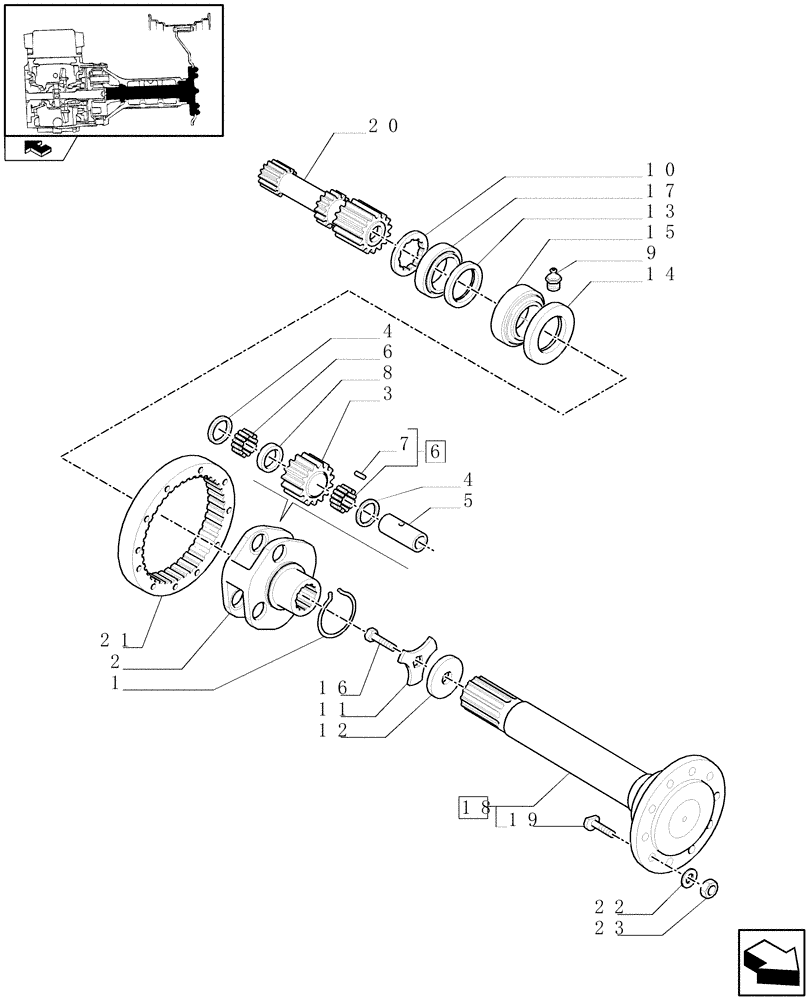

Запчасти Case IH PUMA 210 (1.48.1/01) - FINAL DRIVE, GEARS AND SHAFTS (05) - REAR AXLE

1

5136132

CIRCLIP,4mm Thk

2шт.

2

87307356

PINION CARRIER

GEAR CARRIER

2шт.

3

87307351

IDLER PINION

6шт.

4

5136128

THRUST WASHER,62.5mm ID x 108mm OD x 1mm Thk

12шт.

5

87307359

PIN,62.4mm OD x 149.5mm L

6шт.

6

5136131

ROLLER BEARING,62.4mm ID x 76.4mm OD x 32mm W

6шт.

7

5116733

NEEDLE ROLLER,62.4mm ID x 76.4mm OD x 0mm W

62шт.

8

87307350

SPACER,64.5mm ID x 76.3mm OD x 19mm L

6шт.

9

13407211

LUBE NIPPLE,M10 x 1

2шт.

10

87307355

THRUST WASHER,83mm ID x 117mm OD x 5mm Thk

2шт.

11

5124397

LOCKING PLATE

2шт.

12

87307358

LOCK WASHER

2шт.

13

5154451

SEAL,95mm ID x 120mm OD x 12mm Thk

2шт.

14

87307349

SEAL,120mm ID x 152mm OD x 16mm Thk

2шт.

15

87307342

TAPERED BEARING,100mm ID x 150mm OD x 39mm W

2шт.

16

15992531

BOLT,Hex, M22 x 1.5 x 55mm, Cl 10.9, Full Thd

2шт.

17

87307345

TAPERED BEARING,90mm ID x 140mm OD x 32mm W

2шт.

18

87311159

WHEEL SHAFT

2шт.

19

87307103

WHEEL BOLT,M22 x 2.5 x 91mm

20шт.

20

87307366

GEAR SHAFT

2шт.

21

87307352

RING GEAR

2шт.

22

47126236

WASHER,23mm ID x 44mm OD x 6mm Thk

20шт.

23

10719824

NUT,M22 x 10, DAC

20шт.
