(1.40.3/12) - (VAR.212) FRONT AXLE WITH ACTIVE SUSPENSIONS AND BRAKES - HYDRAULIC STEERING CYLINDER

Запчасти Case IH PUMA 210 (1.40.3/12) - (VAR.212) FRONT AXLE WITH ACTIVE SUSPENSIONS AND BRAKES - HYDRAULIC STEERING CYLINDER (04) - FRONT AXLE & STEERING

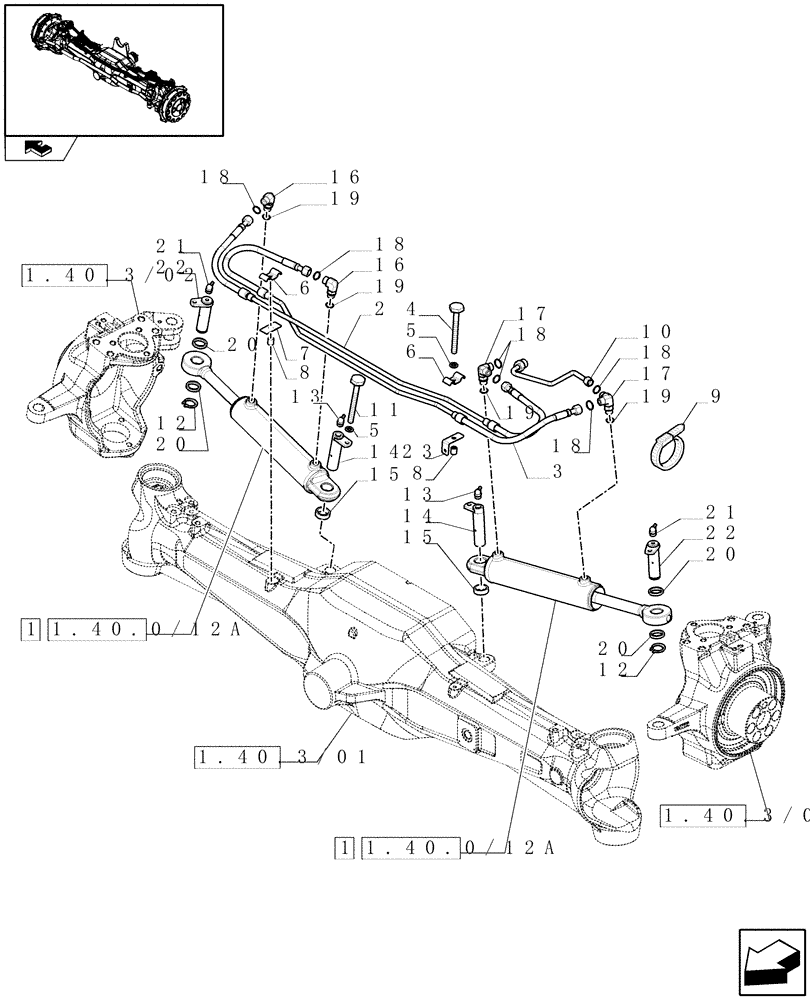

Схема запчастей Case IH PUMA 210 - (1.40.3/12) - (VAR.212) FRONT AXLE WITH ACTIVE SUSPENSIONS AND BRAKES - HYDRAULIC STEERING CYLINDER (04) - FRONT AXLE & STEERING
13
1
14
17
20
23
15
5
3
8
6
11
19
6
19
18
2
9
19
15
1.40.0/12a
home
1.40.3/02
1.40.3/02
1.40.3/01
1.40.0/12a
18
20
8
13
5
21
4
16
22
14
18
18
10
22
12
20
7
17
18
12
19
16
1
20
21
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

5198883

STEERING CYLINDER,Double Acting, 25mm Rod, 232.5mm Stroke

2шт.

2

5188440

HYDRAULIC HOSE,10.00mm OD x 1450.00mm

RH, (VAR.358/1)

1шт.

3

5188439

HYDRAULIC HOSE,10.00mm OD x 1450.00mm

LH, (VAR.358/1)

1шт.

4

16043824

SCREW,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd, DAC

3шт.

5

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

6шт.

6

5188504

BRACKET

2шт.

7

5188503

BRACKET

1шт.

8

13605811

SPACER,8.50mm ID x 18.00mm OD x 10.00mm, STL, ZND

2шт.

9

13000990

COLLAR,60mm - 80mm, Worm Gear

1шт.

10

87648141

HYD TUBE

LH, Serial Range: -C6461

1шт.

10

84233089

HYD TUBE,10.00mm OD x 276.00mm, 75.00mm L

LH, Start Serial: D6461

1шт.

11

16043424

SCREW,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

3шт.

12

11067376

SNAP RING,M25, Ext

2шт.

13

13406911

LUBE NIPPLE,Straight, 1/4"-28 x 0.54"

2шт.

14

5198013

PIN,24.97mm OD x 100mm L

2шт.

15

5111576

SPACER,25.5mm ID x 34mm OD x 11mm L

2шт.

16

47127165

90 ELBOW

2шт.

17

5188443

90 ELBOW

2шт.

18

5185510

O-RING,1.78mm Thk x 9.25mm ID, 85 Duro

2шт.

19

14437785

O-RING,11.3mm ID x 2.4mm

2шт.

20

5111573

SPACER,25.5mm ID x 34mm OD x 5.9mm L

25.5 x 34

4шт.

21

5191671

LUBE NIPPLE,45 Degree, M14 x 1.5

2шт.

22

5171707

PIN,24.97mm OD x 91mm L

2шт.

23

87730142

BRACKET

1шт.
