Запчасти Case IH PUMA 210 (1.40.0/10[01]) - FRONT AXLE - AXLE SHAFTS AND EPICICLIC REDUCERS (04) - FRONT AXLE & STEERING

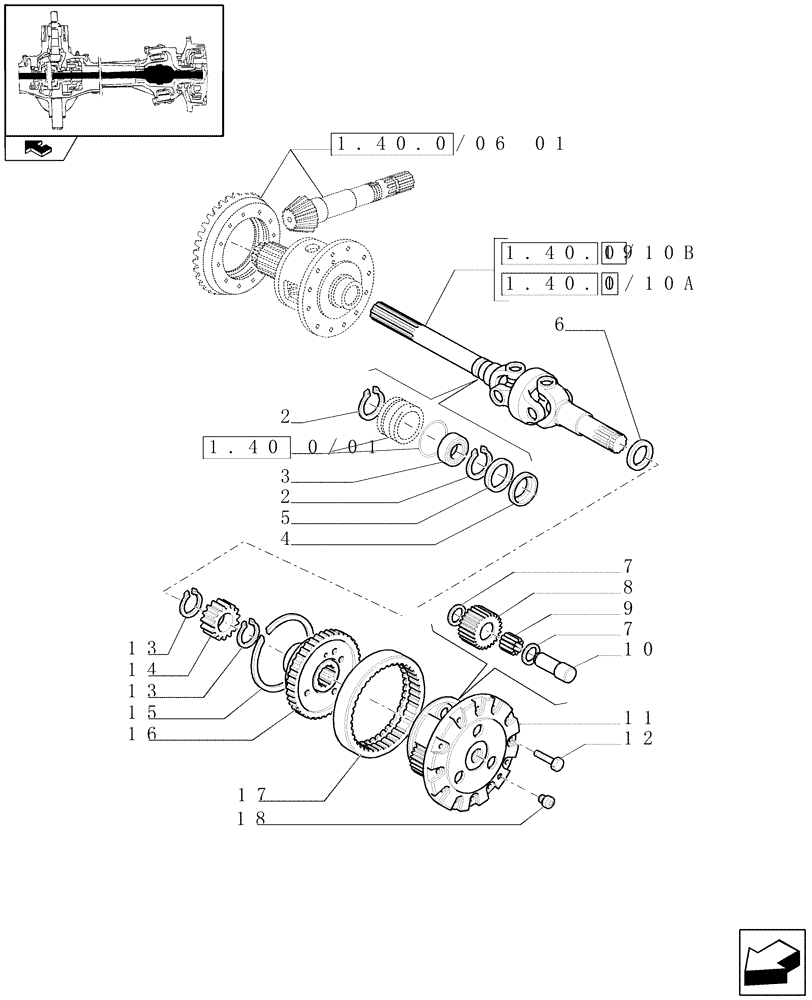

Схема запчастей Case IH PUMA 210 - (1.40.0/10[01]) - FRONT AXLE - AXLE SHAFTS AND EPICICLIC REDUCERS (04) - FRONT AXLE & STEERING
1
18
3
7
2
7
8
12
4
19
16
5
10
13
17
15
14
2
1.40.0/10a
1.40.0/06 01
home
1.40.0/01
1.40.0/10b
11
13
9
6

Артикул

Название

Примечание

Количество

1

5191696

AXLE-SHAFT, ARTICULA

LH, Serial Range: -C6353

1шт.

1

5191697

AXLE-SHAFT, ARTICULA

RH, Serial Range: -C6353

1шт.

2

11061376

SNAP RING,M68, Int

4шт.

3

28042480

BALL BEARING,40.00mm x 68.00mm x 15.00mm

2шт.

4

5109311

SEAL PROTECTION,45.2mm ID x 68mm OD x 1mm Thk

2шт.

5

87342469

SEAL,44.2mm ID x 68mm OD x 12mm Thk

45 x 68 x 12, Serial Range: -C6353

2шт.

5

84166622

SEAL,43.1mm ID x 60mm OD x 17.2mm Thk

45 x 60 x 16, Start Serial: D6353

2шт.

6

5183845

SEAL

, Serial Range: -C6353

2шт.

6

84166643

SEAL,45mm ID x 65mm OD x 27mm Thk

45 x 65 x 27, Start Serial: D6353

2шт.

7

4998022

THRUST WASHER,32mm ID x 55mm OD x 0.8mm Thk

12шт.

8

5102132

PLANETARY GEAR

6шт.

9

5101692

NEEDLE BEARING,31.9mm ID x 41.9mm OD x 35.5mm W

31.8 x 41.9 x 35.5

6шт.

10

5181056

PIN,35mm OD x 75.5mm L

6шт.

11

5181054

CARRIER

Incl. 7-10

2шт.

12

14274634

LOCK BOLT,Hex, M12 x 1.25 x 35mm, Cl 10.9

24шт.

13

5123651

SNAP RING,36mm, External

6шт.

14

5136819

PLANETARY GEAR

, Serial Range: -C6581

2шт.

14

84262815

PLANETARY GEAR

, Start Serial: D6581

2шт.

15

4986355

CIRCLIP

D=265

2шт.

16

5141691

DISC

2шт.

17

5102130

RING GEAR

2шт.

18

14326211

PLUG,M22 x 1.50, R50, ZND

M22 x 1

2шт.

19

84184133

AXLE-SHAFT, ARTICULA

LH, Start Serial: D6353

1шт.

19

84184130

AXLE-SHAFT, ARTICULA

RH, Start Serial: D6353

1шт.

Выбрано товаров: 24
