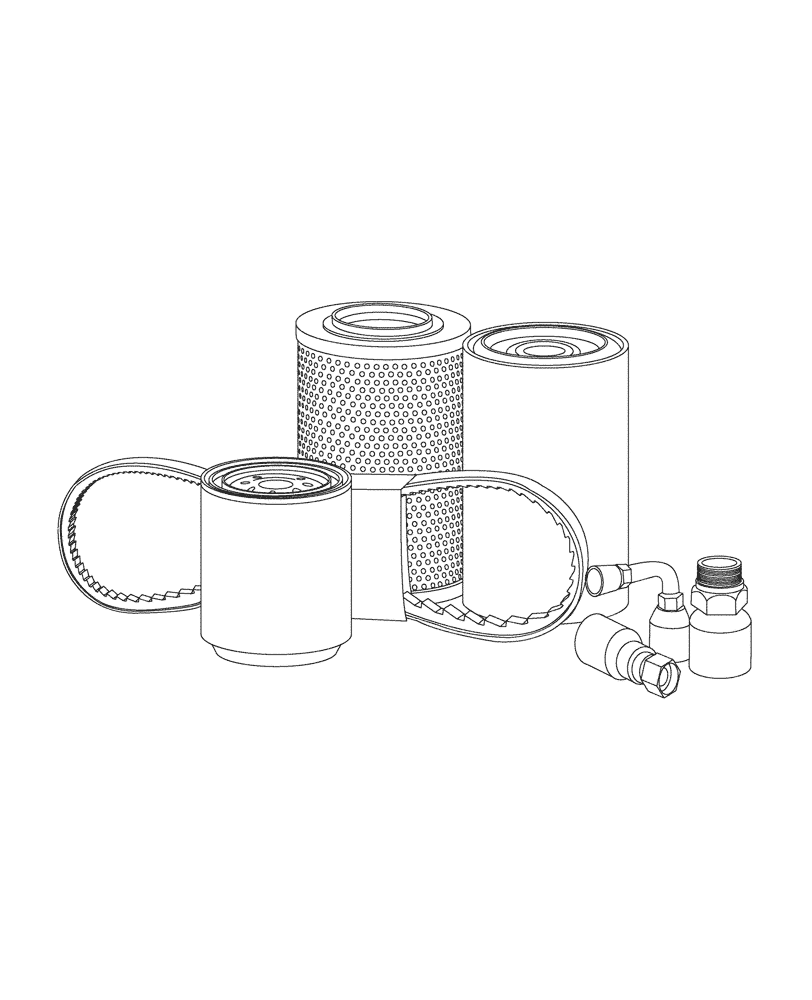

Запчасти Case IH PUMA 210 (0.01.1[02]) - INITIAL STOCKING LIST (LIST A) (00) - GENERAL

1

84146522

FILTER

Hydraulic Trailer Brake

1шт.

2

84170818

FUEL FILTER,96.2mm OD x 183mm L, M16 x 1.5 - 6H, W/ WIF Sensor (M10)

Primary, with Sensor M10

1шт.

3

84228488

ENGINE OIL FILTER,95mm OD x 171mm L, M27x2-6H

Engine Oil

1шт.

4

84278636

FUEL FILTER,96.2mm OD x 183mm L, M16x1.5 - 6H, W/ WIF Sensor (M14)

Primary, with Sensor M14

1шт.

5

84328598

FUEL FILTER,40mm OD x 109mm L, M14 x 1.5, 350 Microns

Pre-Cleaner

1шт.

6

84412164

FUEL FILTER,94mm OD x 192mm L, M20 x 1.5, 10 Microns

Secondary

1шт.

7

84417139

ELEMENT,267.5mm L, 11 Micron

Charge Pump

1шт.

For the first Replacement order also: PN 84417137 Housing + PN 84550359 O-Ring

1шт.

After Date 14 September 2010

1шт.

8

87304662

BREATHER

ASSY

1шт.

9

87343822

RECEIVER-DRYER

Air Conditioning

1шт.

10

87517153

AIR FILTER,142.3mm ID x 150.9mm OD x 258mm L

Safety

1шт.

11

87517154

AIR FILTER,281.6mm ID x 284.4mm OD x 319mm L

Main

1шт.

12

87588814

HYDRAULIC OIL FILTER,151mm L

Vane Pump

1шт.

13

87707945

HYDRAULIC OIL FILTER

Charge Pump

1шт.

Before Date 15 September 2010

1шт.

14

47617638

FILTER

Suction

1шт.

15

87726675

CAB FILTER,Fresh Air, 550mm x 100mm x 64mm, Paper

Air conditioning

2шт.

16

87726699

CAB FILTER,Fresh Air, 380mm x 130mm x 49mm, Paper

Recirculation

1шт.

17

336430A1

FUEL FILTER

30 Microns, Water Separator

1шт.

Valid with Heavy Duty Fuel Filter, Var.414

1шт.
