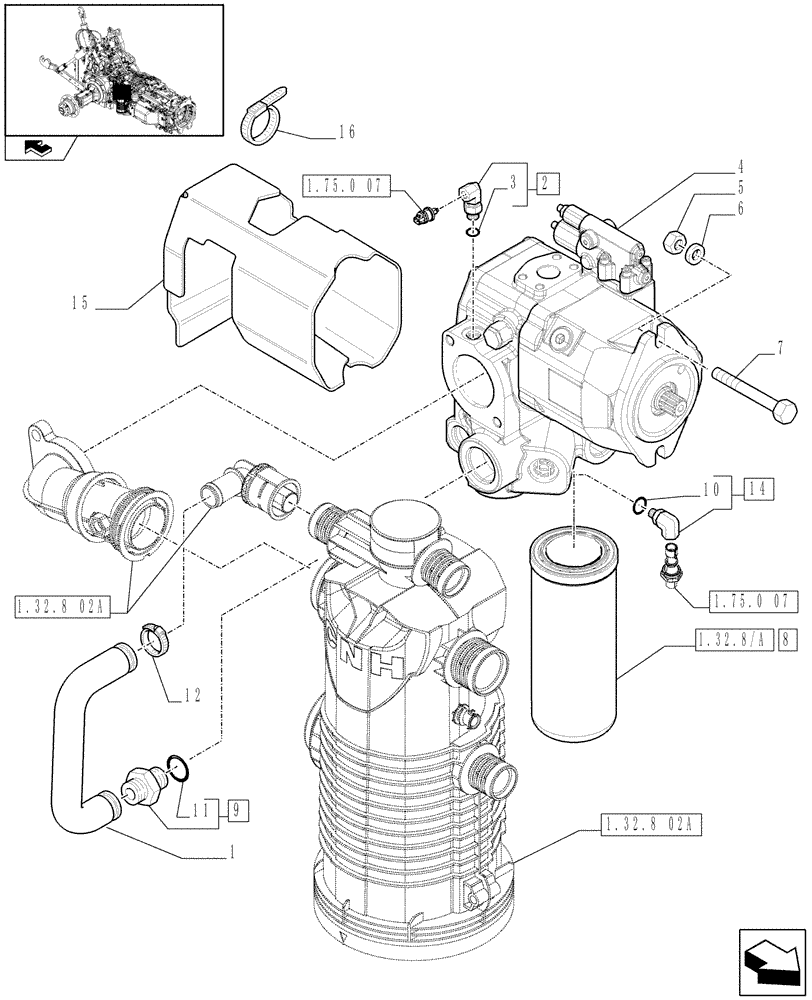

Запчасти Case IH PUMA 210 (1.32.8[04A]) - HYDRAULIC PUMP - CHARGE PUMP - D6475 - C7051 (03) - TRANSMISSION

1

84236626

HOSE,25.40 mm ID x 185.80 mm

1шт.

2

87667432

HYD CONNECTOR,M10 x 1 x M14 x 1.5

M14 x 1.5

1шт.

3

14437785

O-RING,11.3mm ID x 2.4mm

1шт.

4

84309313

HYDRAULIC PUMP

, Serial Range: -C6712

1шт.

4

84309311

HYDRAULIC PUMP

With "HI - FLOW" PFC Pump with EDC for EHR Remotes, VAR.004, Serial Range: -C6712

1шт.

4

84353098

HYDRAULIC PUMP,56 CC

, Start Serial: D6712

1шт.

4

84353098R

REMAN-HYD PUMP

56 CC, Start Serial: D6712

1шт.

4

84353098C

CORE-HYDRAULIC PUMP

Return Number

1шт.

4

84353100

HYDRAULIC PUMP,63 CC

With "HI - FLOW" PFC Pump with EDC for EHR Remotes, VAR.004, Start Serial: D6712

1шт.

4

84353100R

REMAN-HYD PUMP

63 CC. With "HI - FLOW" PFC Pump with EDC for EHR Remotes, VAR.004, Start Serial: D6712

1шт.

4

84353100C

CORE-HYDRAULIC PUMP

Return Number

1шт.

5

12164024

NUT,Hex, M14 x 1.5mm Pitch, Cl 10, DAC

M14 x 1.5

2шт.

6

10730821

WASHER,Flat, 14.40mm ID x 26.00mm OD x 3.00mm, R80, ZND

2шт.

7

15877021

BOLT,Hex, M14 x 1.5 x 110mm, Cl 8.8

2шт.

8

87707945

HYDRAULIC OIL FILTER

HYD PUMP, Serial Range: -C6712

1шт.

8

84341286

HYDRAULIC OIL FILTER,289.5mm L

, Start Serial: D6712

1шт.

AFTER THE FIRST 50 HOURS REPLACE THE FILTER WITH: PN 84417137 - Housing / PN 84417139 - Filter Cartridge / PN 84550359 - Filter O Ring; FOR OTHER TIME REPLACE THE FILTER WITH: PN 84417139 - Filter Cartridge / PN 84550359 - Filter O Ring

1шт.

9

84252094

HYD CONNECTOR,M42 X 2 x 22mm

1шт.

10

14437585

O-RING,8.00mm ID x 1.50mm

1шт.

11

86598105

O-RING,2.9mm Thk x 38.6mm ID, Cl 6, 90 Duro

3шт.

12

86642485

CLAMP,1.31" - 2.25"

2шт.

13

82036709

HOSE CLAMP,25mm - 40mm, Worm Gear

25 x 40 x 9

2шт.

14

84247208

HYD CONNECTOR,1/4" - 18 DRYSEAL NPTF - M10 x 1

1шт.

15

84212218

NOISE PROTECTION

1шт.

16

14569387

HOSE CLIP

5шт.
