Запчасти Case IH PUMA 210 (1.32.8[03]) - HYDRAULIC PUMP - VANE PUMP - C6712 (03) - TRANSMISSION

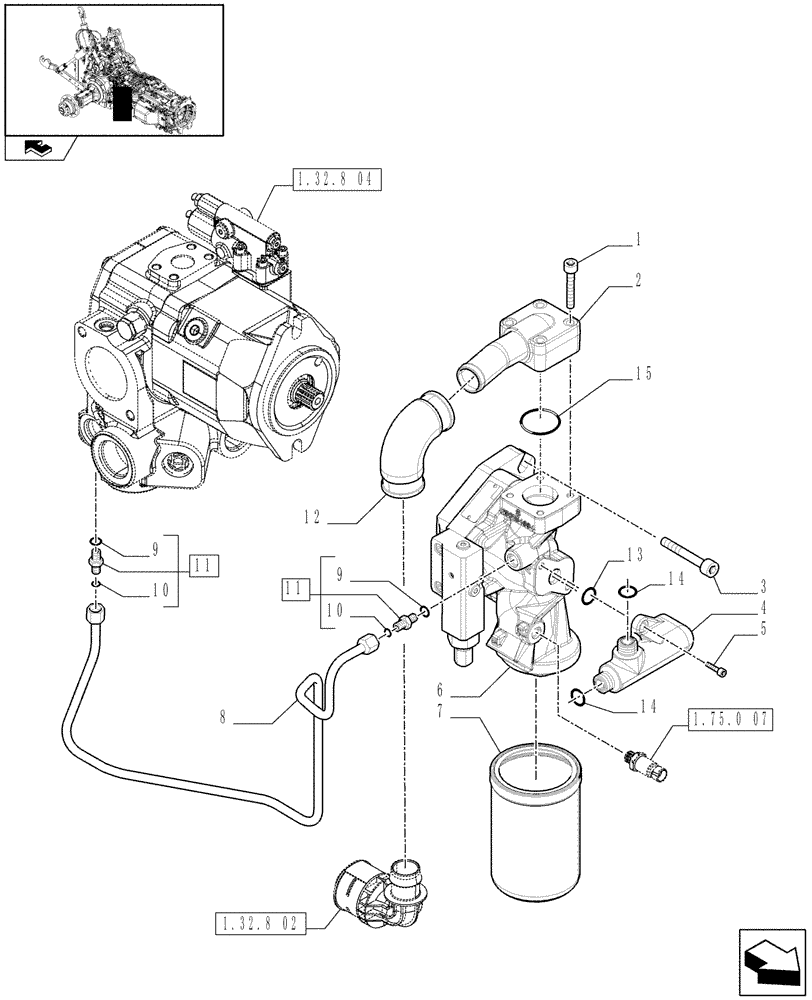

Схема запчастей Case IH PUMA 210 - (1.32.8[03]) - HYDRAULIC PUMP - VANE PUMP - C6712 (03) - TRANSMISSION
15
7
1.32.8 02
1
1.75.0 07
home
1.32.8 04
3
10
13
6
10
12
5
11
11
8
4
9
2
14
9
14

Артикул

Название

Примечание

Количество

1

14306821

HEX SOC SCREW,M8 x 45mm, Cl 8.8

4шт.

2

87608113

TUBE

1шт.

3

14311821

SCREW,M14 x 1.5 x 45mm

M14 x 1.5 x 45

2шт.

4

87608369

FLANGE

1шт.

5

14306421

HEX SOC SCREW,M8 x 1.25 x 25mm, Cl 8.8

2шт.

6

87738887

PUMP,45 CC

1шт.

87738887R

REMAN-HYD PUMP

PUMA 165 , PUMA 180, PUMA 195, PUMA 210, PUMA 225 CVT, ALL (11/08-)

1шт.

87738887C

CORE-HYDRAULIC PUMP

Return Number

1шт.

7

87707947

HYDRAULIC OIL FILTER

1шт.

8

84122477

HYD TUBE

1шт.

9

86598099

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

2шт.

10

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

2шт.

11

86579674

HYD CONNECTOR,13/16"-16 ORFS x M14 x 1.5 ORB

2шт.

12

87608355

ELBOW,31mm OD x 45mm ID x 60/65mm

1шт.

13

14453880

O-RING,0.07" Thk x 0.926" ID, -21, Cl 5, 75 Duro

1шт.

14

5185513

O-RING,1.78mm Thk x 18.77mm ID, 85 Duro

2шт.

15

14454980

O-RING,0.07" Thk x 1.864" ID, -32, Cl 5, 75 Duro

1шт.

Выбрано товаров: 17
