Запчасти Case IH PUMA 210 (1.32.8[02C]) - HYDRAULIC PUMP - OIL FILTER - D7052 (03) - TRANSMISSION

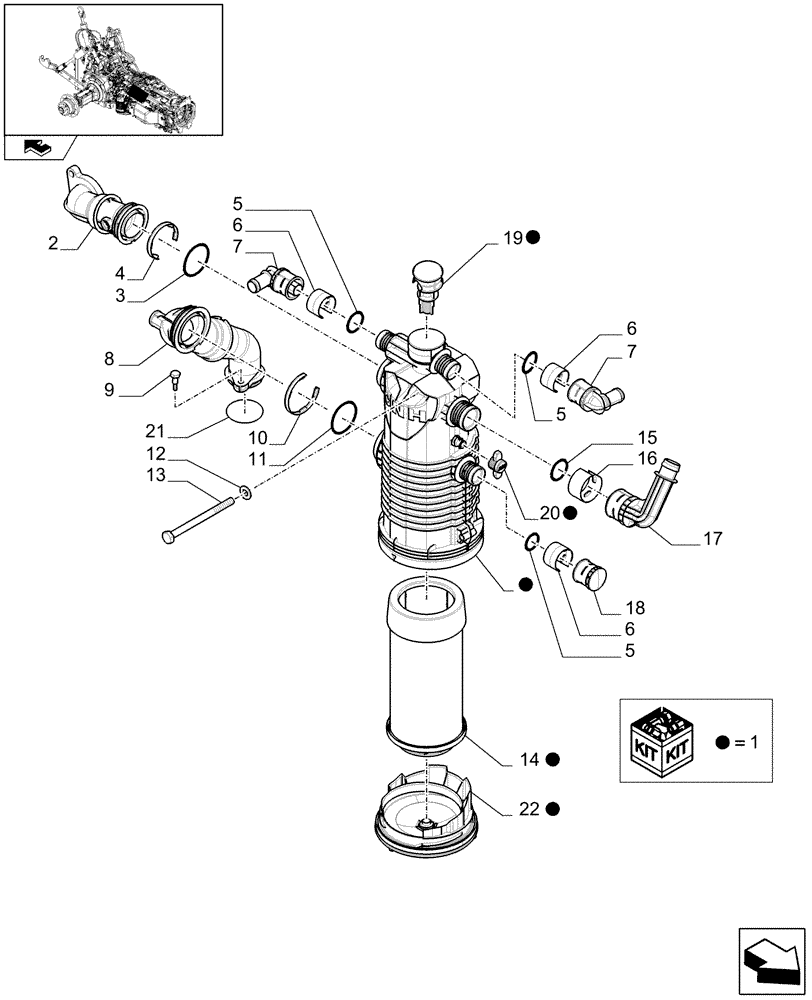

Схема запчастей Case IH PUMA 210 - (1.32.8[02C]) - HYDRAULIC PUMP - OIL FILTER - D7052 (03) - TRANSMISSION
1
1
8
22
16
1
4
10
1
13
1
15
18
17
6
6
7
6
9
20
12
1
5
1
21
home
5
11
5
3
2
7
19
14

Артикул

Название

Примечание

Количество

1

84242244

FILTER ASSY

Contains Ref. 14, 19, 20, 22

1шт.

2

87656066

SUCTION PIPE

ELBOW

1шт.

3

87381702

O-RING,53.5mm ID x 2.387mm OD x 3.53mm

1шт.

4

87381696

SNAP RING,8mm Thk, Ext

1шт.

5

87381700

O-RING,25.50mm ID x 2.53mm

3шт.

6

84121298

SNAP RING,30mm Thk, Ext

3шт.

7

87608358

ELBOW,90 Deg, 22mm ID

2шт.

8

87395840

TUBE

1шт.

9

87687675

BOLT,M8 x 1.25 x 32mm, Cl 8.8

1шт.

10

87381695

CIRCLIP,8mm Thk

1шт.

11

87381699

O-RING,63.50mm ID x 3.53mm

1шт.

12

14496601

WASHER,10.5mm ID x 21mm OD x 2mm Thk

2шт.

13

15972421

SCREW,Hex, M10 x 1.25 x 130mm, Cl 8.8

2шт.

14

47617638

FILTER

1шт.

Include Cover Gasket

1шт.

15

235757

O-RING,0.139" Thk x 1.484" ID, -222, Cl 6, 90 Duro

1шт.

16

87330755

STOP DEVICE

1шт.

17

87324688

ELBOW,90 Deg, 32.9mm - 27mm ID

1шт.

18

87330798

PLUG,46mm ID

1шт.

19

84244473

CHECK VALVE

1шт.

20

87705160

ARRESTER

1шт.

21

87705158

GASKET KIT

1шт.

22

87705159

FILTER COVER

1шт.

Выбрано товаров: 23
