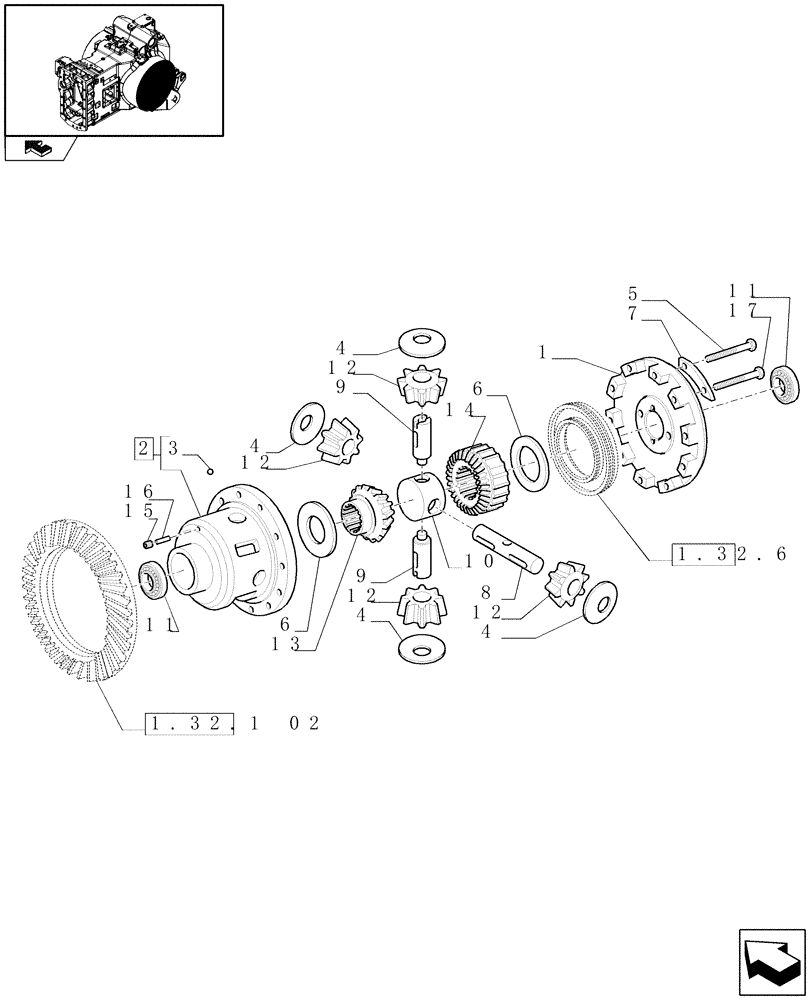

Запчасти Case IH PUMA 210 (1.32.4) - DIFFERENTIAL GEARS (03) - TRANSMISSION

1

5185921

COVER

1шт.

2

5185965

HOUSING

1шт.

3

20063460

BALL,7.14mm OD, Gr 100

7.144

1шт.

4

5196109

THRUST WASHER,30mm ID x 66mm OD x 1.47mm Thk

4шт.

5

16214730

BOLT,Hex, M14 x 1.5 x 55mm, Cl 10.9

12шт.

6

5197522

THRUST WASHER,69mm ID x 95mm OD x 3.3mm Thk

2шт.

6

5197534

THRUST WASHER,69mm ID x 95mm OD x 2.7mm Thk

1шт.

6

5197533

THRUST WASHER,69mm ID x 95mm OD x 2.75mm Thk

1шт.

6

5197532

THRUST WASHER,69mm ID x 95mm OD x 2.8mm Thk

1шт.

6

5197531

THRUST WASHER,69mm ID x 95mm OD x 2.85mm Thk

1шт.

6

5197530

THRUST WASHER,69mm ID x 95mm OD x 2.9mm Thk

1шт.

6

5197529

THRUST WASHER,69mm ID x 95mm OD x 2.95mm Thk

1шт.

6

5197528

THRUST WASHER,69mm ID x 95mm OD x 3mm Thk

1шт.

6

5197527

THRUST WASHER,69mm ID x 95mm OD x 3.05mm Thk

1шт.

6

5197526

THRUST WASHER,69mm ID x 95mm OD x 3.1mm Thk

1шт.

6

5197525

THRUST WASHER,69mm ID x 95mm OD x 3.15mm Thk

1шт.

6

5197524

THRUST WASHER,69mm ID x 95mm OD x 3.2mm Thk

1шт.

6

5197523

THRUST WASHER,69mm ID x 95mm OD x 3.25mm Thk

1шт.

6

87748552

THRUST WASHER,69mm ID x 95mm OD x 3.5mm Thk

1шт.

6

87748553

THRUST WASHER,69mm ID x 95mm OD x 3.45mm Thk

1шт.

6

87748554

THRUST WASHER,69mm ID x 95mm OD x 3.4mm Thk

1шт.

6

87748555

THRUST WASHER,69mm ID x 95mm OD x 3.35mm Thk

1шт.

7

5185928

PLATE

6шт.

8

87495653

PIN,29.96mm OD x 203mm L

1шт.

9

47135872

PIN

2шт.

10

5185931

SUPPORT

1шт.

11

24903700

ROLLER BEARING,90mm ID x 140mm OD x 32mm W

90 x 140 x 32

2шт.

12

5186409

PINION

4шт.

13

5186410

PINION,28T

1шт.

14

5186411

PINION,28T

1шт.

15

13809770

SET SCREW,Hex Soc, M10 x 22mm, Flat Pt

2шт.

16

14516820

DOWEL,M7 x 75

2шт.
