Запчасти Case IH PUMA 210 (1.29.6[01]) - TRANSMISSION 40KPH - HYDROSTATIC PUMP - CONTROL VALVE WITH SOLENOIDS (03) - TRANSMISSION

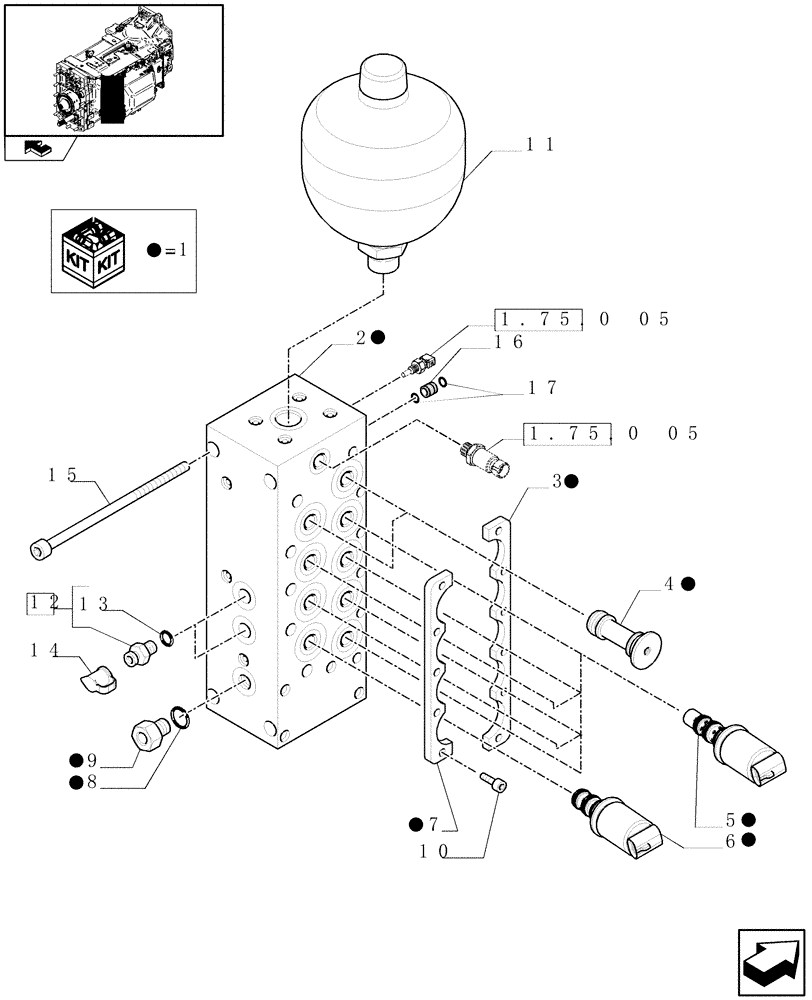

Схема запчастей Case IH PUMA 210 - (1.29.6[01]) - TRANSMISSION 40KPH - HYDROSTATIC PUMP - CONTROL VALVE WITH SOLENOIDS (03) - TRANSMISSION
1
1
9
1
12
16
7
11
1
1
13
17
10
5
1.75.0 05
home
1.75.0 05
3
15
8
4
1
1
1
1
2
6
14
1

Артикул

Название

Примечание

Количество

1

84123449

MANIFOLD VALVE

ASSY

1шт.

2

84125653

MANIFOLD VALVE

1шт.

3

47134564

FIXING PLATE

1шт.

4

5194991

PLUG

2шт.

5

87739558

SOLENOID VALVE,14W

Green Connectors

6шт.

5

87739558R

REMAN-SOLENOID

Green Connectors

6шт.

5

87739558C

CORE-SOLENOID

Return Number

6шт.

6

87472229

CARTRIDGE

1шт.

7

87683403

PLATE

1шт.

8

14437885

O-RING,13.30mm ID x 2.40mm

1шт.

9

84125654

HYD CONNECTOR

M10 x 1

1шт.

10

NSS

NOT SOLD SEPARAT

1шт.

11

87314179

ACCUMULATOR,0.75L

1шт.

12

5185423

COUPLING

3шт.

13

14437785

O-RING,11.3mm ID x 2.4mm

3шт.

14

5185424

DUST CAP,11.5mm ID x 81.5 L, Black

3шт.

15

14307124

SCREW,M8 x 1.25 x 90mm, Cl 8.8

M8 x 90

4шт.

16

87561328

BUSHING,11mm ID x 13mm OD x 14mm L

9шт.

17

14453080

O-RING,0.426" ID x 0.07"

18шт.

Выбрано товаров: 19
