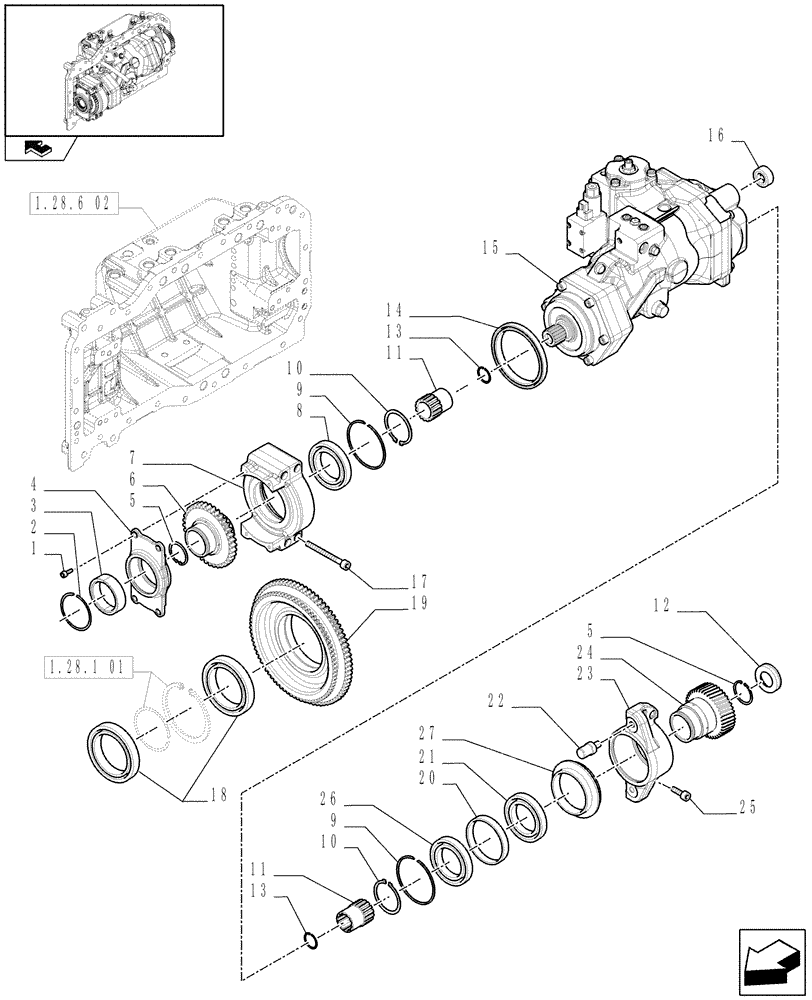

Запчасти Case IH PUMA 210 (1.28.6[03A]) - TRANSMISSION - HYDROSTATIC PUMP - PUMP AND GEARS - D6565 (03) - TRANSMISSION

1

14306320

HEX SOC SCREW,M8 x 1.25 x 20mm, Cl 8.8, Full Thd

4шт.

2

87574918

SNAP RING,M86.8, Ext

D=85

1шт.

3

87562573

NEEDLE BEARING,Needle, 68mm ID x 85mm OD x 25mm W

68 x 85 x 25

1шт.

4

87566877

SUPPORT

Cover

1шт.

5

11060576

SNAP RING,M52, Int

2шт.

6

87566872

PINION,36T

1шт.

7

87566879

SUPPORT

Front

1шт.

8

47136958

BALL BEARING,70mm ID x 110mm OD x 20mm W

70 x 110 x 20

1шт.

9

87567448

SNAP RING,M113.3, Ext

D= 70

2шт.

10

11070376

SNAP RING,M70, Ext

2шт.

11

84248897

SPLINED COUPLING,36/51.7mm ID x 40/54.7mm OD x 62mm L

2шт.

12

84248817

RETAINER CUP,30mm ID x 58.5mm OD x 13mm Thk

5.33 x 43.82

2шт.

13

13421674

SNAP RING,M38, Int

38MM, Int.

2шт.

14

87550536

RUBBER SEAL,127mm ID x 152mm OD x 14mm Thk

1шт.

15

87724314

HYDROSTATIC PUMP

1шт.

87724314R

REMAN-HYDROSTAT PUMP

Puma 165 CVT, Puma 180 CVT, Puma 195 CVT, Puma 210, Puma 225 CVT, All -D6565,

1шт.

87724314C

CORE-HYDROSTAT PUMP

Return Number

1шт.

84536173R

REMAN-HYDROSTAT PUMP

PUMA 165, PUMA 180, PUMA 195, PUMA 210, PUMA 225 All (11/08-);Reman for new PN 87724314

1шт.

84536173C

CORE-HYDRAULIC PUMP

Return Number

1шт.

16

84120288

BUSHING,25mm ID x 42mm OD x 23mm L

2шт.

17

14332620

HEX SOC SCREW,M12 x 1.25 x 110mm, Cl 8.8

SPARE PART M12 x 1.25 x 110

4шт.

18

47136425

BALL BEARING,105mm ID x 145mm OD x 20mm W

105 x 145 x 20

2шт.

19

87566890

GEAR

1шт.

20

87572495

SPACER,100mm ID x 110mm OD x 15mm L

1шт.

21

87587823

ROLLER BEARING,80mm ID x 110mm OD x 20mm W

1шт.

22

84248990

PIN,29.5mm OD x 54mm L

2шт.

23

84248818

SUPPORT

REAR

1шт.

24

84248819

PINION,40T

1шт.

25

14331220

HEX SOC SCREW,M12 x 1.25 x 35mm, Cl 8.8, Full Thd

4шт.

26

24905360

BALL BEARING,70mm ID x 110mm OD x 20mm W

70 x 110 x1 20

1шт.

27

84245241

RING,88mm ID x 125mm OD x 11.5mm Thk

1шт.
