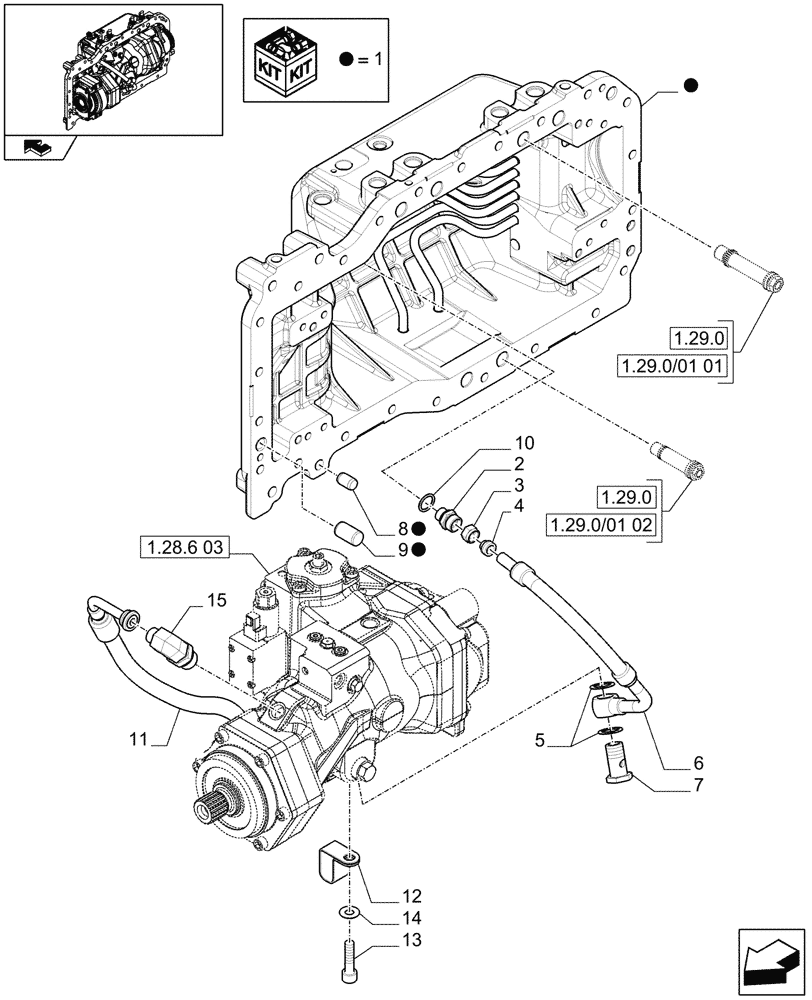

Запчасти Case IH PUMA 210 (1.28.6[02]) - TRANSMISSION - HYDROSTATIC PUMP - COVER (03) - TRANSMISSION

1

87494641

COVER ASSY

ASSY

1шт.

2

11212813

FITTING,M18 x 1.5 x M22 x 1.5

M18 x 1.5 - M22 x 1.5

1шт.

3

11260713

LOCK NUT,M22 x 1.5

M22 x 1.5

1шт.

4

11266813

FERRULE,15mm ID x 18mm OD x 10mm L

15MM

1шт.

5

5165897

SEALING WASHER,22.7mm ID x 30mm OD x 2mm Thk

D=22

2шт.

6

87654335

HOSE

1шт.

7

87667266

BALL STUD,M22 x 1.5 x 42mm

BALL PIN

1шт.

8

5153109

DOWEL,10mm OD x 15mm L

D=10 x 15

4шт.

9

4985062

DOWEL,15mm OD x 25mm L

D=15 x 25

2шт.

10

5167640

SEALING WASHER,14.09mm ID x 26.45mm OD x 1.5mm Thk

D=18

1шт.

11

84235771

FLEXIBLE HOSE

Hydrostatic Unit Return Pipe, Start Serial: D6475

1шт.

12

84236686

BRACKET

Hydrostatic Unit Return Bracket, Start Serial: D6475

1шт.

13

14306134

HEX SOC SCREW,M8 x 1.25 x 12mm, Cl 10.9, Full Thd

, Start Serial: D6475

1шт.

14

11197879

BELLEVILLE WASHER,8.4mm ID x 16mm OD x 2.2mm Thk

, Start Serial: D6475

1шт.

15

47126401

HYD CONNECTOR

, Start Serial: D6475

1шт.
