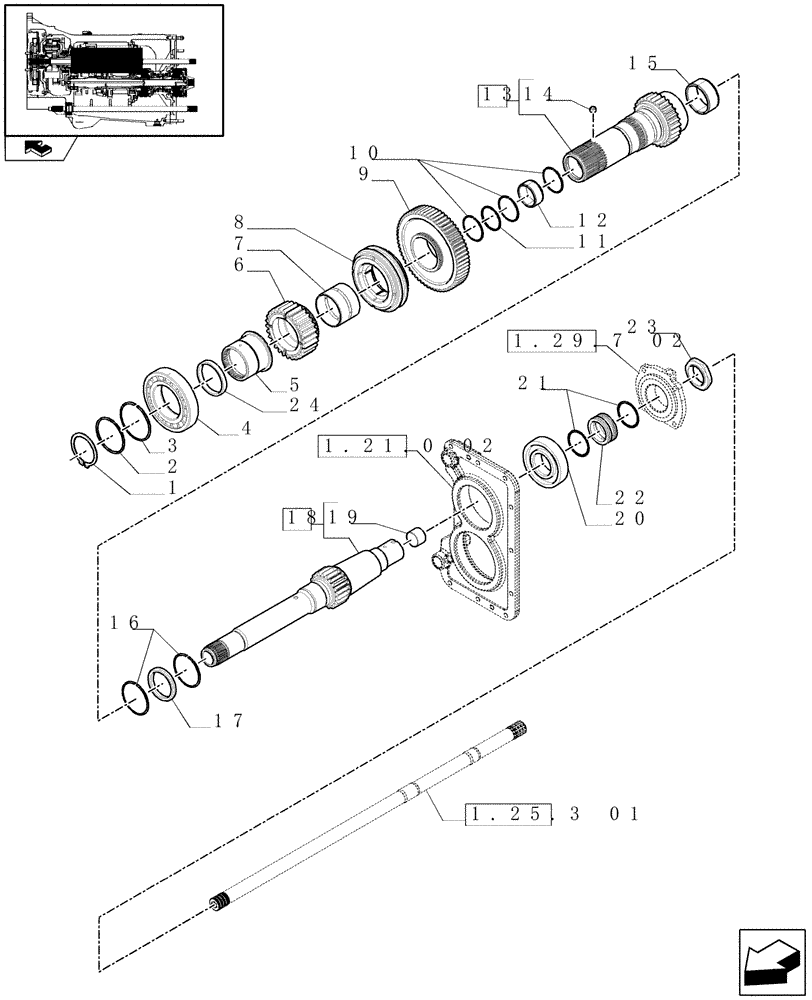

Запчасти Case IH PUMA 210 (1.28.1[02]) - TRANSMISSION 40KPH - I & III RANGE GEARS (03) - TRANSMISSION

1

11070576

SNAP RING,M75, Ext

1шт.

2

87684516

SNAP RING,M85, Ext

D=85

1шт.

3

84196114

SPACER,85mm ID x 95mm OD x 2.9mm L

MM 2.9

1шт.

3

84233886

SPACER,85mm ID x 95mm OD x 2.95mm L

MM 2.95

1шт.

3

87684515

SPACER,85mm ID x 95mm OD x 3mm L

MM 3.0

1шт.

3

84233888

SPACER,85mm ID x 95mm OD x 3.05mm L

MM 3.05

1шт.

3

84195846

SPACER,85mm ID x 95mm OD x 3.1mm L

MM 3.1

1шт.

3

84233889

SPACER,85mm ID x 95mm OD x 3.15mm L

MM 3.15

1шт.

3

84195849

SPACER,85mm ID x 95mm OD x 3.2mm L

MM 3.2

1шт.

3

84233892

SPACER,85mm ID x 95mm OD x 3.25mm L

MM 3.25

1шт.

3

84195850

SPACER,85mm ID x 95mm OD x 3.3mm L

MM 3.3

1шт.

4

87702000

ROLLER BEARING,85mm ID x 150mm OD x 28mm W

1шт.

5

84195306

BEARING CARRIER

1шт.

6

87528197

GEAR

Primary Gear - I

1шт.

7

87534220

BUSHING,75mm ID x 82mm OD x 59.5mm L

1шт.

8

87534212

SYNCHRONIZER,144mm ID x 156mm OD x 46mm L, 38/48T

1шт.

9

87693136

GEAR

Primary Gear III

1шт.

10

5142178

SNAP RING,1.5mm Thk

3шт.

11

5162255

GASKET,50mm ID x 58mm OD x 4mm Thk

, Serial Range: -C6102

1шт.

11

84153562

RUBBER SEAL,50mm ID x 58mm OD x 4mm Thk

, Start Serial: D6102

1шт.

12

5162256

NEEDLE BEARING,Needle, 50mm ID x 58mm OD x 25mm W

1шт.

13

84199556

PRIMARY SHAFT

1шт.

14

5193270

ORIFICE,M6 x 1 x 4mm, Cl 8.8

1шт.

15

87562575

NEEDLE BEARING,Needle, 63mm ID x 80mm OD x 25mm W

63 x 80 x 25

1шт.

16

87567449

SNAP RING,M82.6, Ext

D=80

2шт.

17

87699105

OIL SEAL,64mm ID x 80mm OD x 8mm

1шт.

18

87699353

SHAFT

1шт.

19

5107725

BUSHING,31.99mm ID x 36mm OD x 25mm L

1шт.

20

87562151

BALL BEARING,55mm ID x 120mm OD x 29mm W

55 x 120 x 29

1шт.

21

87588681

SEALING RING,63.81mm ID x 67.81mm OD x 2.87mm Thk

2шт.

22

87589208

SELF LUB RING,50mm ID x 66.5mm OD x 29.6mm Thk

1шт.

23

87562134

RING NUT,Hex, M50 x 1.5

M50

1шт.

24

84195320

SPACER

, Serial Range: -C6457

1шт.

24

84231215

SPACER,74.6mm ID x 88mm OD x 2.5mm L

MM 2.5, Start Serial: D6457

1шт.

24

84231218

SPACER,74.6mm ID x 88mm OD x 2.6mm L

MM 2.6, Start Serial: D6457

1шт.

24

84231220

SPACER,74.6mm ID x 88mm OD x 2.7mm L

MM 2.7, Start Serial: D6457

1шт.

24

84231222

SPACER,74.6mm ID x 88mm OD x 2.8mm L

MM 2.8, Start Serial: D6457

1шт.

24

84231223

SPACER,74.6mm ID x 88mm OD x 2.9mm L

MM 2.9, Start Serial: D6457

1шт.

24

84231224

SPACER,74.6mm ID x 88mm OD x 3mm L

MM 3.0, Start Serial: D6457

1шт.

24

84231225

SPACER,74.6mm ID x 88mm OD x 3.1mm L

MM 3.1, Start Serial: D6457

1шт.

24

84231226

SPACER,74.6mm ID x 88mm OD x 3.2mm L

MM 3.2, Start Serial: D6457

1шт.

24

84231227

SPACER,74.6mm ID x 88mm OD x 3.3mm L

MM 3.3, Start Serial: D6457

1шт.

24

84231237

SPACER,74.6mm ID x 88mm OD x 3.4mm L

MM 3.4, Start Serial: D6457

1шт.
