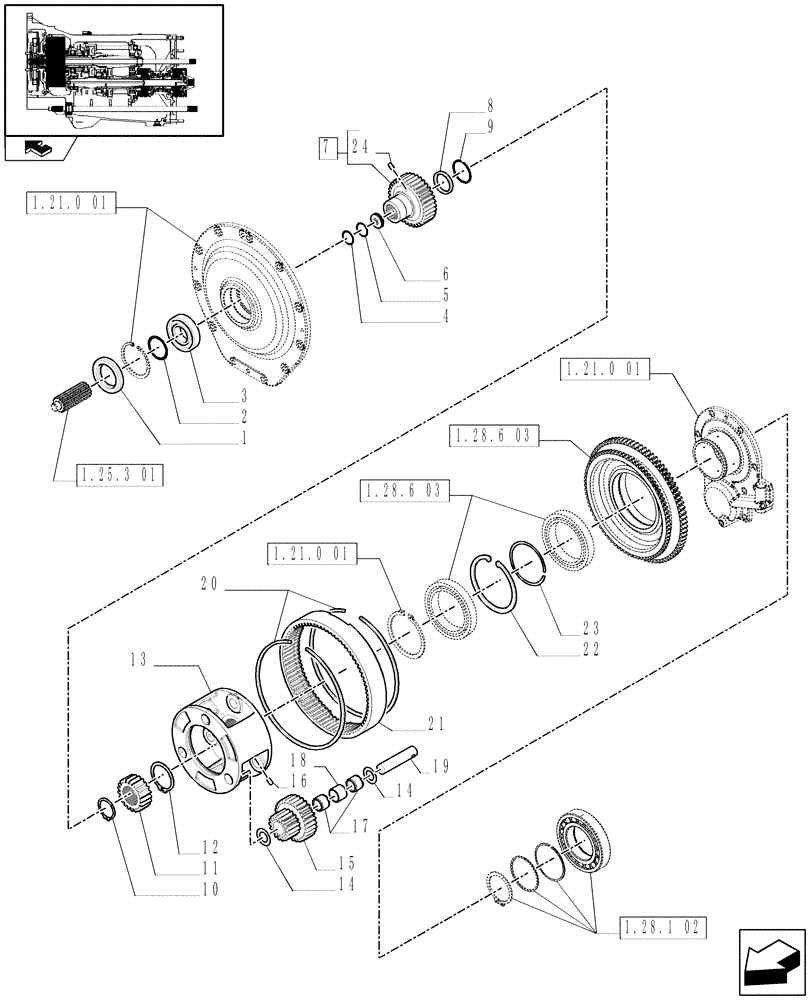

Запчасти Case IH PUMA 210 (1.28.1[01]) - TRANSMISSION 40KPH - PLANETARY DRIVE - C6784 (03) - TRANSMISSION

1

87562125

OIL SEAL,55mm ID x 90mm OD x 10mm Thk

1шт.

2

11069576

SNAP RING,M55, Ext

D=55

1шт.

3

87591494

BALL BEARING,55mm ID x 90mm OD x 18mm W

1шт.

4

11059376

SNAP RING,M34, Int

D=34

1шт.

5

14458180

O-RING,0.103" Thk x 1.174" ID, -123, Cl 5, 75 Duro

1шт.

6

87698696

PLUG,M8 x 1.25 x 11mm L

1шт.

7

87588063

SUN GEAR

1шт.

8

87562123

OIL SEAL,45mm ID x 55mm OD x 4mm Thk

1шт.

9

5149933

SNAP RING,55mm, 1.5mm Thk, Int

D=33

1шт.

10

11069276

SNAP RING,M48, Ext

1шт.

11

87528270

SUN GEAR

1шт.

12

11070376

SNAP RING,M70, Ext

1шт.

13

87528653

PINION CARRIER

GEAR CARRIER

1шт.

14

47133538

WASHER,25mm ID x 42mm OD x 1mm Thk

6шт.

15

84181353

PLANETARY GEAR

3шт.

16

13941870

DOWEL,6mm OD x 16mm L

3шт.

17

47136415

NEEDLE BEARING,25mm ID x 33mm OD x 24mm W

6шт.

18

87528661

SPACER,27mm ID x 33mm OD x 25mm L

3шт.

19

87536554

PIN

3шт.

20

87536557

COUPLING RING,277.3mm OD x 5.5mm Thk

2шт.

21

87528244

RING GEAR,272.3mm ID x 285.5mm OD x 49mm Thk, 78T

1шт.

22

11077176

CIRCLIP,145mm

1шт.

23

87702003

SNAP RING,M105, Int

1шт.

24

87653282

NOZZLE

M8

2шт.
