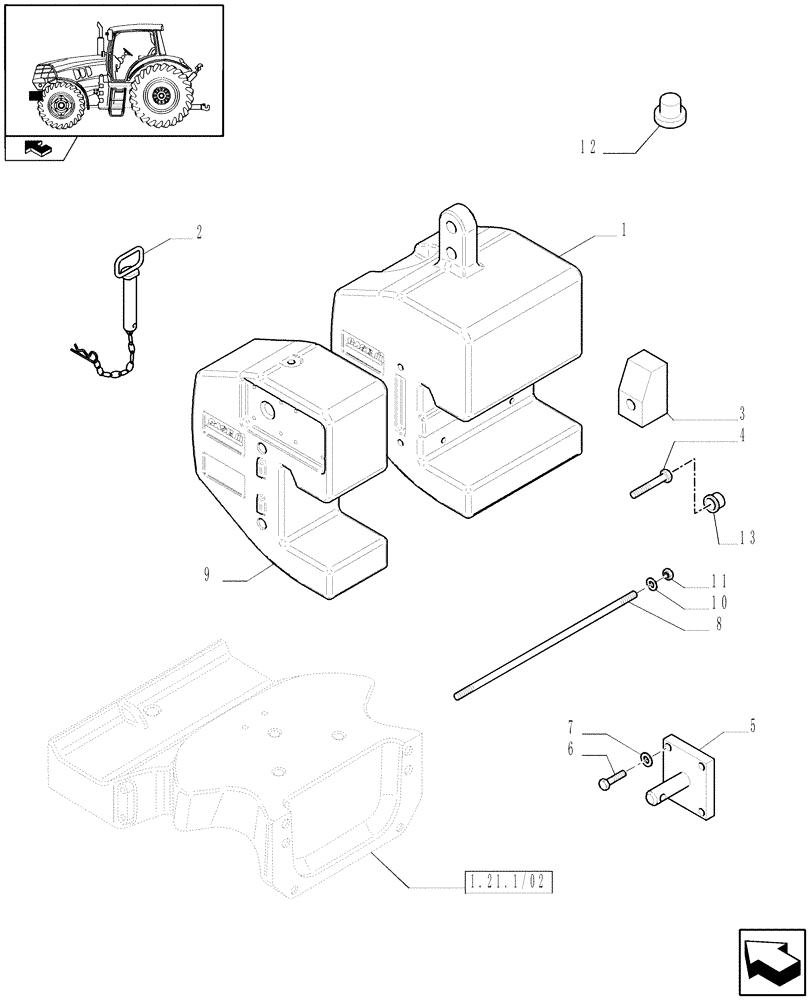

Запчасти Case IH PUMA 210 (1.21.5/01[01]) - (VAR.068) WEIGHT PACK "C" FOR STD&SUS AXLE W. HOOK INCL. INT. CAR. (1200KG TOTAL) - WEIGHT PACK - C7196 (03) - TRANSMISSION

1

87376053

WEIGHT

500 Kg

1шт.

2

44995060

CLEVIS PIN,31mm OD x 315mm L

1шт.

3

87376911

CLAMP,0.932 Kg

2шт.

4

11119921

SCREW,Hex, M16 x 100mm, Cl 8.8

16 x 2 x 100

2шт.

5

87301897

HEADED PIN,28mm OD x 120mm L

2шт.

6

11113021

BOLT,Hex, M12 x 45mm, Cl 8.8

12 x 1.75 x 45

8шт.

7

14496701

WASHER,13.00mm ID x 24.00mm OD x 2.50mm, CST, ZND

8шт.

8

87377164

STUD,M20 x 2.5 x 270.00mm, Cl 8.8, ZND

20 x 270

4шт.

9

87376051

WEIGHT

250 Kg

2шт.

10

14497101

WASHER,M20 x 37 x 3

4шт.

11

12163511

NUT,M20, Cl 8

4шт.

12

5171790

PLUG,18mm, Black

2шт.

13

85700893

COVER

8шт.
