(1.21.5) - (VAR.593) WEIGHT PACK "E" INCLUDING INTEGRAL CARRIER (700KG TOTAL) - WEIGHT PACK

Запчасти Case IH PUMA 210 (1.21.5) - (VAR.593) WEIGHT PACK "E" INCLUDING INTEGRAL CARRIER (700KG TOTAL) - WEIGHT PACK (03) - TRANSMISSION

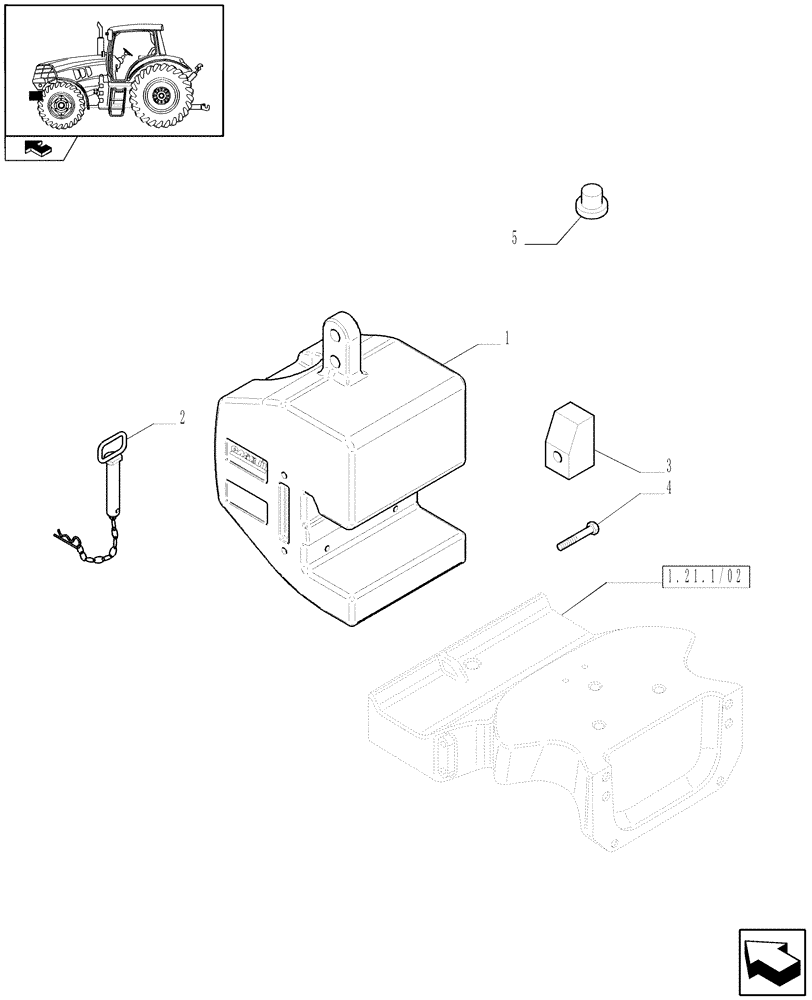

Схема запчастей Case IH PUMA 210 - (1.21.5) - (VAR.593) WEIGHT PACK "E" INCLUDING INTEGRAL CARRIER (700KG TOTAL) - WEIGHT PACK (03) - TRANSMISSION
5
4
3
1
2
home
1.21.1/02
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87376053

WEIGHT

500 Kg

1шт.

2

44995060

CLEVIS PIN,31mm OD x 315mm L

1шт.

3

87376911

CLAMP,0.932 Kg

2шт.

4

11119921

SCREW,Hex, M16 x 100mm, Cl 8.8

16 x 2 x 100

2шт.

5

5171790

PLUG,18mm, Black

4шт.
