Запчасти Case IH PUMA 210 (1.21.3/ B) - FRONT AXLE WITH ACTIVE SUSPENSIONS - VALVE (03) - TRANSMISSION

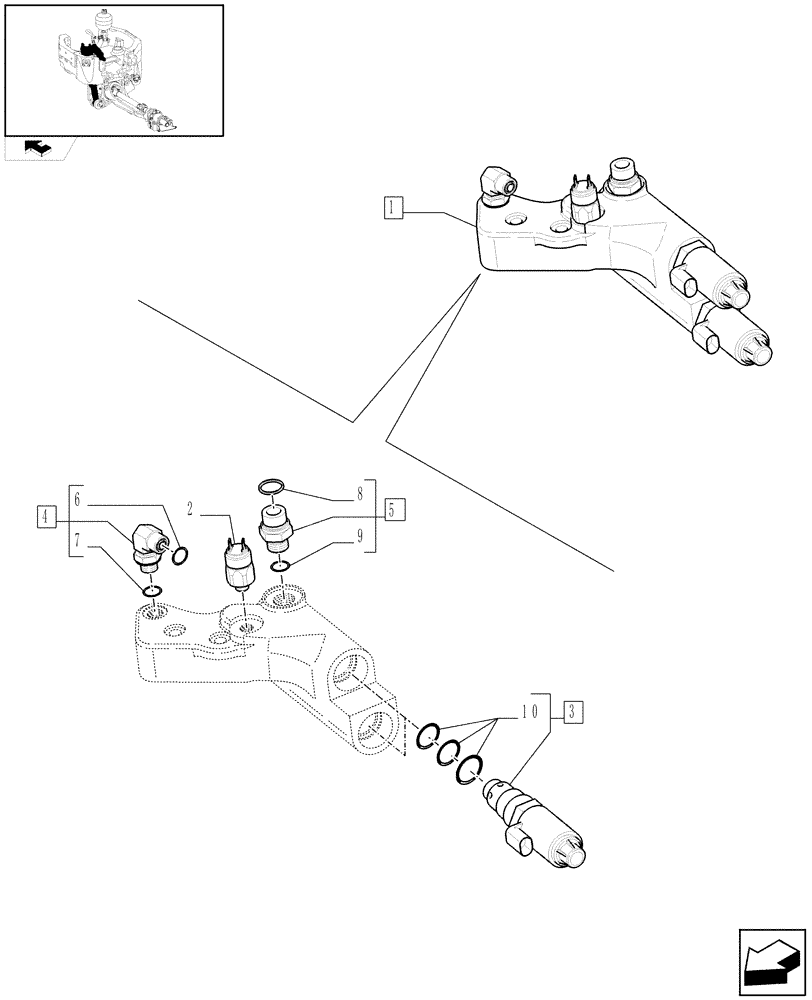

Схема запчастей Case IH PUMA 210 - (1.21.3/ B) - FRONT AXLE WITH ACTIVE SUSPENSIONS - VALVE (03) - TRANSMISSION
9
6
8
10
home
2
5
1
4
3
7

Артикул

Название

Примечание

Количество

1

87383948

ELECTRO-VALVE

ASSY

1шт.

2

87490536

PRESSURE SWITCH

1шт.

3

87383960

SOLENOID VALVE

ASSY

2шт.

4

5185050

ELBOW,M16 x 1.5 x 37mm

1шт.

5

82016498

HYD CONNECTOR,M22 x 1.5 DIN, 1" - 14 ORFS

1шт.

6

5185510

O-RING,1.78mm Thk x 9.25mm ID, 85 Duro

1шт.

7

14437885

O-RING,13.30mm ID x 2.40mm

1шт.

8

82016732

SEAL,19.6mm ID x 24.3mm OD x 1.5mm Thk

1шт.

9

83901443

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

10

84284791

SEAL KIT

1шт.

Выбрано товаров: 10
