Запчасти Case IH PUMA 210 (1.21.3[03]) - (VAR.212-463) FRONT AXLE WITH ACTIVE SUSPENSION - CYLINDER, ACCUMULATOR AND PIPES (03) - TRANSMISSION

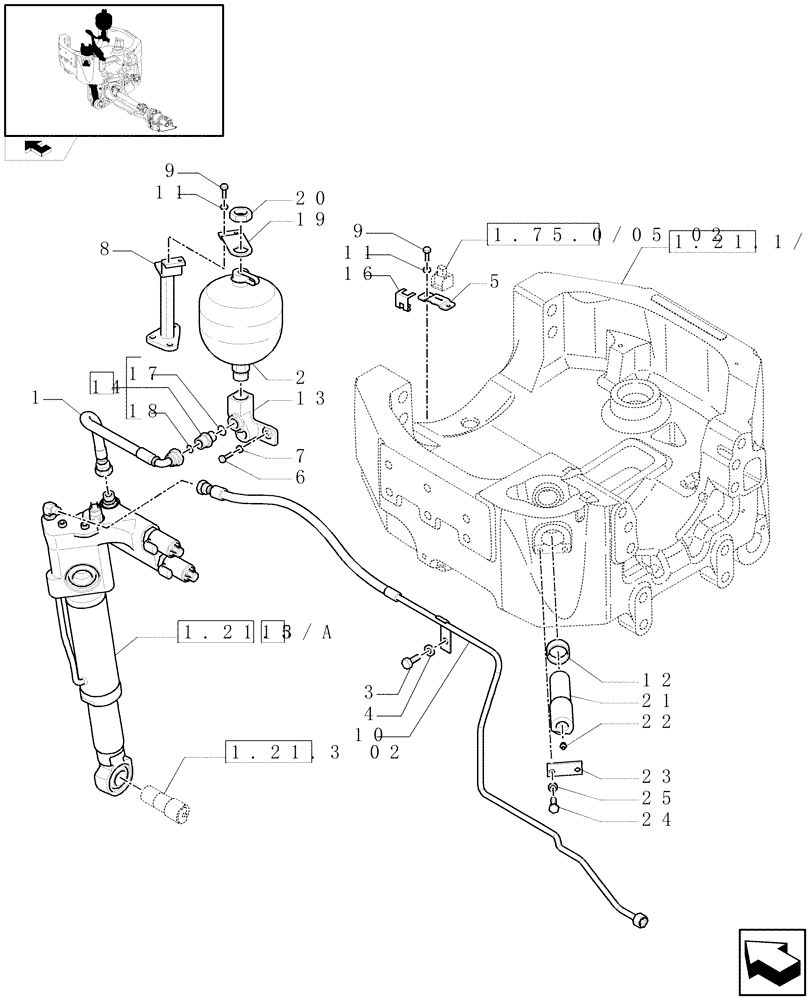

Схема запчастей Case IH PUMA 210 - (1.21.3[03]) - (VAR.212-463) FRONT AXLE WITH ACTIVE SUSPENSION - CYLINDER, ACCUMULATOR AND PIPES (03) - TRANSMISSION
1
9
16
14
8
12
18
4
3
23
1.21.3 02
home
1.21.3/a
1.21.1/03
10
2
20
6
17
13
21
19
5
25
11
7
11
24
22
1.75.0/05 02
15
9

Артикул

Название

Примечание

Количество

1

87545810

HOSE

1шт.

2

87383952

ACCUMULATOR

1шт.

3

11112221

SCREW,Hex, M12 x 25mm, Cl 8.8, Full Thd

1шт.

4

10615879

LOCK WASHER,Serr, M12

1шт.

5

87347720

BRACKET

1шт.

6

16043821

SCREW,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

2шт.

7

10571779

LOCK WASHER,Helical Spring, 8.10mm ID x 14.80mm OD x 2.00mm, ZNM

2шт.

8

87340150

SUPPORT

1шт.

9

10902421

SCREW,Hex, M6 x 20mm, Cl 8.8

4шт.

10

87601956

HYD TUBE,12 mm OD

1шт.

11

10615479

LOCK WASHER,6.4mm ID x 11mm OD x 0.7mm Thk

4шт.

12

87340132

SPACER

1шт.

13

87545808

MANIFOLD

1шт.

14

82016498

HYD CONNECTOR,M22 x 1.5 DIN, 1" - 14 ORFS

1шт.

15

87383950

OPERATING CYLINDER

ASSY

1шт.

16

87319086

MOUNTING CLIP

1шт.

17

82016732

SEAL,19.6mm ID x 24.3mm OD x 1.5mm Thk

1шт.

18

83901443

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

19

87340143

BRACKET

1шт.

20

87536932

THIN NUT

1шт.

21

87340133

PIN

1шт.

22

13407211

LUBE NIPPLE,M10 x 1

1шт.

23

82016870

BRACKET

1шт.

24

83962654

SCREW,Hex, M10 x 1.5 x 20mm, Gr 8.8

M10 x 1.5 x 20

2шт.

25

85700672

LOCK WASHER,M10

2шт.

Выбрано товаров: 25
