Запчасти Case IH PUMA 210 (1.21.0[04]) - TRANSMISSION BOX - SHIELDS AND PIPES (03) - TRANSMISSION

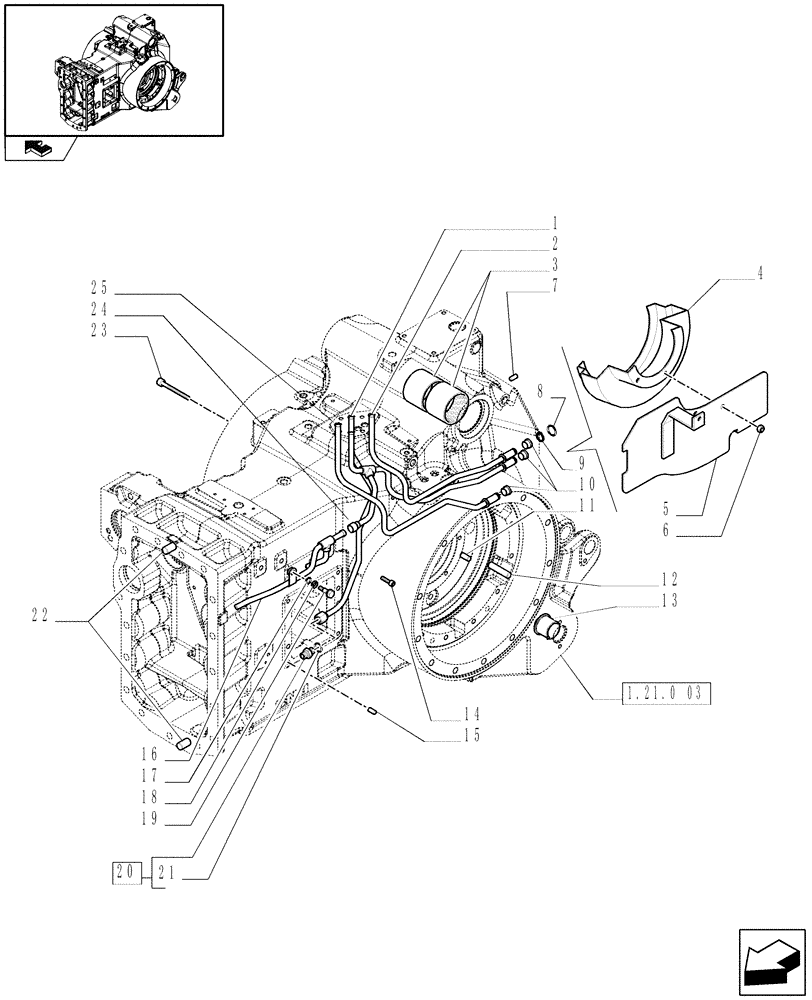

Схема запчастей Case IH PUMA 210 - (1.21.0[04]) - TRANSMISSION BOX - SHIELDS AND PIPES (03) - TRANSMISSION
23
19
21
13
5
15
18
home
1.21.0 03
3
4
9
20
24
1
7
22
2
16
14
25
11
17
12
6
10
8

Артикул

Название

Примечание

Количество

1

87583446

TUBE

4WD

1шт.

2

5195175

TUBE

PTO Clutch Supply, Serial Range: -C6479

1шт.

2

84215874

TUBE,10 mm ID x 12 mm OD

PTO Clutch Supply, Serial Range: D6479-C6806

1шт.

2

84269541

TUBE

, Start Serial: D6806

1шт.

3

5185956

BUSHING,80.1mm ID x 85mm OD x 60mm L

4шт.

4

5198538

SHIELD

1шт.

5

84145789

GUARD

1шт.

6

16100824

NUT,M8, Cl 10

1шт.

7

4985062

DOWEL,15mm OD x 25mm L

2шт.

8

14453182

O-RING,0.07" Thk x 0.489" ID, -14, Cl 9, 70 Duro

3шт.

9

300625

SNAP RING,M16, Ext

, Serial Range: -C6806

3шт.

9

84268818

SNAP RING

, Start Serial: D6806

3шт.

10

5186628

BUSHING,16mm ID x 22mm OD x 14mm L

, Serial Range: -C6806

3шт.

10

84268812

BUSHING,16mm ID x 23mm OD x 16mm L

, Start Serial: D6806

3шт.

11

5110200

DOWEL,12mm OD x 25mm L

D=12 x 25

6шт.

12

5187995

GUIDE PIN,15mm OD x 65mm L

6шт.

13

5194813

BUSHING,37mm ID x 53mm OD x 40mm L

4шт.

14

14306520

HEX SOC SCREW,M8 x 1.25 x 30mm, Cl 8.8, Full Thd

1шт.

15

10839710

DOWEL,M10 x 15.00mm

M10

2шт.

16

87742108

HYD TUBE

1шт.

17

14450581

O-RING,6.86mm ID x 1.78mm Width

1.78 x 6.86

1шт.

18

11190579

BELLEVILLE WASHER,M10 Bolt Size x 20mm OD x 2.3mm Thk

1шт.

19

87742107

SCREW,M8 x 37mm

1шт.

20

5154713

HYD CONNECTOR

M16 x 1.5

1шт.

21

14437885

O-RING,13.30mm ID x 2.40mm

1шт.

22

5185790

DOWEL,18mm OD x 30mm L

D=18 x 30

2шт.

23

1960667

HEX SOC SCREW,M8 x 90mm, Cl 8.8

1шт.

24

87742274

HYD TUBE

, Serial Range: -C6479

1шт.

24

84215877

HYD TUBE

PTO Lubrification, Serial Range: D6479-C6806

1шт.

24

84271168

HYD TUBE

, Start Serial: D6806

1шт.

25

5195176

TUBE

PTO Brake, Serial Range: -C6806

1шт.

25

84269540

TUBE

, Start Serial: D6806

1шт.

Выбрано товаров: 32
