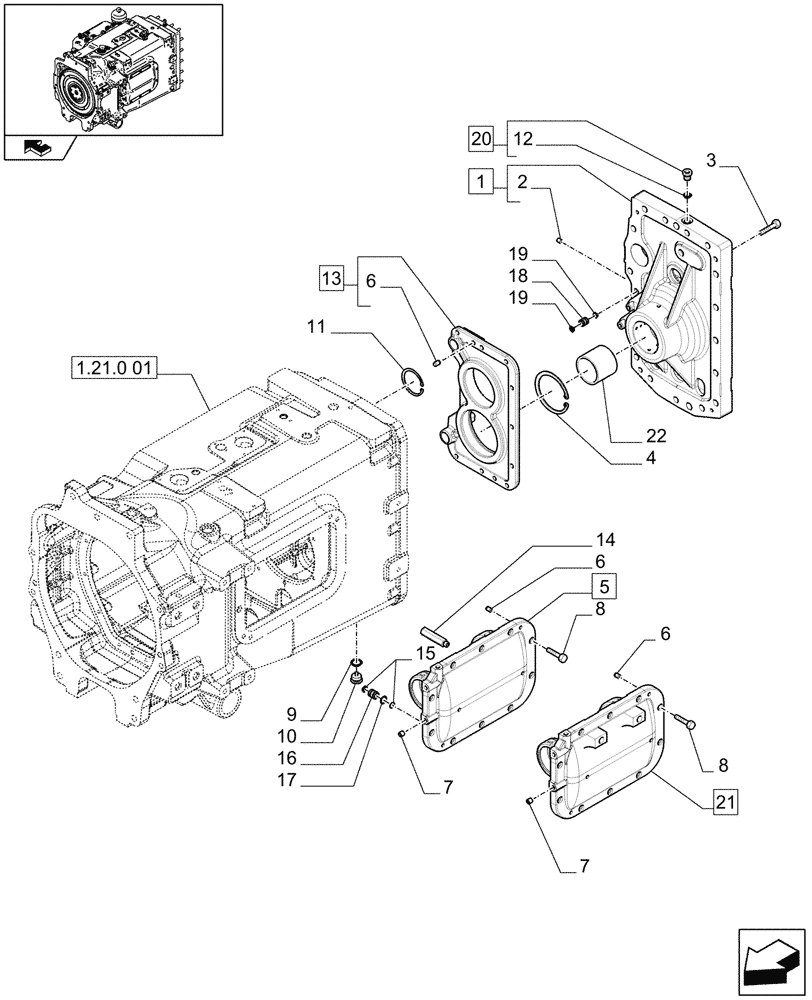

Запчасти Case IH PUMA 210 (1.21.0[02]) - CLUTCH BOX - COVERS (03) - TRANSMISSION

1

87650192

COVER

ASSY, Incl. 2, 22

1шт.

2

10275501

PLUG,Pipe, Hex Skt, M12 x 1.25 x 11mm, Cl 4.8

6шт.

3

14331434

SCREW,M12 x 1.25 x 45mm, Cl 10.9, Full Thd

2шт.

4

11076976

SNAP RING,M140, Int

1шт.

5

87558553

FLANGE COVER CAP

ASSY, Incl. 6, 7, Serial Range: -C7086

1шт.

6

5153109

DOWEL,10mm OD x 15mm L

4шт.

7

10275501

PLUG,Pipe, Hex Skt, M12 x 1.25 x 11mm, Cl 4.8

3шт.

8

14307524

HEX SOC SCREW,M10 x 1.25 x 30mm, Cl 8.8, Full Thd

10шт.

9

14438285

O-RING,29.5mm ID x 3.0mm

1шт.

10

87687750

MAGNETIC PLUG,Hex, M33 X 2 X 16mm

1шт.

11

11061576

SNAP RING,M72, Int

1шт.

12

86598099

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

13

87558636

FLANGE COVER CAP

1шт.

14

87534205

NOZZLE,M10 x 1.25 x 62mm L

4шт.

Q.ty=6 with 50 KPH Trasmission; VAR.042-142

1шт.

15

14453182

O-RING,0.07" Thk x 0.489" ID, -14, Cl 9, 70 Duro

2шт.

16

87567456

BUSHING,6.5mm ID x 14.4mm OD x 14mm L

16mm L

1шт.

17

13397776

SNAP RING,M16, Int

1шт.

18

87561328

BUSHING,11mm ID x 13mm OD x 14mm L

2шт.

19

14453080

O-RING,0.426" ID x 0.07"

4шт.

20

86598044

PLUG,Hex, M14 x 1.5 ORB

1шт.

21

84414270

FLANGE COVER CAP

ASSY, Incl. 6, 7, Start Serial: D7086

1шт.

22

87528657

BUSHING,90mm ID x 110mm OD x 59,5mm L

1шт.
