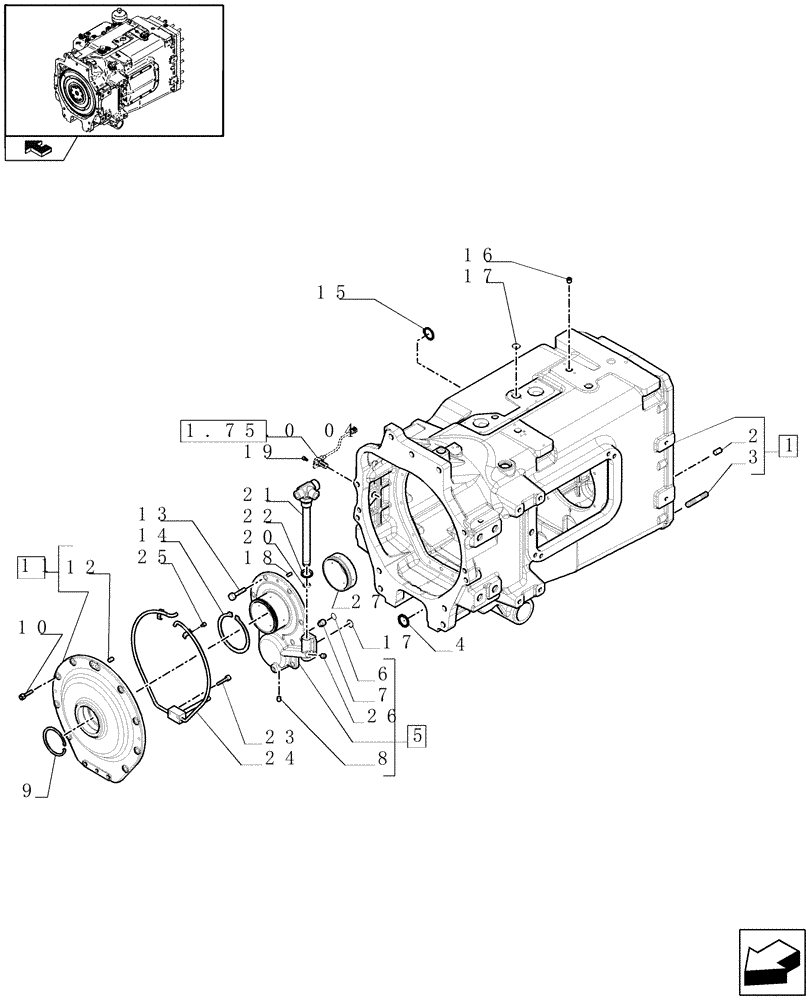

Запчасти Case IH PUMA 210 (1.21.0[01]) - CLUTCH BOX - COVERS AND GEARBOX (03) - TRANSMISSION

1

84150675

TRANSMISSION HOUSING

ASSY, Serial Range: -C6474

1шт.

1

84240081

TRANSMISSION HOUSING

ASSY, Start Serial: D6474

1шт.

2

5185790

DOWEL,18mm OD x 30mm L

D=18 x 30

2шт.

3

13973034

STUD,M16 x 1.5 x 90, 10.9 DAC

M16 x 1.5 x 90

17шт.

4

11061976

SNAP RING,M80, Int

1шт.

5

84150677

FLANGE COVER CAP

ASSY, Incl. 6-8, 26, Serial Range: -C6457

1шт.

5

84231283

FLANGE COVER CAP

ASSY, Incl.6-8, 26, Start Serial: D6457

1шт.

6

79086720

SEAL,Split, 17mm ID x 19.8mm OD x 1.57mm Thk

1шт.

7

87618940

PIPE

1шт.

8

14326050

PLUG,Pipe, Hex Skt, M10 x 1.25 x 11mm, Taper Thd, AL

M10 x 1.25 x 11, Serial Range: -C6457

1шт.

8

14326004

PLUG,Hex Socket, M10 x 1.25 x 11.00mm, STL, DAC

, Start Serial: D6457

1шт.

9

11062476

SNAP RING,M90, Int

1шт.

10

14307620

HEX SOC SCREW,M10 x 1.25 x 35mm, Cl 8.8, Full Thd

9шт.

11

84123542

COVER

ASSY

1шт.

12

5153109

DOWEL,10mm OD x 15mm L

D=10 x 15

2шт.

13

14307521

HEX SOC SCREW,M10 x 1.25 x 30mm, Cl 8.8, Full Thd

9шт.

14

11082176

SNAP RING,M105, Ext

D=105

1шт.

15

11060576

SNAP RING,M52, Int

1шт.

16

10119411

PLUG,M18 x 1.5 x 12.00mm

1шт.

17

14457680

O-RING,0.103" Thk x 0.862" ID, -118, Cl 5, 75 Duro

2шт.

18

5153109

DOWEL,10mm OD x 15mm L

1шт.

19

14305724

HEX SOC SCREW,M6 x 14mm, Cl 8.8, Full Thd

1шт.

20

14457280

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

1шт.

21

87564417

HYD TUBE,14 mm ID x 20 mm OD x 253 mm L

1шт.

22

14438185

O-RING,24mm ID x 3mm

1шт.

23

14305524

HEX SOC SCREW,M6 x 30mm, Cl 8.8, Full Thd

2шт.

24

87556073

TUBE

1шт.

25

14305124

HEX SOC SCREW,M6 x 12mm, Cl 8.8, Full Thd

2шт.

26

10275504

HEX PLUG

, Start Serial: D6457

1шт.

27

84230669

SPACER,85.1mm ID x 90mm OD x 27.75mm L

, Start Serial: D6457

1шт.
