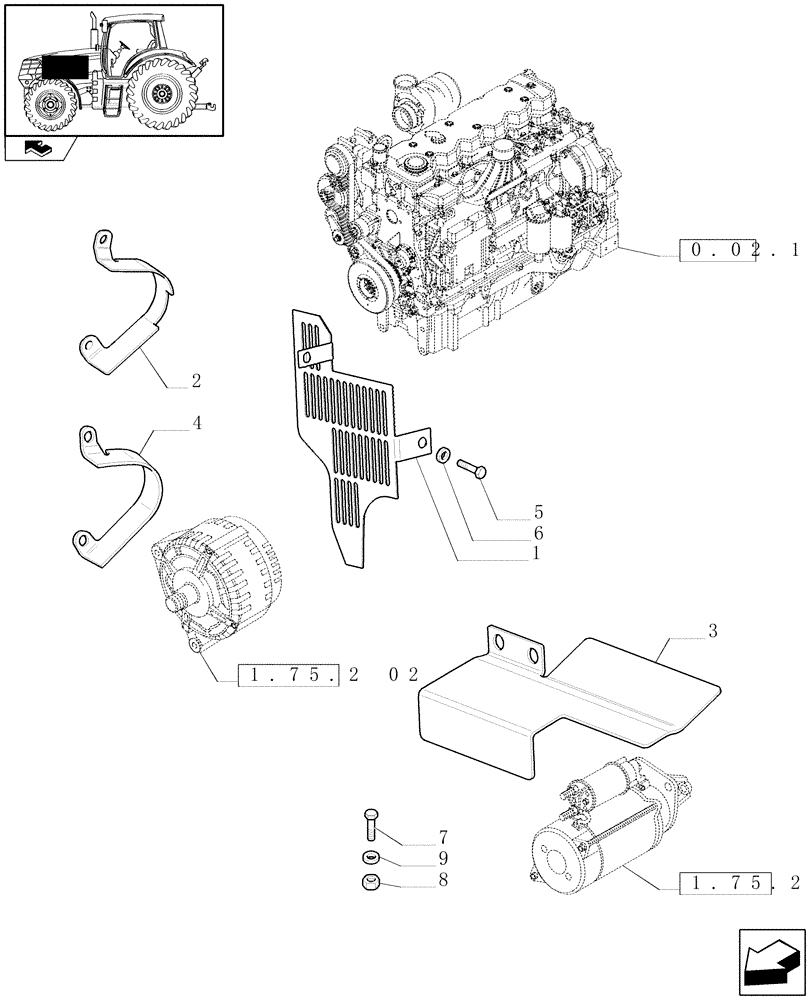

Запчасти Case IH PUMA 210 (1.19.9/01) - (VAR.010/1-011/1) AIR BRAKE GUARDS (02) - ENGINE EQUIPMENT

1

87365151

GUARD

1шт.

2

87632719

GUARD

, Serial Range: -C6888

1шт.

With Front Suspension Axles, VAR.011/1

1шт.

2

84357190

GUARD

, Start Serial: D6888

1шт.

With Front Suspension Axles, VAR.011/1

1шт.

3

87590024

SHIELD

1шт.

4

87581499

GUARD

1шт.

With Standard Axles, VAR.010/1

1шт.

5

11106021

BOLT,Hex, M10 x 1.5 x 20 mm, Cl 8.8, Full Thd

2шт.

6

14496601

WASHER,10.5mm ID x 21mm OD x 2mm Thk

2шт.

7

15212521

BOLT,Hex, M6 x 35mm, Cl 8.8, Full Thd

2шт.

8

15896211

NUT,M6, Cl 8

2шт.

9

17094714

LOCK WASHER,M6 x 13

1шт.
