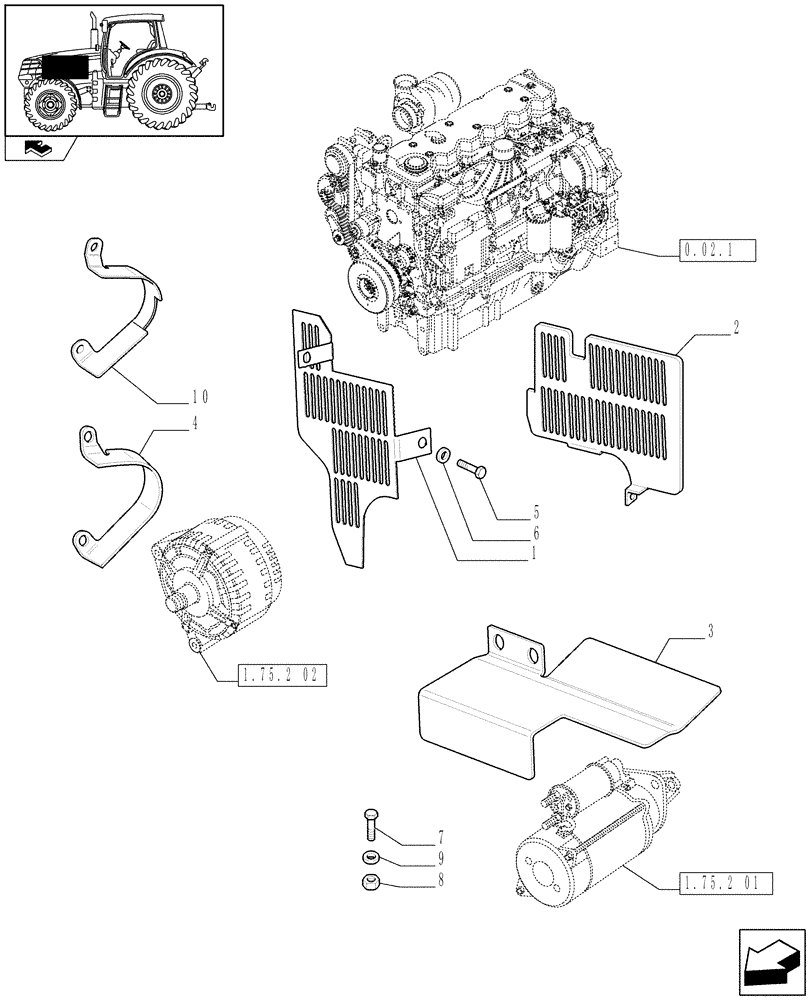

Запчасти Case IH PUMA 210 (1.19.9) - ENGINE GUARD (02) - ENGINE EQUIPMENT

1

87365151

GUARD

1шт.

2

87632715

GUARD

1шт.

2

84177622

GUARD

F/A/Suspension, VAR.212-463

1шт.

3

87590024

SHIELD

1шт.

4

87581499

GUARD

1шт.

5

11106021

BOLT,Hex, M10 x 1.5 x 20 mm, Cl 8.8, Full Thd

2шт.

6

14496601

WASHER,10.5mm ID x 21mm OD x 2mm Thk

2шт.

7

86508568

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8

2шт.

8

15896211

NUT,M6, Cl 8

1шт.

9

17094714

LOCK WASHER,M6 x 13

1шт.

10

87632719

GUARD

F/A/Suspension, VAR.212-463, Serial Range: -C6888

1шт.

10

84357190

GUARD

F/A/Suspension, VAR.212-463, Start Serial: D6888

1шт.
