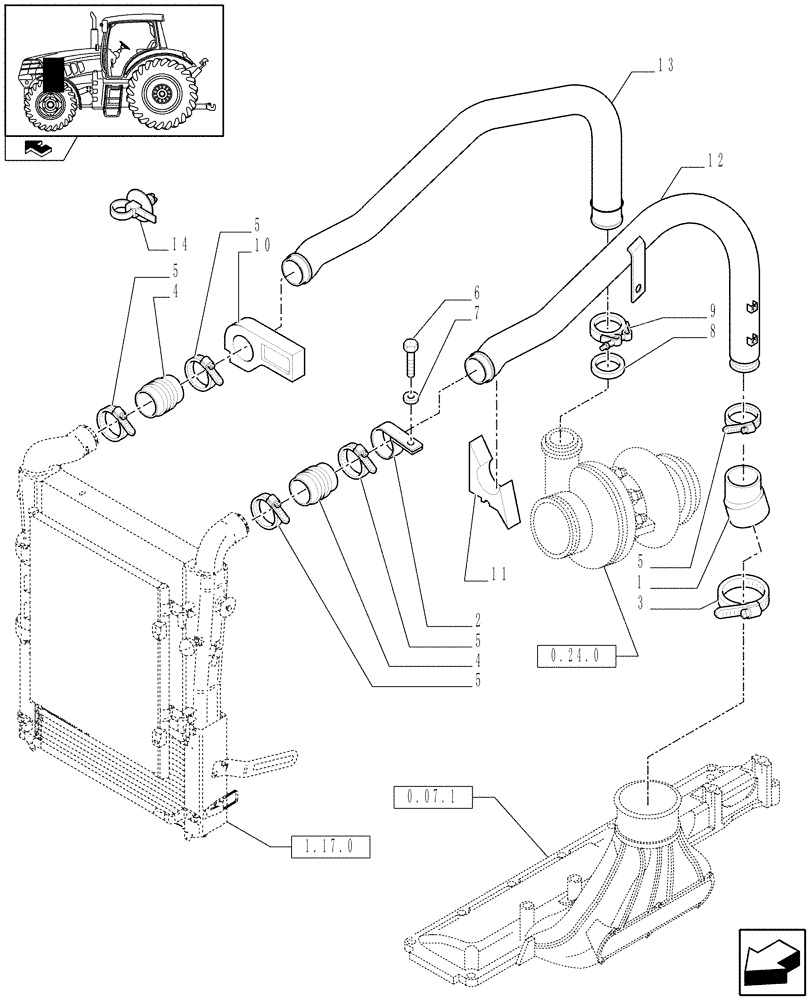

Запчасти Case IH PUMA 210 (1.19.6) - INTERCOOLER AND CONDENSER - PIPES (02) - ENGINE EQUIPMENT

1

82038251

HOSE,63.5mm ID x 98mm L, SAE J20 R4, Class C

1шт.

2

87302175

COLLAR CLAMP

2шт.

3

82036354

HOSE CLAMP,70mm - 90mm

D=70-90

1шт.

4

87709369

SLEEVE,63.5mm ID x 177mm L

2шт.

5

82036353

HOSE CLAMP,60 - 80mm X 14.5mm

D=60-80

1шт.

5

82036351

HOSE CLAMP,50 - 70mm X 14.5mm

D=50-70

4шт.

6

16043421

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

2шт.

7

83903813

SPACER,9.80-10.29mm ID x 28.4mm OD x 2.8mm Thk

2шт.

8

14460081

SEALING RING,-142, Cl 7, 2.362" ID x .103" Thk

SEALRING

1шт.

9

87524288

CLAMP,77mm

1шт.

10

82038253

SEAL

, Serial Range: -C6629

1шт.

10

84273082

SEAL

, Start Serial: D6629

1шт.

11

87391028

RUBBER SEAL

1шт.

12

84147148

RIGID TUBE,63.50 mm OD

LH

1шт.

13

87709382

RIGID TUBE,67 mm OD x 613, 257 mm L

RH

1шт.

14

82033028

CABLE TIE,170mm L

4шт.
