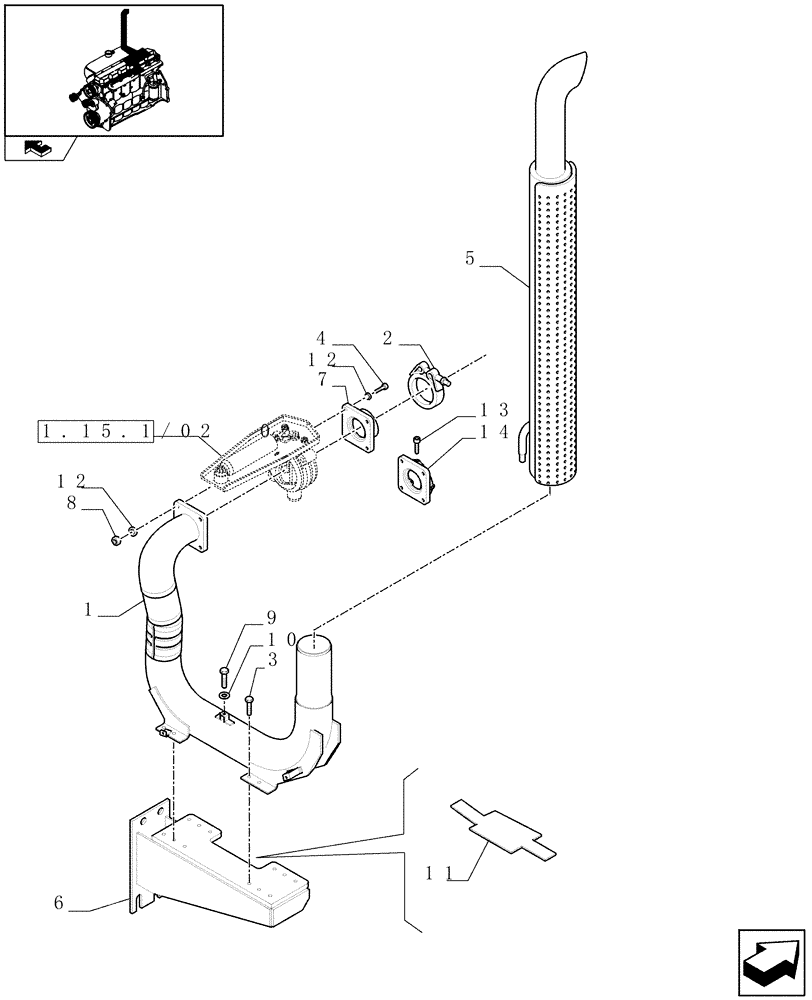

Запчасти Case IH PUMA 210 (1.15.1/02[01A]) - (VAR.040) EXHAUST BRAKE - EXHAUST SYSTEM AND SUPPORT - D6694 (02) - ENGINE EQUIPMENT

1

87651066

EXHAUST SYSTEM PIPE

1шт.

2

87524289

CLAMP,81mm

1шт.

3

14432334

HEX SOC SCREW,M10 x 1.5 x 22mm, Cl 10.9, Full Thd

8шт.

4

43133

BOLT,Hex, M8 x 1.25 x 80mm, Cl 8.8

4шт.

For PUMA 165, PUMA 180, PUMA 195, PUMA 210 Models only

1шт.

4

16044621

SCREW,Hex, M8 x 70mm, Cl 8.8

4шт.

For PUMA 225 Model only

1шт.

5

84304605

MUFFLER

1шт.

6

87568617

SUPPORT

1шт.

7

87651109

FLANGE

1шт.

8

43362

NUT,M8 x 1.25, Cl 10

4шт.

9

16043424

SCREW,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

5шт.

10

12646704

WASHER,8.15mm ID x 20mm OD x 2mm Thk

5шт.

11

87590157

DEFLECTOR

1шт.

12

14496504

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

8шт.

13

87746749

SCREW,M8 x 1.25 x 1.25mm

3шт.

For PUMA 225 Model only

1шт.

14

84361134

FLANGE

1шт.

For PUMA 225 Model only

1шт.
