Запчасти Case IH PUMA 200 (88.090.06) - DIA KIT - REAR FENDER EXTENSIONS (88) - ACCESSORIES

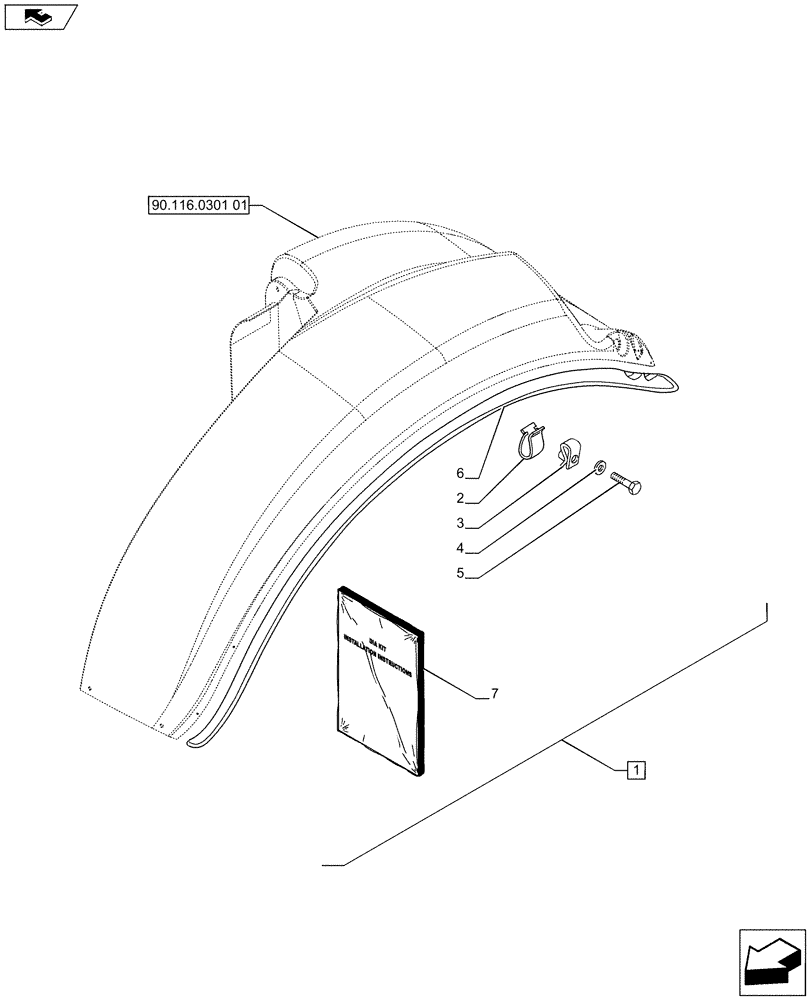

Схема запчастей Case IH PUMA 200 - (88.090.06) - DIA KIT - REAR FENDER EXTENSIONS (88) - ACCESSORIES
4
2
6
1
home
3
7
90.116.0301 01
5

Артикул

Название

Примечание

Количество

1

718293014

DIA KIT, TRACTOR

Rear Fender Extensions, Contains Ref. 2-6 & Installation Instructions

1шт.

Refer to Installation Instructions for Correct Assembly Procedure

1шт.

2

87622826

SPRING CLIP,0.5mm Thk

14шт.

3

15896411

NUT,Hex, M5, 4.70mm High, Cl 8

8шт.

4

10977621

BOLT,Hex, M5 x 12mm, Cl 8.8, Full Thd

8шт.

5

10519301

WASHER,5.3mm ID x 9.55mm OD x 1mm Thk

16шт.

6

84349866

FENDER EXTENSION

LH

1шт.

6

84349867

FENDER EXTENSION

RH

1шт.

7

84142898

INSTRUCTION

1шт.

Выбрано товаров: 9
