Запчасти Case IH PUMA 200 (88.090.03) - DIA KIT - STORAGE BOX (88) - ACCESSORIES

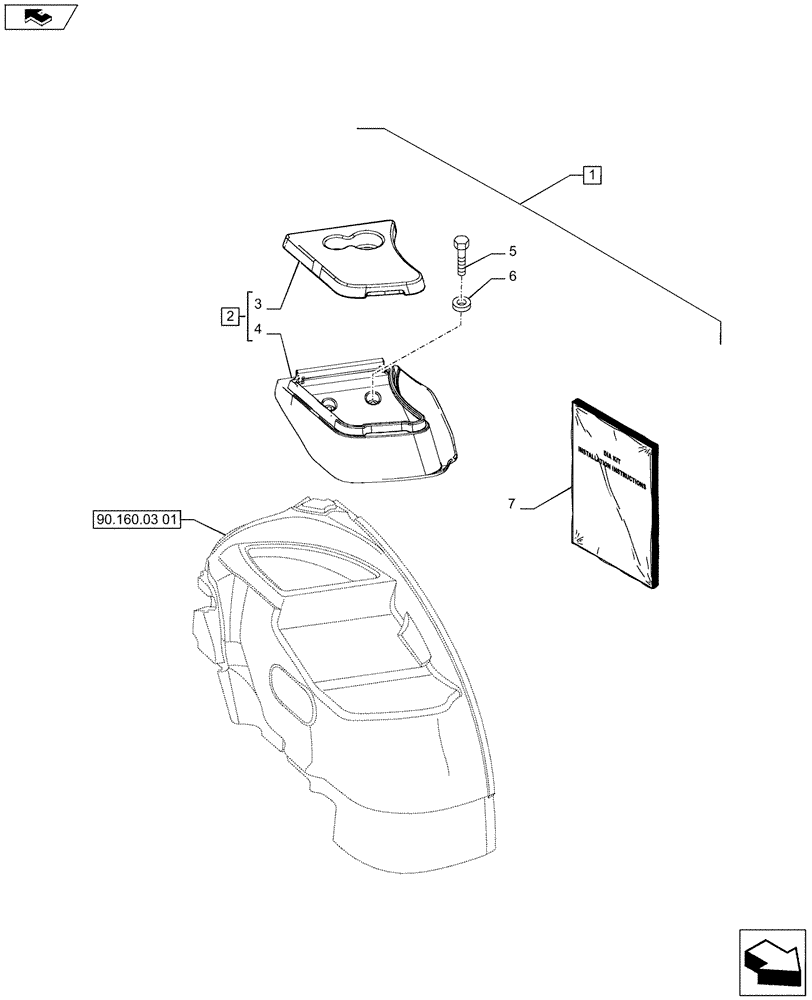

Схема запчастей Case IH PUMA 200 - (88.090.03) - DIA KIT - STORAGE BOX (88) - ACCESSORIES
4
home
90.160.03 01
2
3
5
6
1
7

Артикул

Название

Примечание

Количество

1

710671024

DIA KIT, TRACTOR

LH Cab Storage Box, Contains Ref. 2-6 & Installation Instructions

1шт.

Refer to Installation Instructions for Correct Assembly Procedure

1шт.

2

82031621

CAB STORAGE BOX

Contains Ref. 3,4

1шт.

3

82031622

SOFT TRIM

1шт.

4

82027464

TOP COVER

1шт.

5

16043224

BOLT,Hex, M8 x 16mm, Cl 8.8

3шт.

6

14496504

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

3шт.

7

84146955

INSTRUCTION

1шт.

Выбрано товаров: 8
