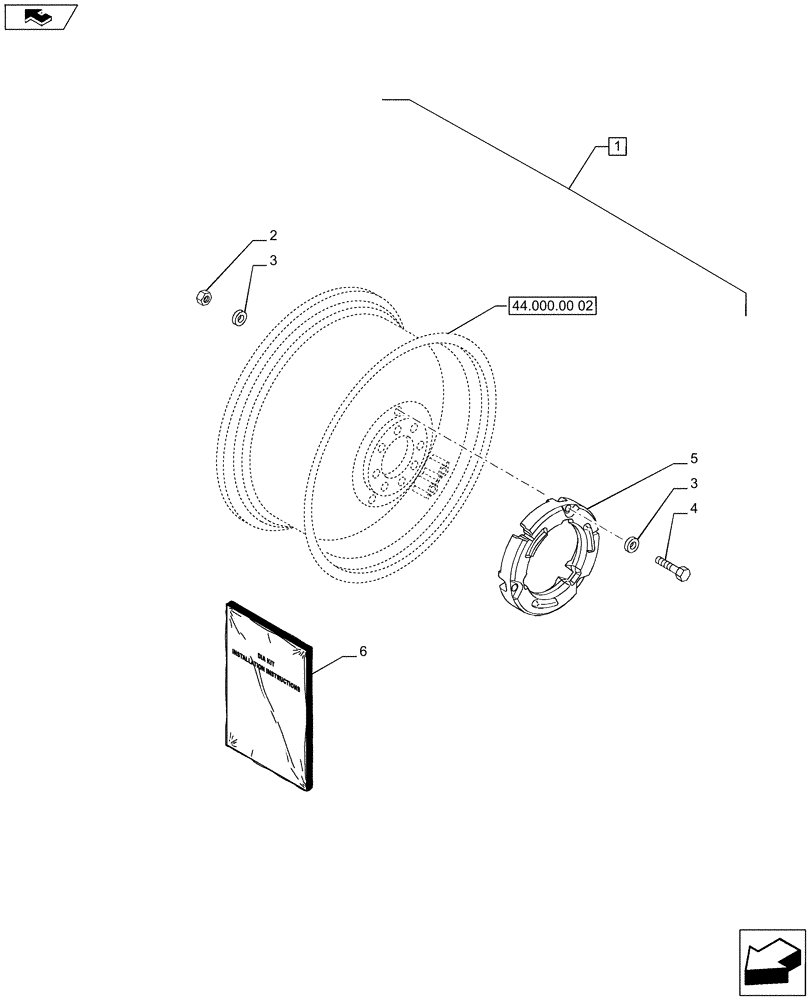

Запчасти Case IH PUMA 200 (88.037.14) - DIA KIT - REAR WHEEL WEIGHTS (88) - ACCESSORIES

1

710013014

DIA KIT, TRACTOR

2x250 lbs Rear Wheel Ballast Adaptor Rings, Contains Ref. 2-6 & Installation Instructions

1шт.

Refer to Installation Instructions for Correct Assembly Procedure

1шт.

2

10790524

NUT,M16 x 1.5

12шт.

3

83924746

WASHER,17mm ID x 40mm OD x 5mm Thk

16 x 40 x 5

24шт.

4

15981834

BOLT,Hex, M16 x 1.5 x 120mm, Cl 10.9

6шт.

4

15982537

BOLT,Hex, M16 x 1.5 x 160mm, Cl 10.9

6шт.

4

15982831

BOLT,Hex, M16 x 1.5 x 180mm, Cl 10.9

6шт.

5

87643827

WHEEL WEIGHT

(113 KG-250 LBS)

2шт.

6

84181624

1шт.
