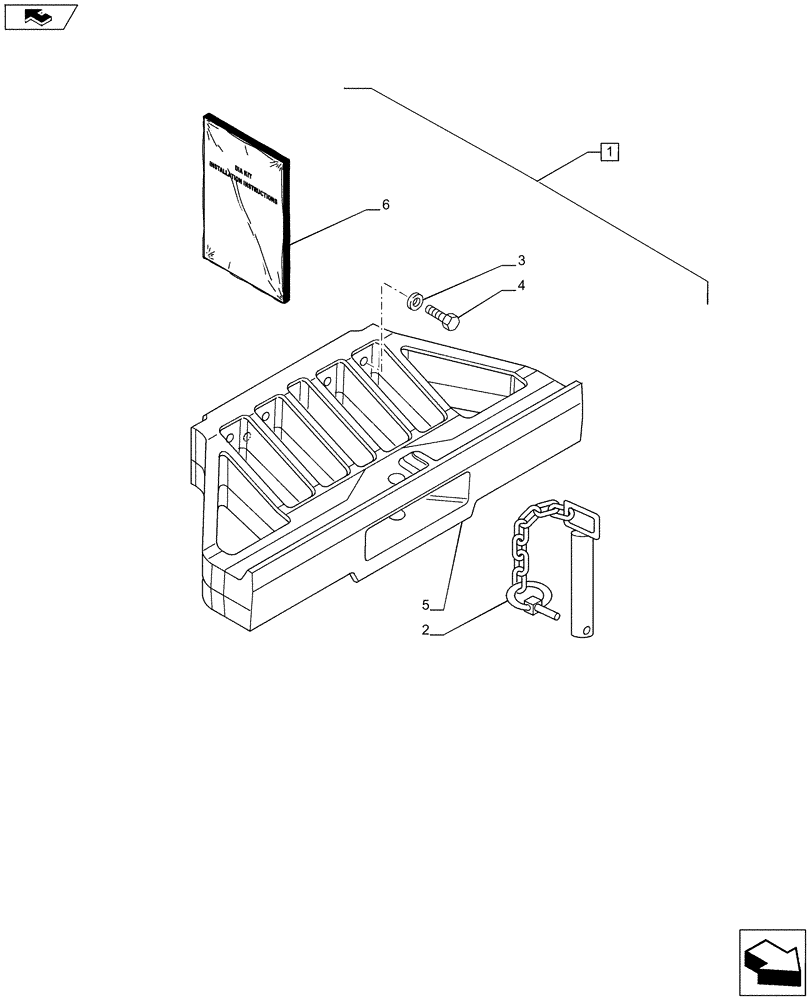

Запчасти Case IH PUMA 200 (88.037.07) - DIA KIT - WIDE WEIGHT CARRIER (88) - ACCESSORIES

1

718018014

DIA KIT, TRACTOR

Wide Weight Carrier, Contains Ref. 2-5 & Installation Instructions

1шт.

Refer to Installation Instructions for Correct Assembly Procedure

1шт.

2

44995060

CLEVIS PIN,31mm OD x 315mm L

1шт.

3

11191774

BELLEVILLE WASHER,M20 Bolt Size x 38mm OD x 4.6mm Thk

6шт.

4

412346

BOLT,Hex, M20 x 2.5 x 90mm, Cl 8.8

6шт.

5

82031491

WEIGHT CARRIER

1шт.

6

84147635

INSTRUCTION

1шт.
