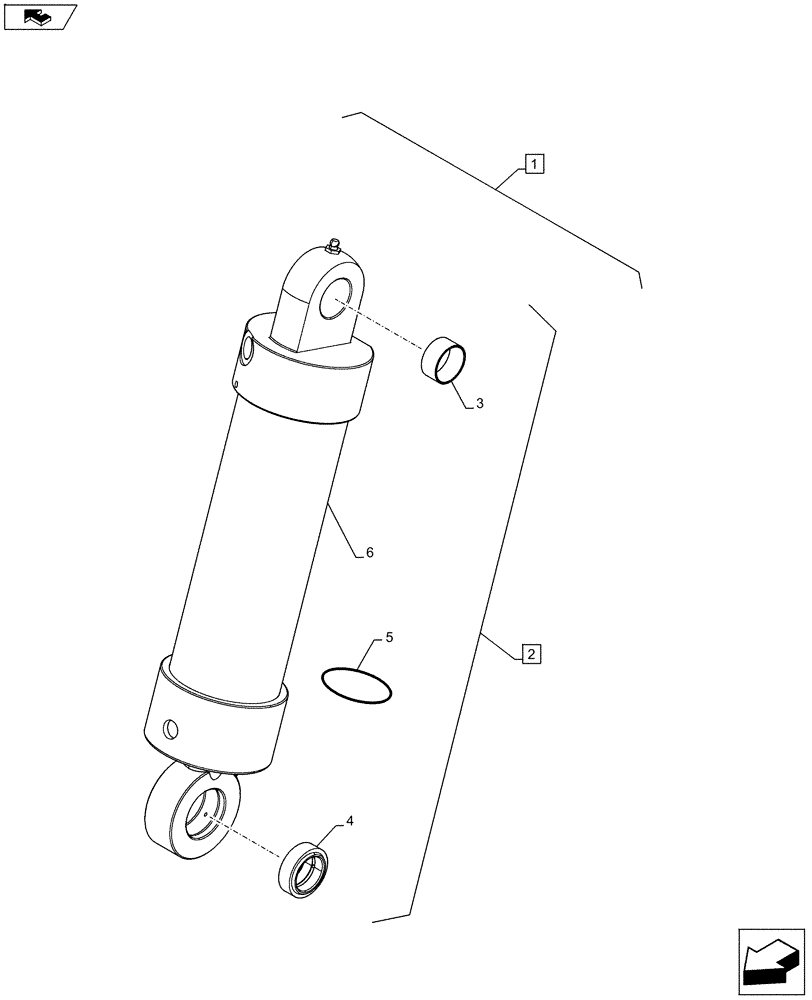

Запчасти Case IH PUMA 200 (88.035.10[09]) - DIA KIT - FRONT HPL FOR SUSPENDED AND STD AXLES, LESS PTO, LESS COUPLER - HYDRAULIC CYLINDER (88) - ACCESSORIES

1

718062024

DIA KIT, TRACTOR

Front HPL for Suspended and STD Axles, Less PTO, Less Couplers, Contains Ref. 2-6

1шт.

Refer to Installation Instructions for Correct Assembly Procedure

1шт.

2

84486252

LIFT CYLINDER,Double Acting, 40mm Rod, 252mm Stroke

LH, ASSY, Contains Ref. 2-6

1шт.

2

84470637

LIFT CYLINDER,Double Acting, 40mm Rod, 252mm Stroke

RH, ASSY, Contains Ref. 2-6

1шт.

3

84472378

BUSHING

1шт.

4

84472283

ARTICULATION,30mm ID

1шт.

5

84472381

SEAL KIT

1шт.

6

NSS

NOT SOLD SEPARAT

1шт.
