Запчасти Case IH PUMA 200 (88.035.09[01]) - DIA KIT - ELECTRONIC MID MOUNTED VALVES - COVER SUPPORT AND PIPES (88) - ACCESSORIES

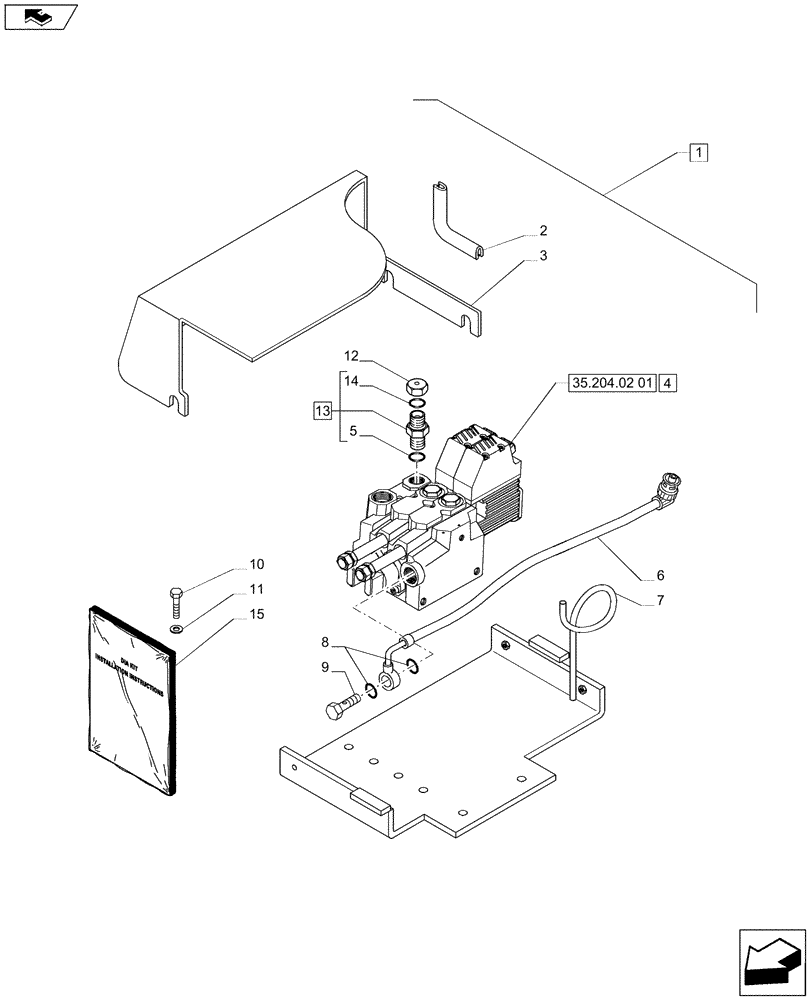

Схема запчастей Case IH PUMA 200 - (88.035.09[01]) - DIA KIT - ELECTRONIC MID MOUNTED VALVES - COVER SUPPORT AND PIPES (88) - ACCESSORIES
15
13
2
12
7
8
14
5
10
3
4
6
9
1
home
35.204.02 01
11

Артикул

Название

Примечание

Количество

1

719980024

DIA KIT, TRACTOR

Electronic Mid Mount Kit 2 Valves + Joystick with Proportional Simultaneous Control of 3rd Service, Contains Ref. 2-14 & Installation Instructions

1шт.

Refer to Installation Instructions for Correct Assembly Procedure

1шт.

2

83964601

MOLDING,164mm L

164-166

1шт.

2

82036856

MOLDING,355mm L

355-360

1шт.

2

82869674

MOLDING,88.5mm L

88.5-89

1шт.

3

87736308

COVER ASSY

1шт.

4

84214464

CONTROL VALVE

1шт.

4

84214464R

REMAN-HYD VALVE

Reman Valve Assy

1шт.

4

84214464C

CORE-VALVE HYD

Core Return Number

1шт.

5

5185510

O-RING,1.78mm Thk x 9.25mm ID, 85 Duro

1шт.

6

87736301

HOSE ASSY.,15.88mm ID x 800mm L, SAE 100R3

RETURN

1шт.

7

87598923

SUPPORT

1шт.

8

5165897

SEALING WASHER,22.7mm ID x 30mm OD x 2mm Thk

M22

2шт.

9

5112588

BANJO BOLT,M22 x 1.5 x 40mm

1шт.

10

16040821

BOLT,Hex, M10 x 1.5 x 40mm, Cl 8.8, Full Thd

3шт.

10

16043421

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

3шт.

11

12626201

WASHER,10.2mm ID x 25mm OD x 3mm Thk

3шт.

11

10519604

WASHER,8.15mm ID x 17mm OD x 2mm Thk

3шт.

12

82016749

PLUG,11/16-16 ORFS

1шт.

13

5196844

HYD CONNECTOR

Contains Ref. 5,14

1шт.

14

14437785

O-RING,11.3mm ID x 2.4mm

1шт.

15

87756103

INSTRUCTION

1шт.

Выбрано товаров: 22
