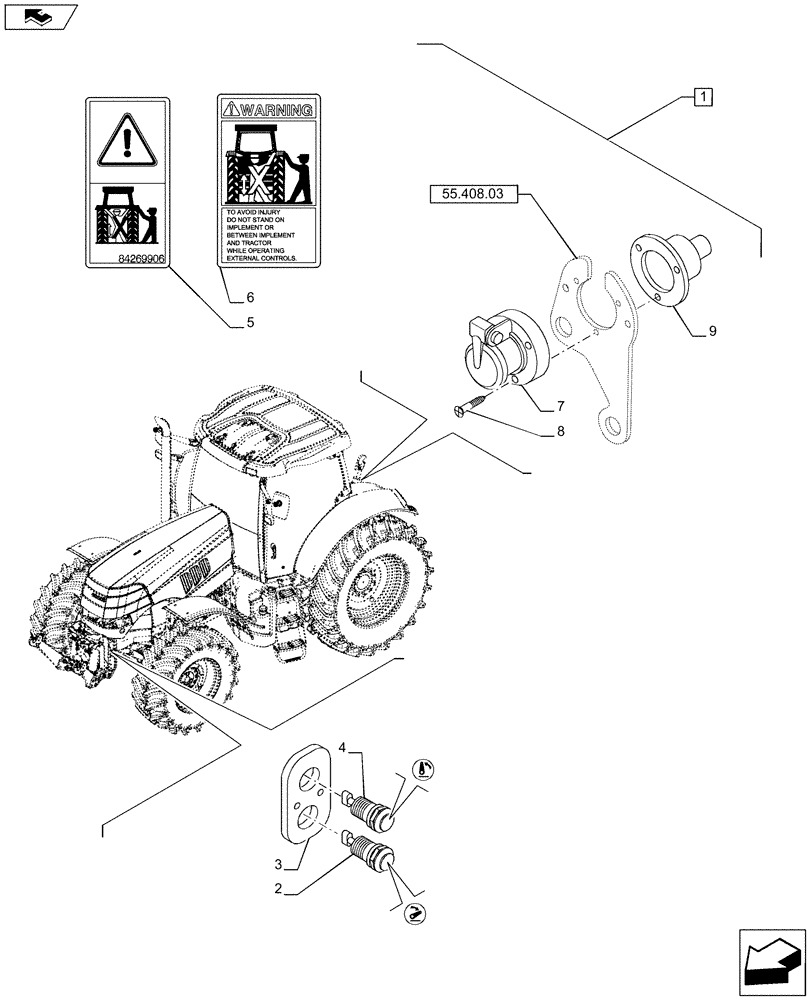

Запчасти Case IH PUMA 200 (88.035.07[05]) - DIA KIT - FRONT HPL FOR MID MOUNT REMOTES LESS PTO, WITH AUX. COUPLERS - SWITCHES (88) - ACCESSORIES

1

710065074

DIA KIT, TRACTOR

Front Linkage for Mid Mount Remotes with Aux. Couplers, Contains Ref. 2-9

1шт.

Refer to Installation Instructions for Correct Assembly Procedure

1шт.

2

87339137

SWITCH ASSY

Front Hitch Lower, External RH

1шт.

3

87348408

MOUNTING PARTS

1шт.

4

87339136

SWITCH ASSY

Front Hitch Raise, External LH

1шт.

5

84269906

DECAL

1шт.

6

87307968

DECAL

1шт.

7

83959716

POWER SOCKET,7 Pins

1шт.

8

260-14524

SELF-TAP SCREW,Cross Pan Hd, #10 x 1 1/2"

3шт.

9

82013268

BOOT

1шт.
