Запчасти Case IH PUMA 200 (88.035.07[03]) - DIA KIT - FRONT HPL FOR MID MOUNT REMOTES LESS PTO, WITH AUX. COUPLERS - PIPES AND BRACKETS (88) - ACCESSORIES

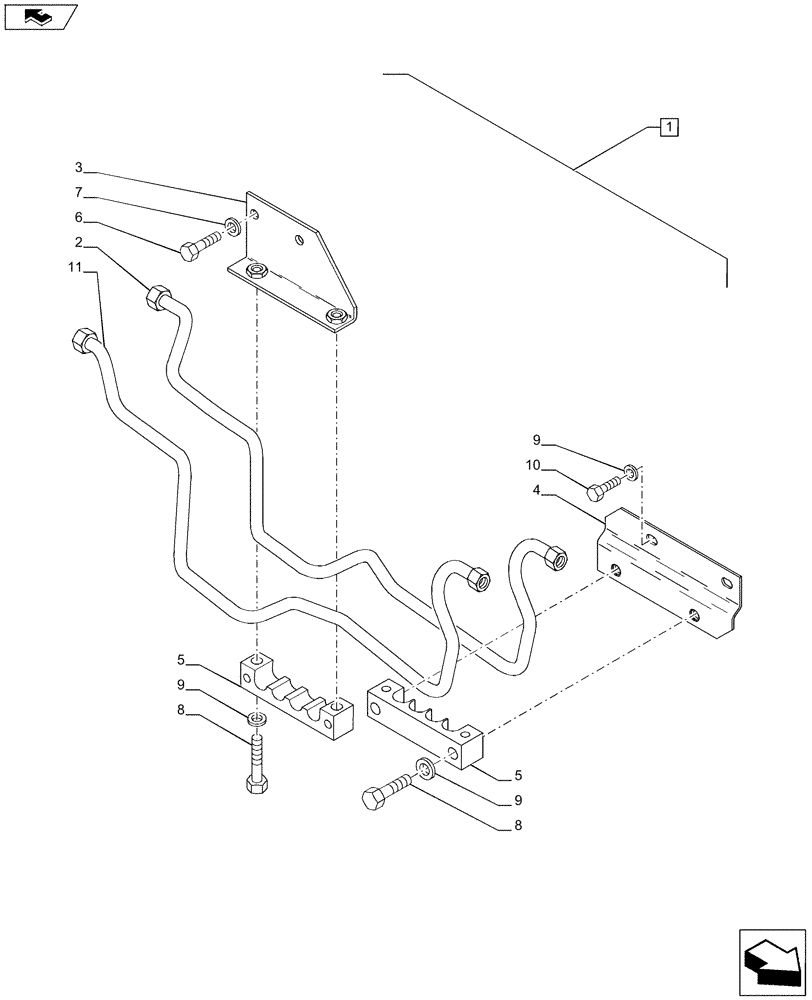

Схема запчастей Case IH PUMA 200 - (88.035.07[03]) - DIA KIT - FRONT HPL FOR MID MOUNT REMOTES LESS PTO, WITH AUX. COUPLERS - PIPES AND BRACKETS (88) - ACCESSORIES
5
9
3
8
6
4
9
home
5
10
1
8
2
7
11
9

Артикул

Название

Примечание

Количество

1

710065074

DIA KIT, TRACTOR

Front Linkage for Mid Mount Remotes with Aux. Couplers, Contains Ref. 2-11

1шт.

Refer to Installation Instructions for Correct Assembly Procedure

1шт.

2

87498336

HYD TUBE

1шт.

Cylinder Raise

1шт.

3

87346861

BRACKET

1шт.

4

87346863

BRACKET

1шт.

5

87579043

CLAMP,4 Hoses

2шт.

6

11112121

SCREW,Hex, M12 x 20mm, Cl 8.8, Full Thd

2шт.

7

14496701

WASHER,13.00mm ID x 24.00mm OD x 2.50mm, CST, ZND

2шт.

8

16044021

SCREW,Hex, M8 x 1.25 x 40mm, Cl 8.8

4шт.

9

14496501

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

6шт.

10

16043421

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

2шт.

11

87736287

HYD TUBE,16 mm OD x 419 mm L

3шт.

Cylinder Lower

1шт.

Выбрано товаров: 14
