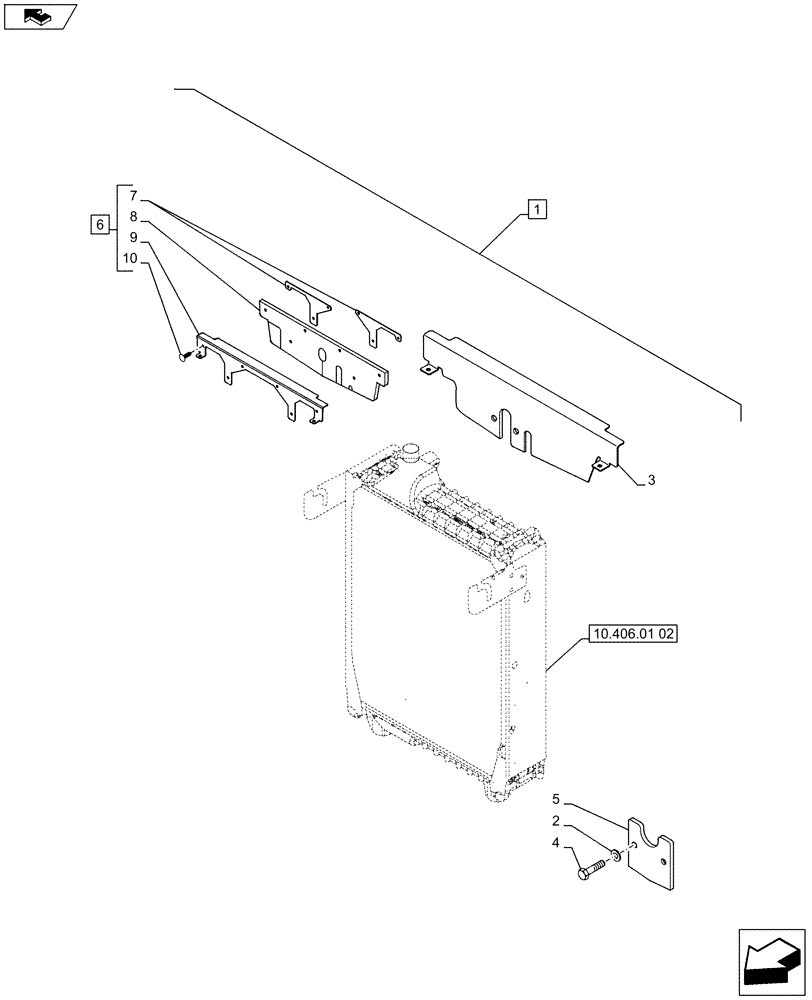

Запчасти Case IH PUMA 200 (88.035.06[03]) - DIA KIT - AUXILIARY COUPLERS FOR FRONT HPL - SUPPORTS - D7370 (88) - ACCESSORIES

1

710066024

DIA KIT, TRACTOR

Auxiliary Front Coupler Kit for Front Linkage Fed from Rear Remote Equipped Vehicle for STD and Suspended Axles, Contains Ref. 2 - 6

1шт.

Refer to Installation Instructions for Correct Assembly Procedure

1шт.

2

14496401

WASHER,M6.4 x 12.00mm x 1.60mm

2шт.

3

87701774

DEFLECTOR

, Serial Range: -C7370

1шт.

4

10979421

SCREW,Hex, M6 x 10mm, Cl 8.8

2шт.

5

87390678

PLATE

, Serial Range: -C7370

1шт.

6

84543377

DEFLECTOR

ASSY, Incl 7 - 10, Start Serial: D7370

1шт.

7

87649703

DEFLECTOR

2шт.

8

84543379

FOAM

1шт.

9

84543378

BAFFLE

1шт.

10

87635853

STUD,7.1mm D

6шт.
