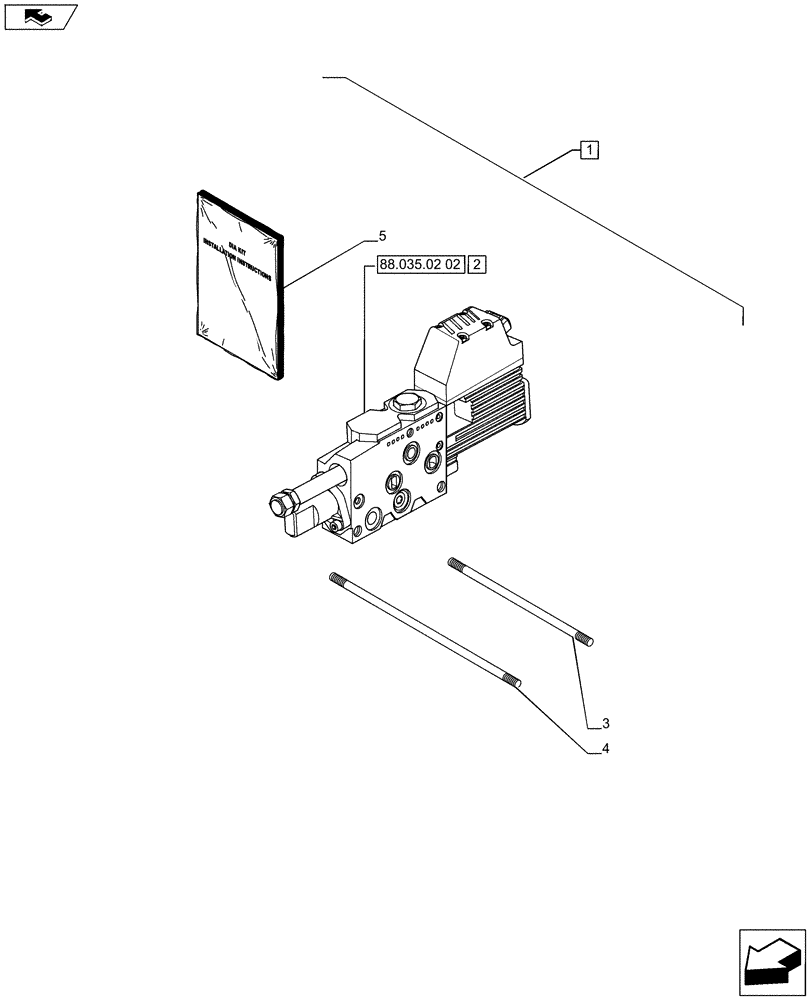

Запчасти Case IH PUMA 200 (88.035.02[01]) - DIA KIT - SINGLE SLICE (88) - ACCESSORIES

1

718756014

DIA KIT, TRACTOR

Add Single Slice to Electronic MMV, Contains Ref. 2-4 & Installation Instructions

1шт.

Refer to Installation Instructions for Correct Assembly Procedure

1шт.

2

84151263

ELECTRO-VALVE

1шт.

2

84151263R

REMAN-HYD VALVE

Reman for New PN 84151263

1шт.

2

84151263C

CORE-VALVE HYD

Return Number

1шт.

84214463R

REMAN-HYD VALVE

PUMA 170, PUMA 185, PUMA 200, PUMA 215, PUMA 230 All (12/10-), Reman For New P/N 84151263

1шт.

84214463C

CORE-VALVE HYD

Return Number

1шт.

3

87520006

TIE-ROD

3шт.

4

87371933

TIE-ROD

3шт.

5

84139527

INSTRUCTION

1шт.
