(88.033.05[10]) - DIA KIT - PNEUMATIC TRAILER BRAKE (UK) - GUARD

Запчасти Case IH PUMA 200 (88.033.05[10]) - DIA KIT - PNEUMATIC TRAILER BRAKE (UK) - GUARD (88) - ACCESSORIES

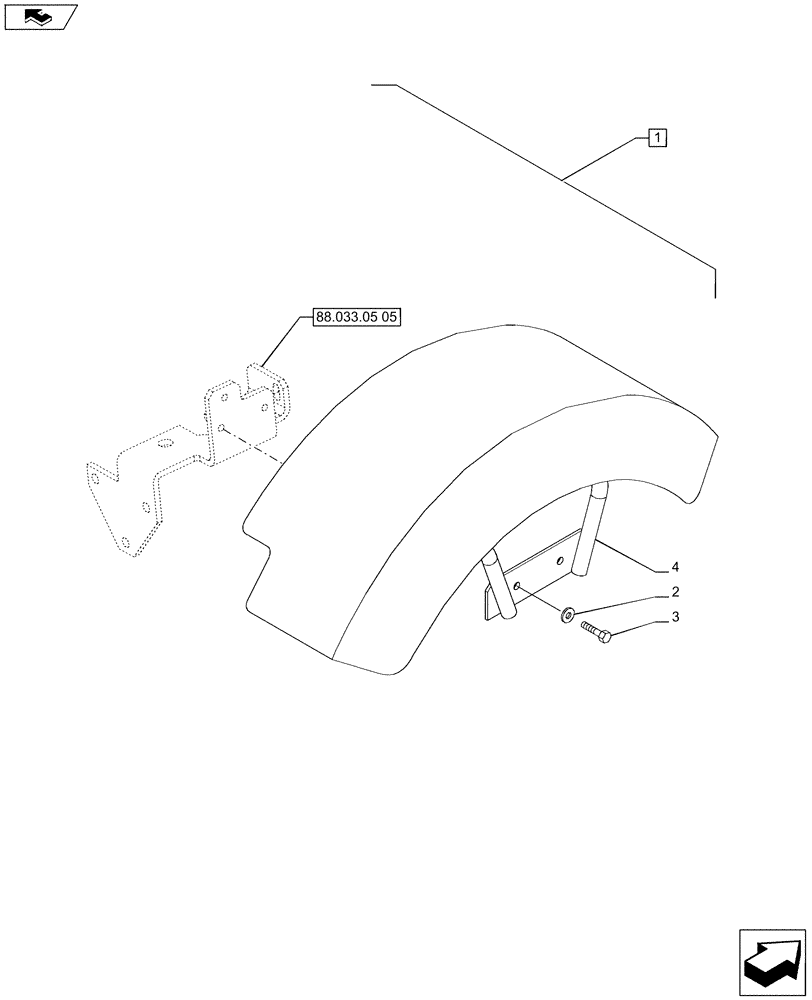

Схема запчастей Case IH PUMA 200 - (88.033.05[10]) - DIA KIT - PNEUMATIC TRAILER BRAKE (UK) - GUARD (88) - ACCESSORIES
88.033.05 05
home
4
3
1
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

710178214

DIA KIT, TRACTOR

Pneumatic Trailer Brake (UK), Contains Ref. 2-4

1шт.

Refer to Installation Instructions for Correct Assembly Procedure

1шт.

2

14496501

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

M8 x 16

2шт.

3

16043821

SCREW,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

M8 x 30

2шт.

4

87667105

GUARD

1шт.
