Запчасти Case IH PUMA 200 (33.224.0101[13]) - ABS SYSTEM - PNEUMATIC TRAILER BRAKE (UK) - COUPLERS (VAR. 743967) (33) - BRAKES & CONTROLS

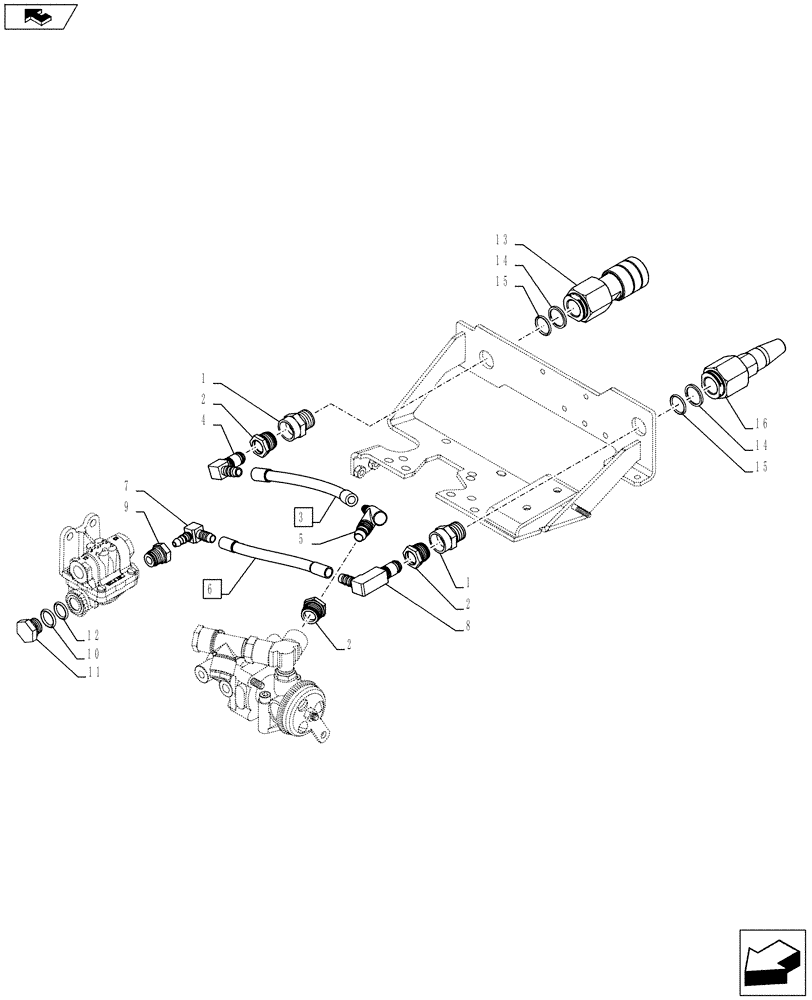

Схема запчастей Case IH PUMA 200 - (33.224.0101[13]) - ABS SYSTEM - PNEUMATIC TRAILER BRAKE (UK) - COUPLERS (VAR. 743967) (33) - BRAKES & CONTROLS
4
1
5
9
15
1
10
8
16
12
6
home
13
14
2
3
11
2
2
7
14
15

Артикул

Название

Примечание

Количество

1

87679177

ADAPTER

2шт.

2

82034157

ADAPTER

3шт.

3

84181248

FLEXIBLE HOSE

ASSY, Contains Ref. 4, 5

1шт.

4

82038479

90 ELBOW,NG12 x 12mm D

1шт.

5

87642190

HYD CONNECTOR

1шт.

6

84157670

FLEXIBLE HOSE,12mm ID x 164mm, MAT 3012

ASSY, Contains Ref. 7, 8

1шт.

7

87588080

90 ELBOW,NG8 x 12mm D

1шт.

8

84157694

90 ELBOW

1шт.

9

87588079

HYD CONNECTOR,M16 x 1.5

1шт.

10

86010343

WASHER,Backing, 16.10mm, 19.50mm ID x 22.00mm OD x 2.60mm

1шт.

11

84157695

PLUG,Hex, M16 x 1.5 x 17mm L

1шт.

12

87392491

O-RING,2.5mm Thk x 14mm ID

1шт.

13

87679175

PUSH-PULL COUPLING

1шт.

14

87679173

BACK-UP RING,22.10mm, 25.80mm ID x 27.00mm OD x 2.50mm

2шт.

15

87679174

O-RING,2.4mm Thk x 20.3mm ID, 70 Duro

2шт.

16

87679176

PUSH-PULL COUPLING

1шт.

Выбрано товаров: 16
