Запчасти Case IH PUMA 200 (33.220.0203[02]) - ABS SYSTEM - HYDRAULIC TRAILER BRAKE (ITALY) - BRAKING SYSTEM (VAR.743980 / 720418) (33) - BRAKES & CONTROLS

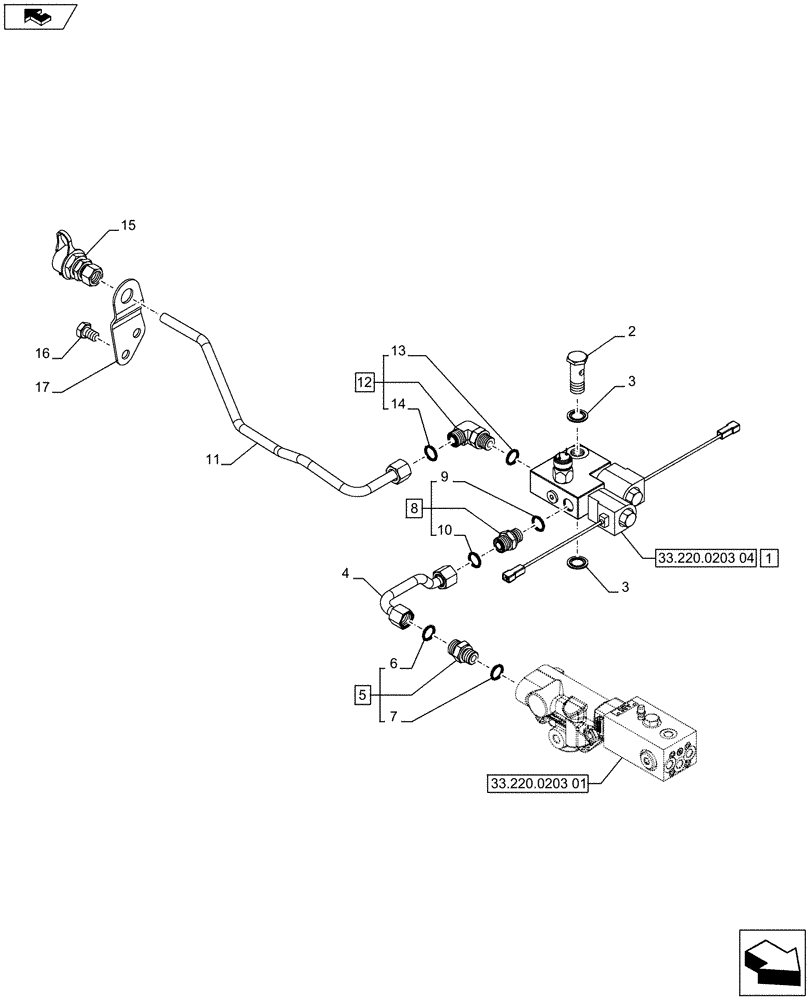

Схема запчастей Case IH PUMA 200 - (33.220.0203[02]) - ABS SYSTEM - HYDRAULIC TRAILER BRAKE (ITALY) - BRAKING SYSTEM (VAR.743980 / 720418) (33) - BRAKES & CONTROLS
8
4
1
5
home
33.220.0203 01
9
3
7
16
17
12
11
33.220.0203 04
10
3
15
14
2
13
6

Артикул

Название

Примечание

Количество

1

84177628

MANIFOLD

ASSY

1шт.

2

5197769

BANJO BOLT,M18 x 1.5 x 49mm

1шт.

3

5186176

SEALING WASHER,15.80mm ID x 26.92mm OD x 1.50mm, Steel, Zinc

2шт.

4

87608337

PIPE

to Italy Block

1шт.

5

86579676

HYD CONNECTOR,13/16" - 16 ORFS x M18 x 1.5 ORB

1шт.

6

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

7

86598101

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.

8

5194065

HYD CONNECTOR,M18 x 1.5 x 36mm

1шт.

9

14437985

O-RING,15.3mm ID x 2.4mm

1шт.

10

5185511

O-RING,1.78mm Thk x 12.42mm ID, 85 Duro

1шт.

11

84554422

HYD TUBE

1шт.

12

5185052

90 ELBOW,13/16"-16 x M18 x 1.5

1шт.

13

14437985

O-RING,15.3mm ID x 2.4mm

1шт.

14

5185511

O-RING,1.78mm Thk x 12.42mm ID, 85 Duro

1шт.

15

44015354

QUICK MALE COUPLING

1шт.

16

15540221

BOLT,Hex, M12 x 1.25 x 20mm, Cl 8.8, Full Thd

2шт.

17

5196322

BRACKET

1шт.

Выбрано товаров: 17
