(33.204.0201[01 ]) - 4WD FRONT AXLE WITH ACTIVE SUSPENSION AND BRAKES - BRAKE PIPES - C7090 (VAR.728212)

Запчасти Case IH PUMA 200 (33.204.0201[01 ]) - 4WD FRONT AXLE WITH ACTIVE SUSPENSION AND BRAKES - BRAKE PIPES - C7090 (VAR.728212) (33) - BRAKES & CONTROLS

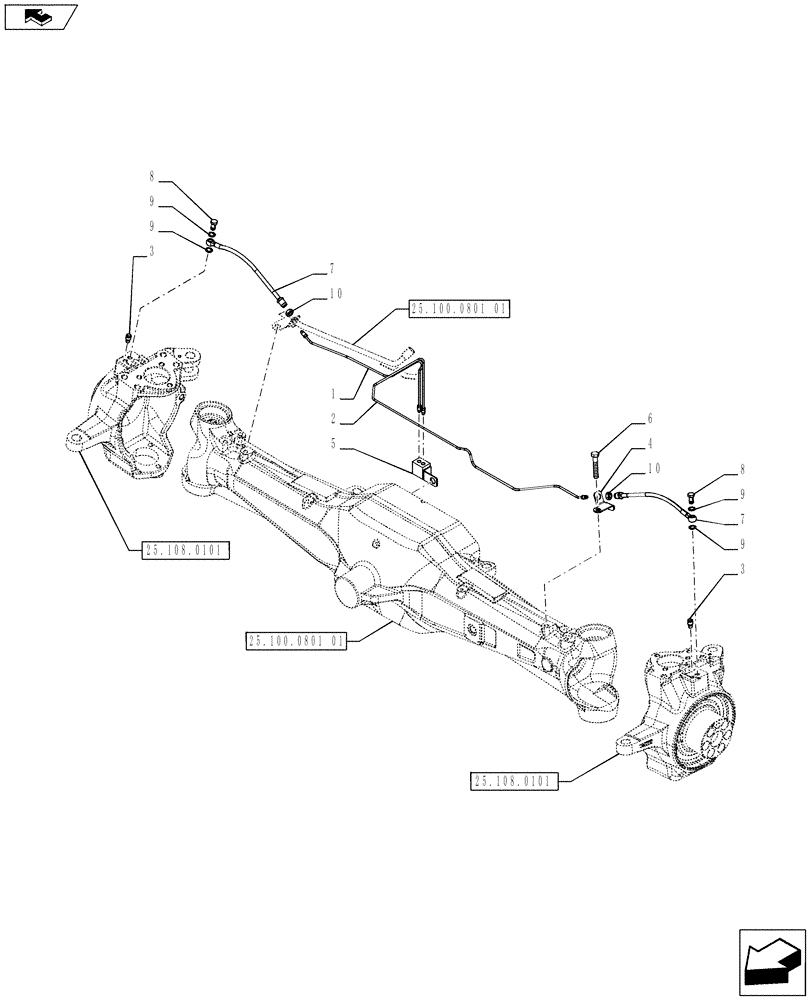

Схема запчастей Case IH PUMA 200 - (33.204.0201[01 ]) - 4WD FRONT AXLE WITH ACTIVE SUSPENSION AND BRAKES - BRAKE PIPES - C7090 (VAR.728212) (33) - BRAKES & CONTROLS
3
3
8
10
1
5
9
7
2
8
6
9
7
9
home
25.100.0801 01
25.108.0101
25.100.0801 01
25.108.0101
9
10
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87592861

RIGID TUBE,4.76 mm ID

RH

1шт.

2

87730130

RIGID TUBE

LH

1шт.

3

13413290

BREATHER

2шт.

4

87592752

BRACKET

LH

1шт.

5

87333539

SUPPORT

1шт.

6

15540324

SCREW,Hex, M12 x 1.25 x 25mm, Cl 8.8, Full Thd

1шт.

7

87655385

FLEXIBLE HOSE

2шт.

8

5155703

BANJO BOLT,M12 x 1.25 x 22mm

M12 x 1.25 x 22

2шт.

9

87356828

SEALING WASHER,12.00mm ID x 20.00mm OD x 1.50mm

4шт.

10

10718111

THIN NUT,Thin, M16 x1.00mm, 8.00mm High, Cl 04

2шт.
