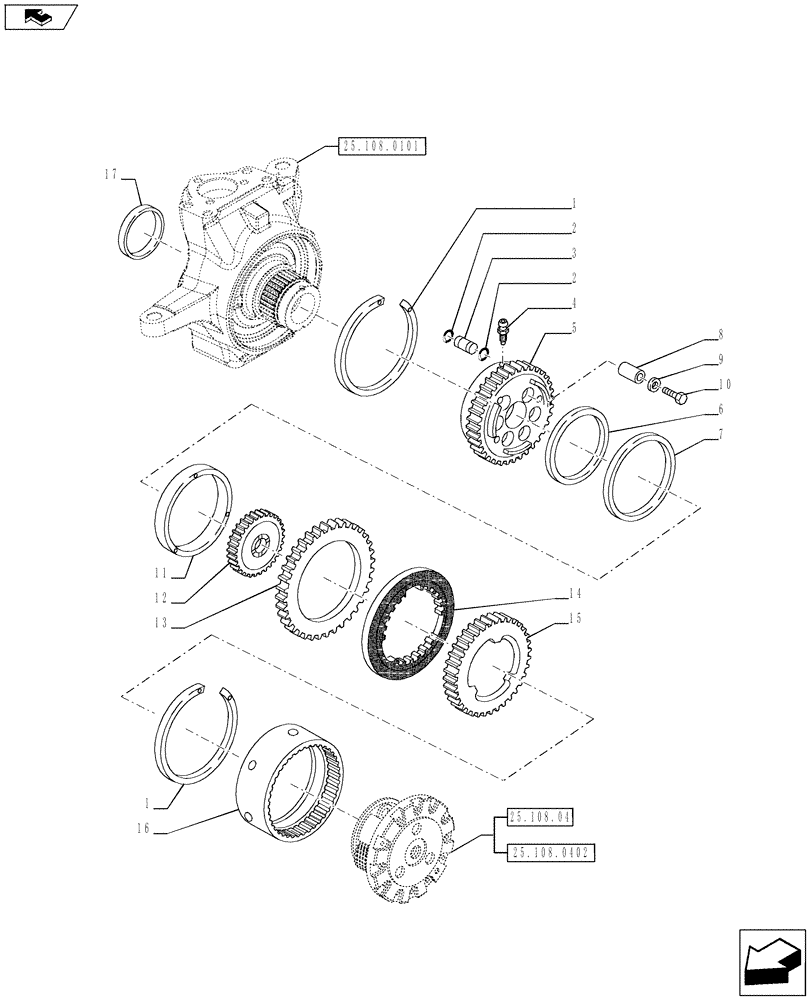

Запчасти Case IH PUMA 200 (33.204.01[01A]) - FRONT AXLE WITH BRAKES - BRAKE GEARS - D7090 (VAR.728195-743963) (33) - BRAKES & CONTROLS

1

5178857

CIRCLIP

1шт.

2

14456980

O-RING,10.77mm ID x 2.62mm

2шт.

3

5173504

PAWL,16mm OD x 25mm L

1шт.

4

5153030

BLEED SCREW,Bleeder, Hex, M8 x 1.25 x 25mm

1шт.

5

5181994

HOUSING

1шт.

6

5181566

SEAL,198.6mm ID x 205.4mm OD x 3.4mm Thk

198.6 x 205.4 x 3.4

1шт.

7

5178850

PISTON RING,Square, 3.4mm Thk x 229.6mm ID, 80 Duro

229.6 x 236.4 x 3.4

1шт.

8

5179560

BUSHING,16.5mm ID x 27mm OD x 27.8mm L

6шт.

9

11200274

BELLEVILLE WASHER,M16 Bolt Size x 34mm OD x 4.4mm Thk

6шт.

10

16334430

BOLT,Hex, M16 x 1.5 x 60mm, Cl 10.9

6шт.

11

5181567

RING

1шт.

12

5182010

HUB,14T Internal / 60T External

1шт.

13

5178813

BRAKE DISC,191mm ID x 266.5mm OD x 4.95mm Thk

1шт.

14

5178903

BRAKE DISC,175mm ID x 247mm OD x 4.5mm Thk

1шт.

15

5181929

BRAKE DISC,182mm ID x 266.5mm OD x 18mm Thk

1шт.

16

5181933

RING GEAR

1шт.

17

84166643

SEAL,45mm ID x 65mm OD x 27mm Thk

1шт.
