Запчасти Case IH PUMA 200 (31.114.01[03]) - POWER TAKE-OFF 1000E/1000 RPM - COVER AND ENGAGEMENT (31) - IMPLEMENT POWER TAKE OFF

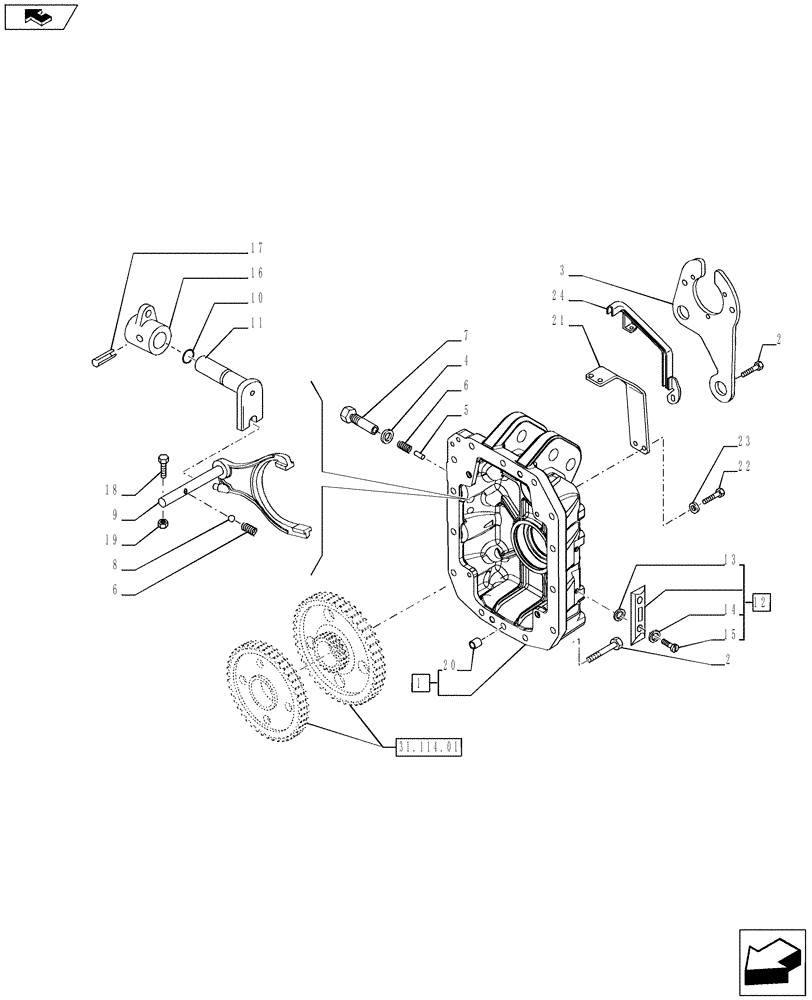

Схема запчастей Case IH PUMA 200 - (31.114.01[03]) - POWER TAKE-OFF 1000E/1000 RPM - COVER AND ENGAGEMENT (31) - IMPLEMENT POWER TAKE OFF
8
12
2
2
18
9
19
7
15
23
11
21
3
20
4
10
6
31.114.01
home
1
22
17
13
24
5
16
6
14

Артикул

Название

Примечание

Количество

1

87558757

HOUSING

Contains Ref. 20

1шт.

2

15981124

BOLT,Hex, M16 x 1.5 x 60mm, Cl 8.8

12шт.

2

15981224

BOLT,Hex, M16 x 1.5 x 65mm, Cl 8.8

2шт.

3

87692482

BRACKET

Trailer Socket Support

1шт.

4

10259960

SEAL,Rectangular, 18.30mm ID x 24.00mm OD x 1.50mm, Copper

1шт.

5

5159011

PIN,10mm OD x 20mm Thk

1шт.

6

4994342

SPRING,8mm OD x 30mm OAL

2шт.

7

5182673

CASE

1шт.

8

20063390

BALL,8.73mm OD

1шт.

9

87592700

CLUTCH FORK

1шт.

10

14457280

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

1шт.

11

5182672

PIN

1шт.

12

87356021

LEVEL GAUGE

Contains Ref. 13-15

1шт.

13

87349969

RUBBER SEAL

2шт.

14

47130060

O-RING

2шт.

15

47130059

SCREW,Pan HD, M12 x 41mm

2шт.

16

5182658

LEVER

1шт.

17

14607270

LOCK PIN,M8 x 40, Slotted

1шт.

18

10903234

BOLT,Hex, M6 x 40mm, Cl 10.9

1шт.

19

12574211

NUT,M6 x 1, Cl 8

1шт.

20

44908048

BUSHING,16mm OD x 14mm L

2шт.

21

87673946

PLATE

1шт.

22

14306424

HEX SOC SCREW,M8 x 1.25 x 25mm, Cl 8.8, Full Thd

4шт.

23

10569374

LOCK WASHER,M8

4шт.

24

84250687

GUARD

1шт.

Выбрано товаров: 25
