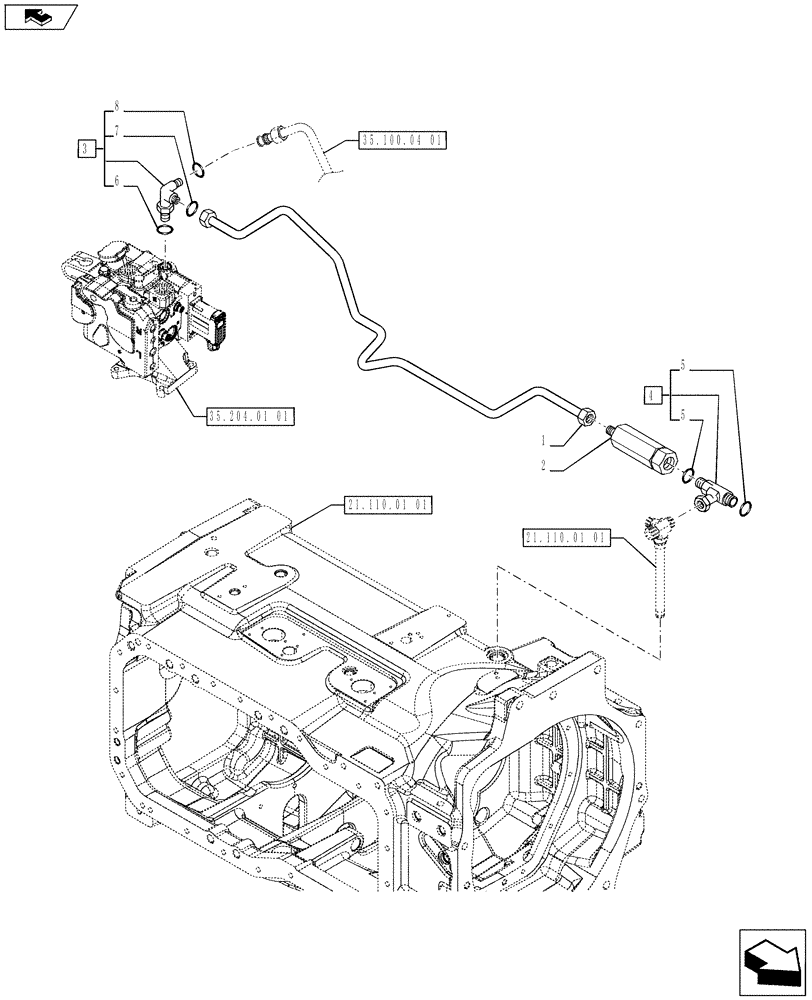

Запчасти Case IH PUMA 200 (21.102.02) - "HI-FLOW" PFC PUMP WITH EDC (150 L/MIN) - PIPES (VAR.729004 / 743616) (21) - TRANSMISSION

1

84237328

TUBE

, Serial Range: -C7089

1шт.

1

84546905

PRESSURE PIPE

, Serial Range: D7089-C7100

1шт.

1

84579658

TUBE

, Serial Range: D7100-C7100

1шт.

1

47397033

TUBE

, Start Serial: D7101

1шт.

2

84197114

FILTER

1шт.

3

87519151

HYD CONNECTOR,1"3/16-12 x M27 x 2 x 1"14

Contains Ref. 6-8

1шт.

4

5197110

TEE,1"-14 UNS

Contains Ref. 5

1шт.

5

5185512

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

2шт.

6

14438185

O-RING,24mm ID x 3mm

1шт.

7

5185512

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

8

5185513

O-RING,1.78mm Thk x 18.77mm ID, 85 Duro

1шт.
