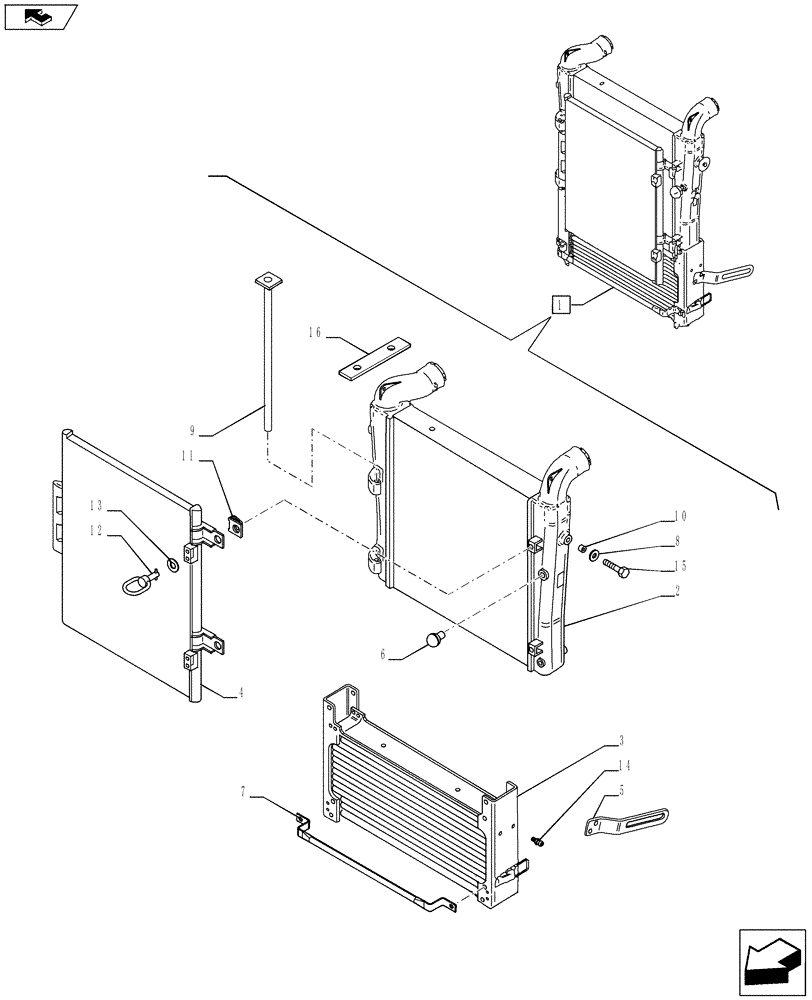

Запчасти Case IH PUMA 200 (10.406.01[01]) - INTERCOOLER, TRANSM. OIL COOLER AND AIR CONDITIONING CONDENSER - BREAKDOWN - C7127 (10) - ENGINE

1

84249175

COOLER ASSY.

Contains Ref. 2-16

1шт.

2

87739453

COOLER

Intercooler

1шт.

3

84249211

COOLER

Transmission Oil Cooler

1шт.

4

84249273

CONDENSER

Air Conditioning Condenser

1шт.

5

84250073

BRACKET

2шт.

6

87620057

KNOB

1шт.

7

84137570

HANDLE

1шт.

8

84137491

WASHER,50.8mm ID

2шт.

9

87658579

PIN

1шт.

10

87385194

ROLLER BEARING,8mm ID x 16mm OD x 5mm W

2шт.

11

87734730

SPRING CLIP

2шт.

12

87734728

STUD,5mm OD x 56mm L

2шт.

13

84137543

SNAP RING

2шт.

14

84193371

STUD,M5

M5

4шт.

15

84137544

BOLT,Countersunk , M8 x 20mm

2шт.

16

84243371

1шт.
