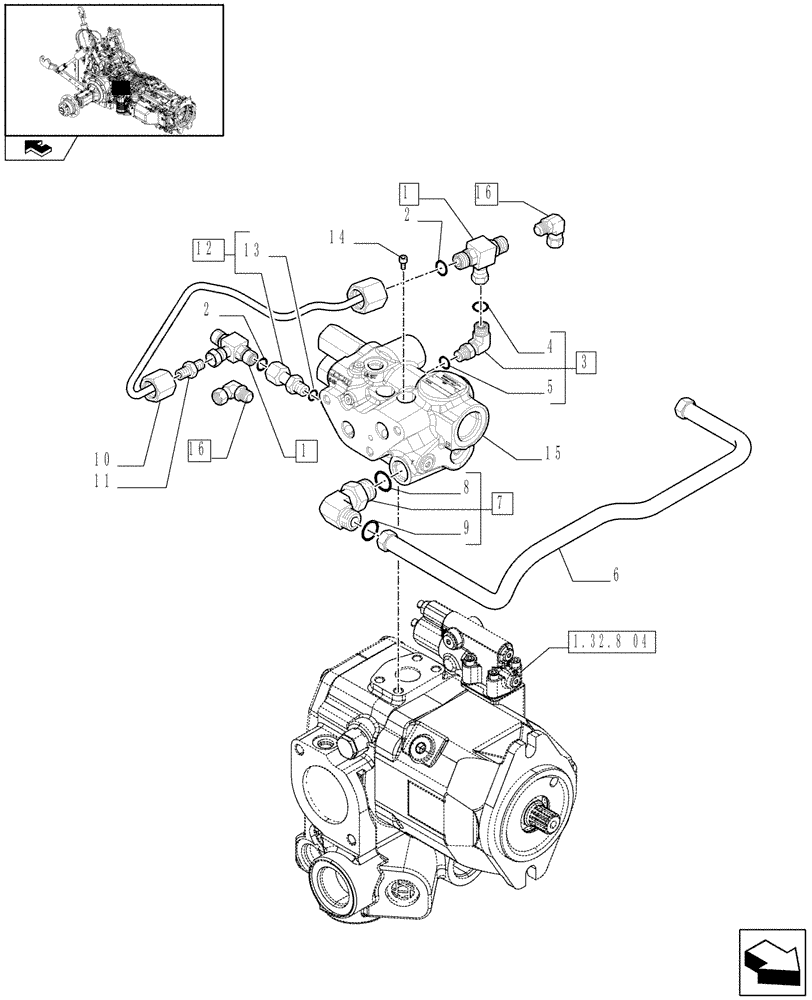

Запчасти Case IH PUMA 195 (1.32.8[05A]) - HYDRAULIC PUMP - PRIORITY VALVE - D6846 (03) - TRANSMISSION

1

84227184

OPERATOR MANUAL FR

Incl. 2, Serial Range: -C6848

2шт.

2

81844850

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

2шт.

3

47126659

ELBOW,90 Deg, 9/16-18 ORFS x 7/16-20 ORB

1шт.

4

5185509

O-RING,1.78mm Thk x 7.66mm ID, 85 Duro

1шт.

5

5185507

O-RING,8.92mm ID x 1.83mm Width

1шт.

6

87608316

HYD TUBE

1шт.

7

5185562

ELBOW

1шт.

8

14437985

O-RING,15.3mm ID x 2.4mm

1шт.

9

5185512

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

10

87608187

HYD TUBE

1шт.

11

87661868

HYD CONNECTOR,M14 x 1.5 x 29.5mm L

1шт.

12

84182082

HYD CONNECTOR,9/16"-18 x M12 x 1.5 ORB

1шт.

13

14437685

O-RING,9.30mm ID x 2.40mm

1шт.

14

14420321

HEX SOC SCREW,M10 x 35mm, Cl 8.8

4шт.

15

84141056

CONTROL VALVE

1шт.

16

84354806

HYD CONNECTOR,9/16"-18 ORFS x 9/16"-18

Incl. 2, Start Serial: D6848

2шт.
