Запчасти Case IH PUMA 195 (1.32.8[02]) - HYDRAULIC PUMP - OIL FILTER - C6475 (03) - TRANSMISSION

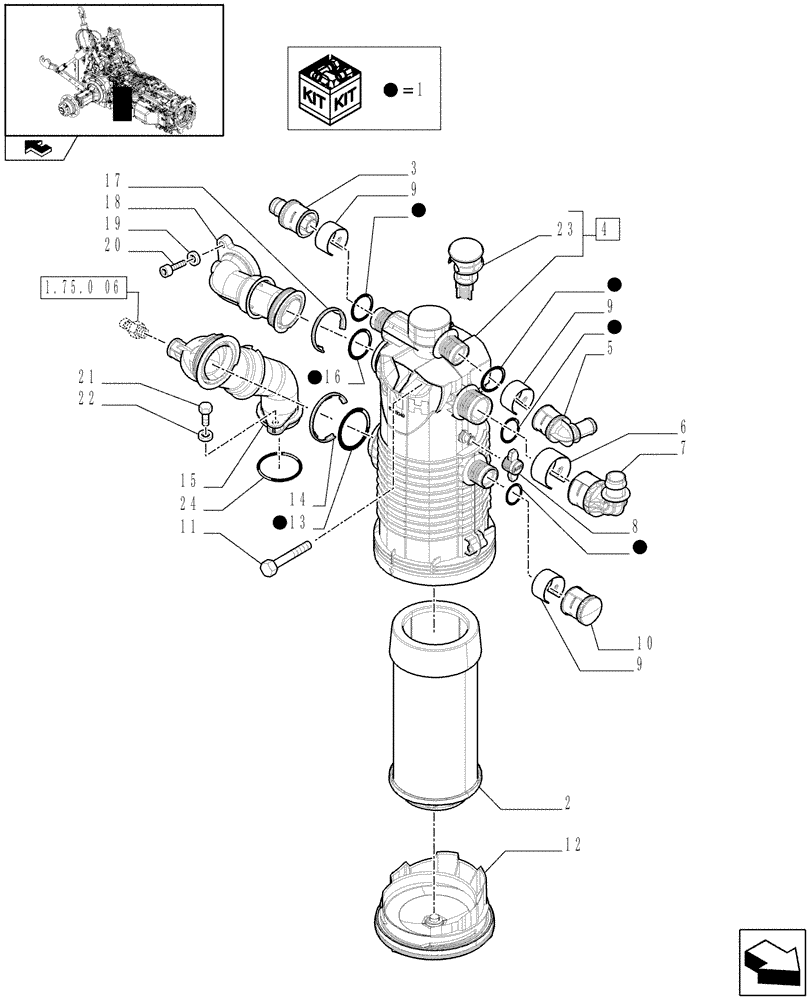

Схема запчастей Case IH PUMA 195 - (1.32.8[02]) - HYDRAULIC PUMP - OIL FILTER - C6475 (03) - TRANSMISSION
9
24
9
home
1.75.0 06
2
1
4
10
7
1
3
1
1
12
19
1
5
11
20
18
9
15
8
1
23
1
13
21
14
6
16
22
17
1

Артикул

Название

Примечание

Количество

1

87705156

SEAL KIT

1шт.

2

47617638

FILTER

HYDRAULIC FILTER

1шт.

Include Cover Gasket

1шт.

3

87381694

HYD CONNECTOR,21mm D x 22mm D

1шт.

4

87614898

FILTER ASSY

, Serial Range: -C6685

1шт.

4

84223043

FILTER ASSY

Incl. 8, 23, Start Serial: D6685

1шт.

5

87608358

ELBOW,90 Deg, 22mm ID

1шт.

6

87330755

STOP DEVICE

1шт.

7

87614900

ELBOW,57mm OD x 32.9/27mm ID x 88.3mm

1шт.

8

87705160

ARRESTER

1шт.

9

84121298

SNAP RING,30mm Thk, Ext

3шт.

10

87330798

PLUG,46mm ID

1шт.

11

15972421

SCREW,Hex, M10 x 1.25 x 130mm, Cl 8.8

M10 x 1.25 x 130

2шт.

12

87705159

FILTER COVER

1шт.

13

87381699

O-RING,63.50mm ID x 3.53mm

1шт.

14

87381695

CIRCLIP,8mm Thk

1шт.

15

87395840

TUBE

1шт.

16

87381702

O-RING,53.5mm ID x 2.387mm OD x 3.53mm

1шт.

17

87381696

SNAP RING,8mm Thk, Ext

1шт.

18

87614899

ELBOW

1шт.

19

14496701

WASHER,13.00mm ID x 24.00mm OD x 2.50mm, CST, ZND

2шт.

20

14331121

HEX SOC SCREW,M12 x 1.25 x 30mm, Cl 8.8, Full Thd

2шт.

21

87687675

BOLT,M8 x 1.25 x 32mm, Cl 8.8

8 x 1.25

1шт.

22

14496607

WASHER,10.5mm ID x 21mm OD x 2mm Thk

10.5 x 21 x 2

1шт.

23

84220284

CHECK VALVE

Check Valve 3 bar, Start Serial: D6685

1шт.

24

87705158

GASKET KIT

1шт.

Выбрано товаров: 26
