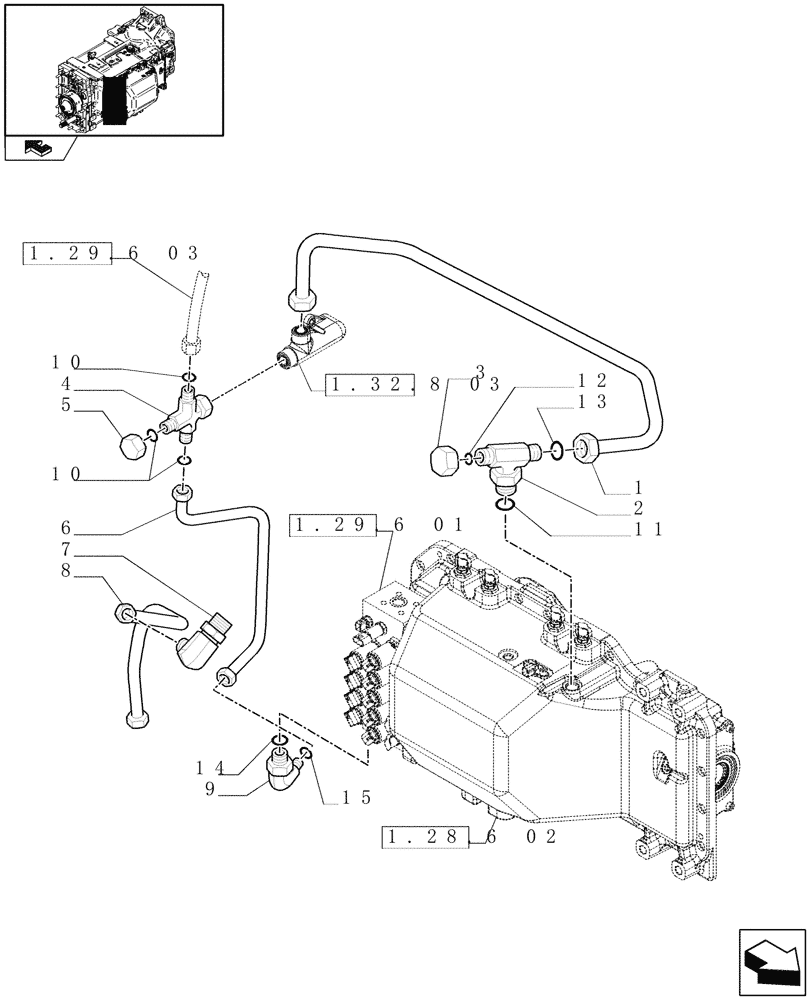

Запчасти Case IH PUMA 195 (1.29.6[02]) - HYDRAULIC TRASMISSION CONTROL - PIPES (03) - TRANSMISSION

1

84150122

HYD TUBE,20 mm OD

BOOST

1шт.

2

87687885

HYD CONNECTOR

Incl.11-13

1шт.

3

9625546

CAP,11/16" - 16 ORFS

1шт.

4

87608130

HYD CONNECTOR

Incl.10

1шт.

5

9840576

CAP,1" - 14 ORFS

1шт.

6

87718486

HYD TUBE

To Solenoid Valve Manifold

1шт.

7

87722754

HYD CONNECTOR,M27 x 2

1шт.

8

87722757

HYD TUBE

By Pass

1шт.

9

86579694

ELBOW,90 Degree, 1"-14 ORFS x M22 x 1.5 ORB

Incl.14, 15

1шт.

10

5185512

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

3шт.

11

86598102

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

1шт.

12

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

13

9991976

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

14

86598102

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

1шт.

15

9992069

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.
