Запчасти Case IH PUMA 195 (1.82.713/02[01]) - (VAR.418) HYDRAULIC TRAILER BRAKE (ITALY) - BRAKING SYSTEM (07) - HYDRAULIC SYSTEM

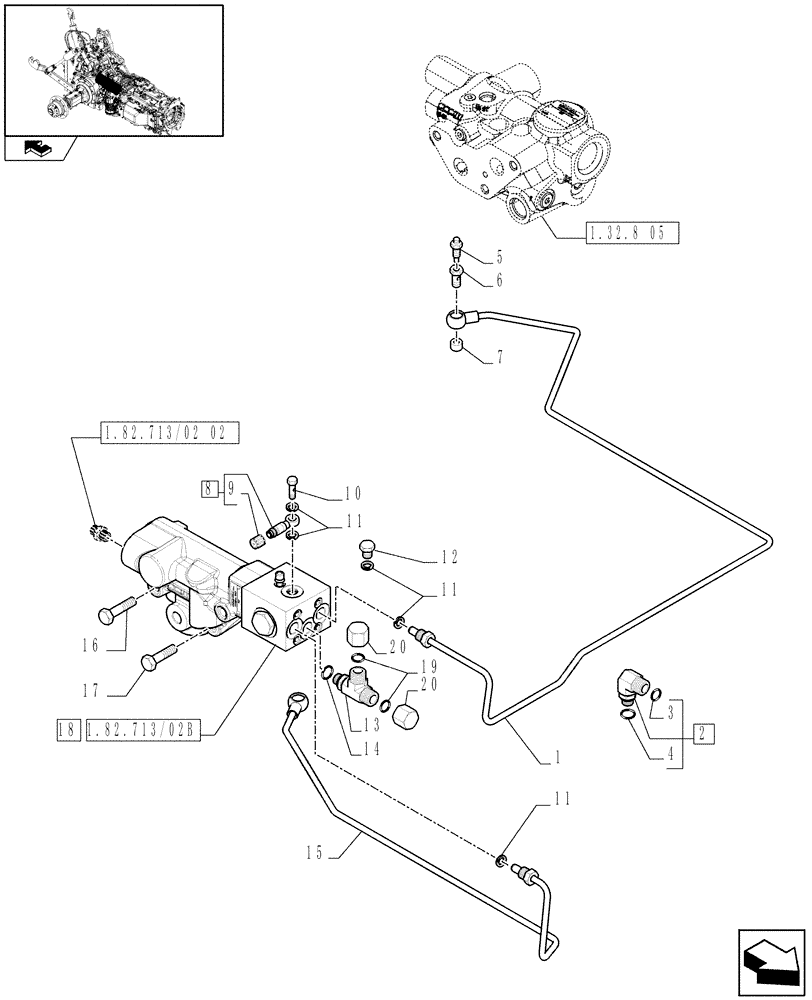

Схема запчастей Case IH PUMA 195 - (1.82.713/02[01]) - (VAR.418) HYDRAULIC TRAILER BRAKE (ITALY) - BRAKING SYSTEM (07) - HYDRAULIC SYSTEM
4
6
1
11
11
home
1.82.713/02b
1.82.713/02 02
1.32.8 05
18
14
12
3
16
17
19
5
2
10
13
15
11
7
20
8
20
9

Артикул

Название

Примечание

Количество

1

87718500

HYD TUBE

LH Brake, Serial Range: -C6802

1шт.

1

84326329

PIPE

, Start Serial: D6802

1шт.

2

5185562

ELBOW

1шт.

3

14437985

O-RING,15.3mm ID x 2.4mm

1шт.

4

5185512

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

5

5153030

BLEED SCREW,Bleeder, Hex, M8 x 1.25 x 25mm

2шт.

6

5155679

BLEEDER VALVE,M12 x 1.25 x 27mm

2шт.

7

5155678

GASKET,12.2mm ID x 17mm OD x 5mm Thk

2шт.

8

82030175

BANJO FITTING,M8 x 1 x 53mm

1шт.

9

44995074

PLUG,M8 x 1.0

1шт.

10

5121685

BANJO BOLT,M12 x 1.5 x 23mm

1шт.

11

5183780

SEALING WASHER,9.73mm ID x 18mm OD x 1.5mm Thk

5шт.

12

47131496

PLUG,Hex, M12 x 1

M12 x 1

1шт.

13

87521154

HYD CONNECTOR,M12 x 1, ORB 11/16"-16 ORFS

Incl.14, 19

1шт.

14

14437685

O-RING,9.30mm ID x 2.40mm

1шт.

15

87608326

BRAKE LINE

RH Brake

1шт.

16

14308921

HEX SOC SCREW,M8 x 60mm, Cl 8.8

M8 x 60

2шт.

17

14306721

HEX SOC SCREW,M8 x 48mm, Cl 8.8

1шт.

18

87607363

BRAKE VALVE

ASSY

1шт.

Pilot Piston Diam.16MM

1шт.

18

87498979

BRAKE VALVE

ASSY

1шт.

Pilot Piston Diam.22MM

1шт.

19

5185510

O-RING,1.78mm Thk x 9.25mm ID, 85 Duro

2шт.

20

87668376

CAP,9/16"-18 Inch THD

2шт.

Выбрано товаров: 24
